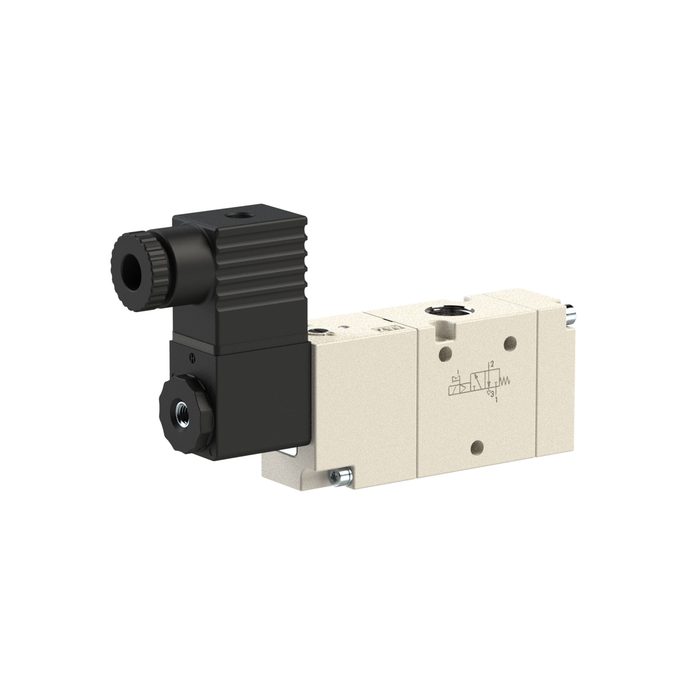

RIEGLER 3/2-way valve, elpn., ext. control, mono, G 1/2, NC, 24 V DC
Typennummer: 517.32.12.E.NC.24D
EAN: 4047322789523
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
147226EAN :
4047322789523Category :
Valves Electropneumatically OperatedWeight :
0.01 kgFlow meter "FLUX", BG 4, 0?15000 Nl/min, G 2, p1 = 0?10 bar, T = 0?50 °C, 12?24 V DC, 0?10 V/4?20 mA
| Execution | electropneumatic |
| Control air supply | external |
| Symbol | 57 |
| Scope of delivery | with plug and coil |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow_2 | 4600 Nl/min |
| Flow_1 | 3200 Nl/min |
| Actuation | monostable |
| DN | 15 |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Tension | 24 V DC |
| Function | 3/2 NC |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Connection | G 1/2 |
| Pilot air connection | G 1/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
