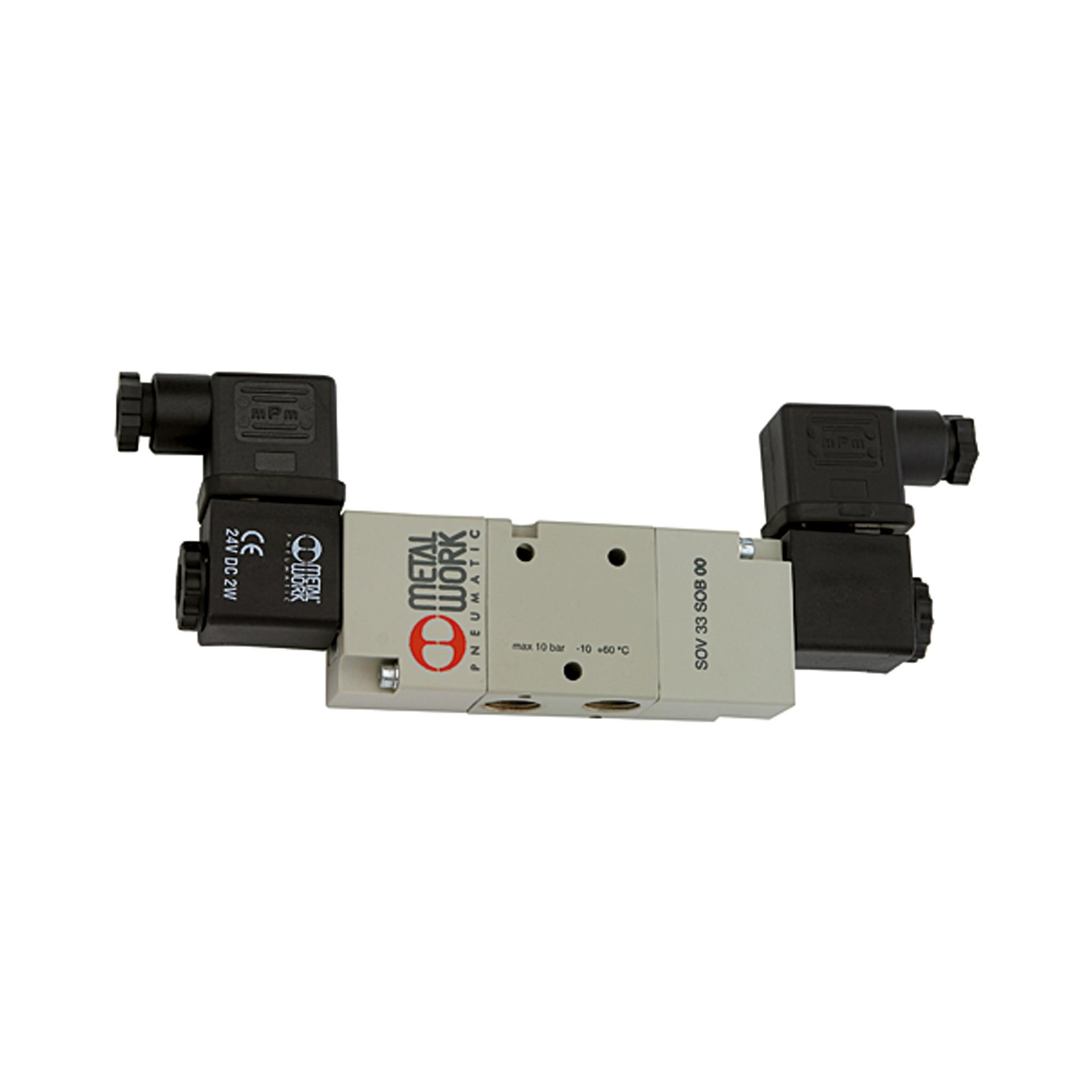

RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/4, 230 V AC

Price:

112.25 €

English (US)
  2. Shop
  3. Valves Electropneumatically Operated
  4. RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/4, 230 V AC
RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/4, 12 V DC
RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/4, 12 V DC
112.25 € 112.25 €
RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/4, 24 V AC
RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/4, 24 V AC
112.25 € 112.25 €

RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/4, 230 V AC

https://www.filcom-technik.de/web/image/product.template/284183/image_1920?unique=3026038

Typennummer: 517.52.14.E.B.230A

112.25 € 112.25 EUR 112.25 € VAT Included

131.01 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

147288

EAN :

4047322790147

Category :

Valves Electropneumatically Operated

Weight :

0.01 kg

5/2-way valve, electropneumatic, ext. control air, bistable, G 1/4, 230 V AC, 50/60 Hz, p= vacuum?10 bar, control pressure 2.5?10 bar, aluminum

Execution electropneumatic
Control air supply external
Tension 230 V AC
Symbol 60
Scope of delivery with plug and coil
Frequency 50/60 Hz
Series Series 70
Flow rate measurement 1 Flow rate at 6 bar and ∆p 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
Flow 2 1100 Nl/min
Flow 1 750 Nl/min
Actuation bistable
DN 8
Operating pressure min. -0.99 bar
Ambient temperature min. -10 °C
Medium temperature min. -10 °C
Function 5/2
Control pressure max. 10 bar
Max. operating pressure 10 bar
Control pressure min. 2.5 bar
Ambient temperature max. 50 °C
Medium temperature max. 60 °C
Connection G 1/4
Pilot air connection G 1/8
Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Class name PLUS
Manual override resting

Maintenance, wear and spare parts

Product Price

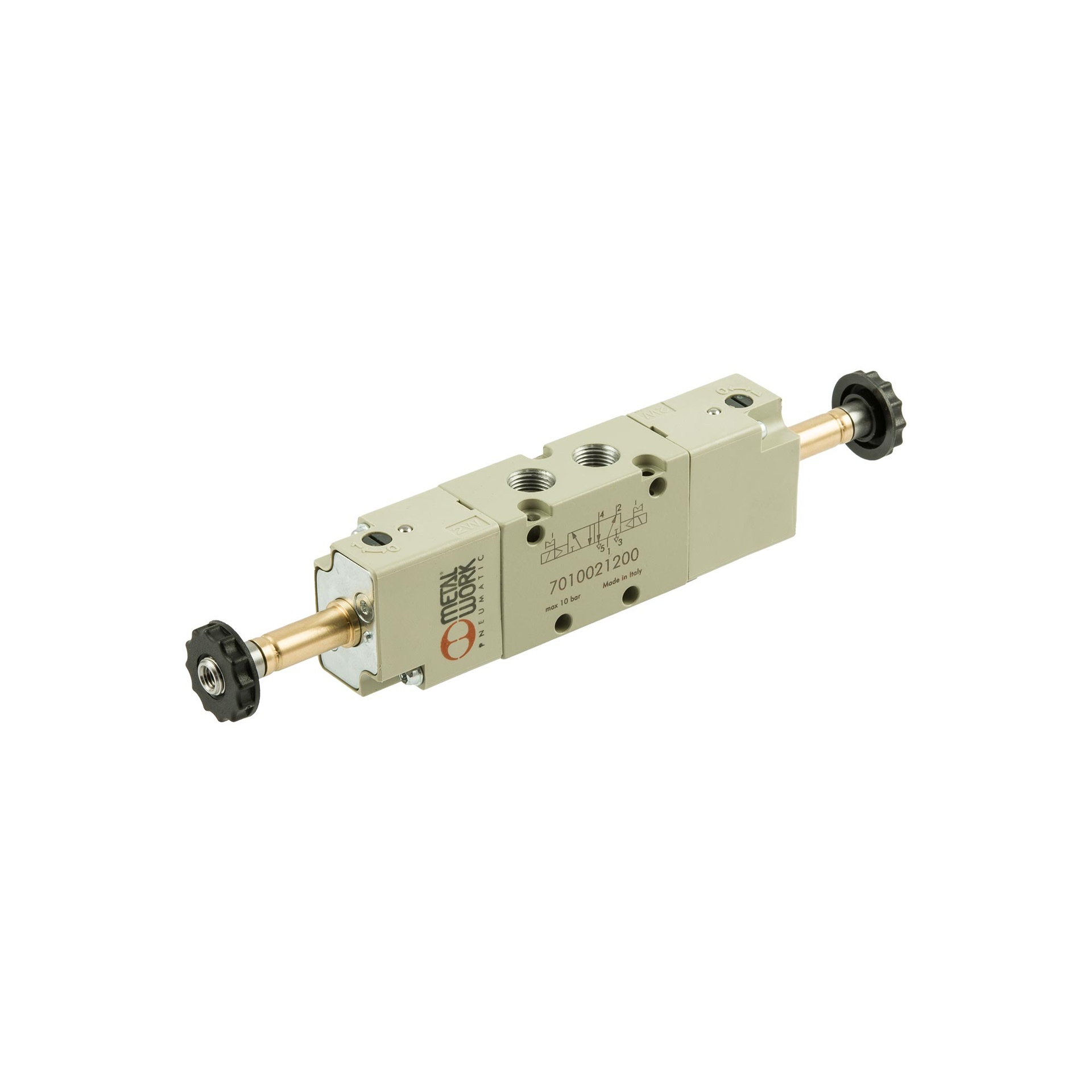

[147126] RIEGLER 5/2-way valve, electropneumatic, ext. control air, bistable, G 1/4

Typennummer: 7020021600

 100.91 €
[117313] RIEGLER Device plug, 22 mm, type B

Type number: 1920.9P

 1.48 €
[118630] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 3.5 VA

Type number: 400-514-17

 9.87 €
