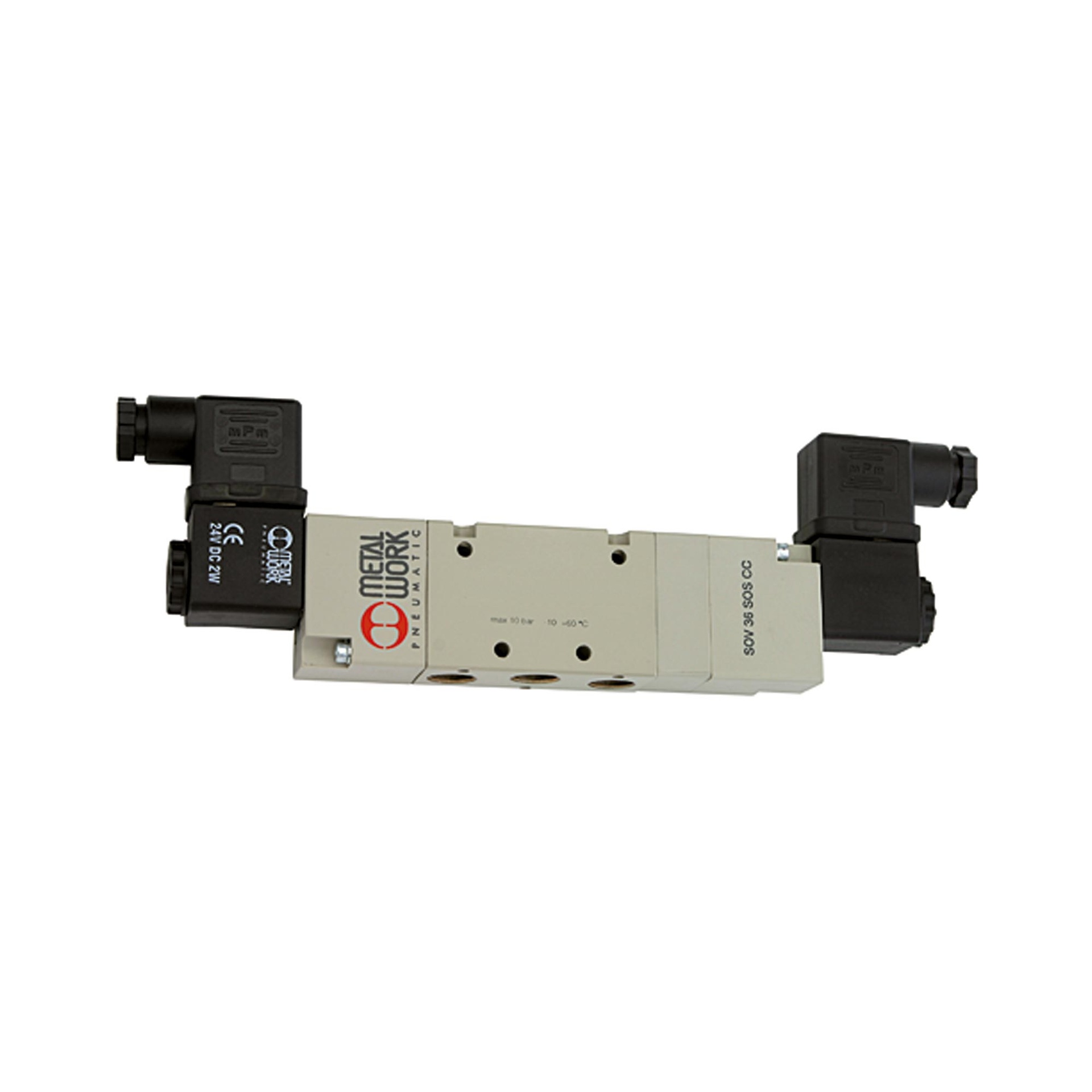

RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/2, 24VAC
Typennummer: 517.53.12.E.OC.24A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
147338EAN :
4047322790642Category :
Valves Electropneumatically OperatedWeight :
0.01 kgRIEGLER 5/3-way valve for pneumatic control, max. 10 bar, G 1/2 - Type 517.53.12.E.OC.24A
The RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/2, 24VAC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is -0.99 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Operating voltage 24 V AC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Execution | electropneumatic |
| Control air supply | external |
| Tension | 24 V AC |
| Symbol | 62 |
| Scope of delivery | with plug and coil |
| Frequency | 50/60 Hz |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow 2 | 4600 Nl/min |
| Flow 1 | 3200 Nl/min |
| Function | 5/3 |
| Actuation | Center vented |
| DN | 15 |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Connection | G 1/2 |
| Pilot air connection | G 1/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
