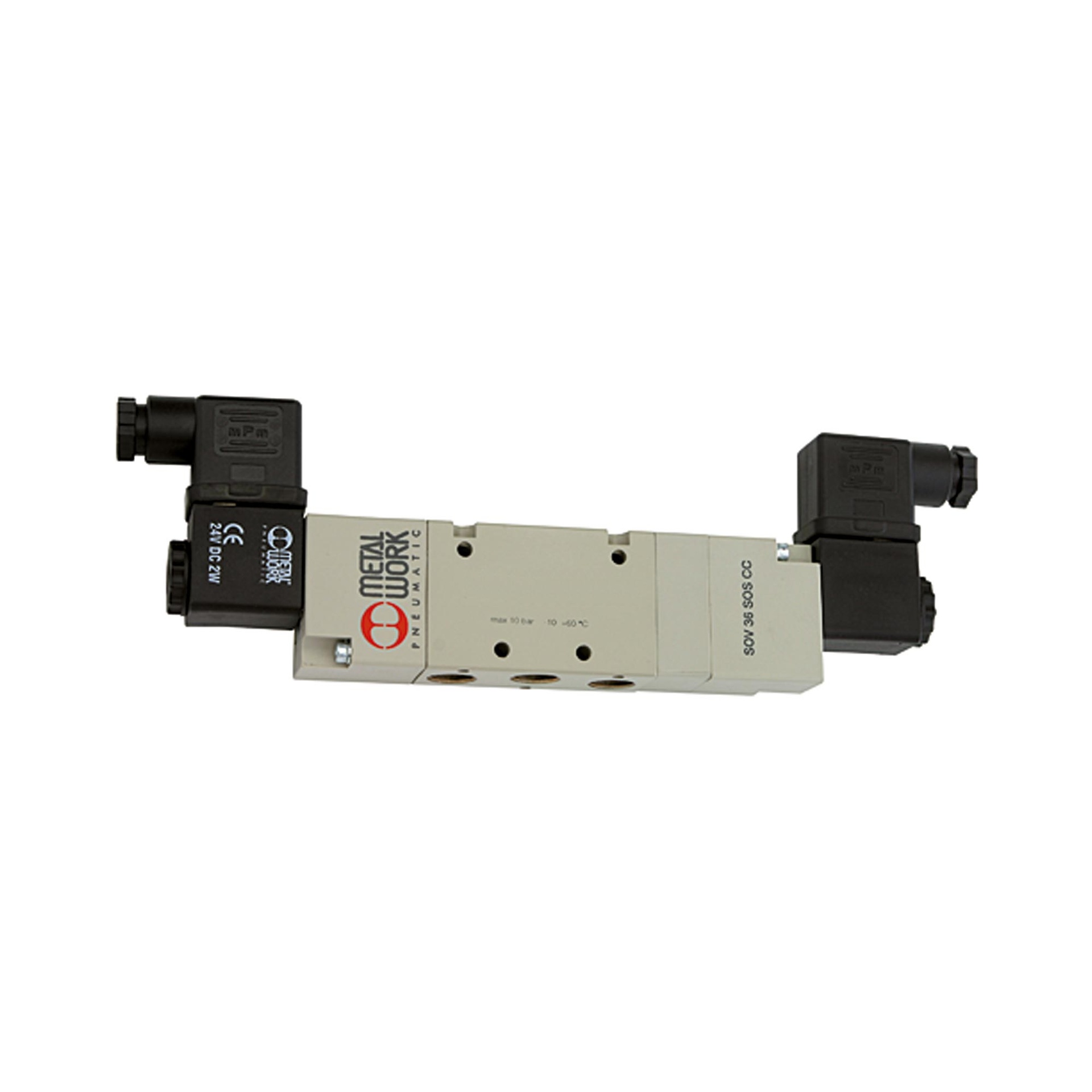

RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 3/8, 24 VDC
Typennummer: 517.53.38.E.PC.24D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
147345EAN :
4047322790710Category :
Valves Electropneumatically OperatedWeight :
0.01 kgRIEGLER 5/3-way valve for pneumatic control, max. 10 bar, G 3/8 - Type 517.53.38.E.PC.24D
The RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 3/8, 24 VDC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is -0.99 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Operating voltage 24 V DC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Execution | electropneumatic |
| DN | 133 |
| Control air supply | external |
| Symbol | 63 |
| Scope of delivery | with plug and coil |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow 2 | 2150 Nl/min |
| Flow 1 | 1560 Nl/min |
| Function | 5/3 |
| Actuation | Center ventilated |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Tension | 24 V DC |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Pilot air connection | G 1/8 |
| Connection | G 3/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

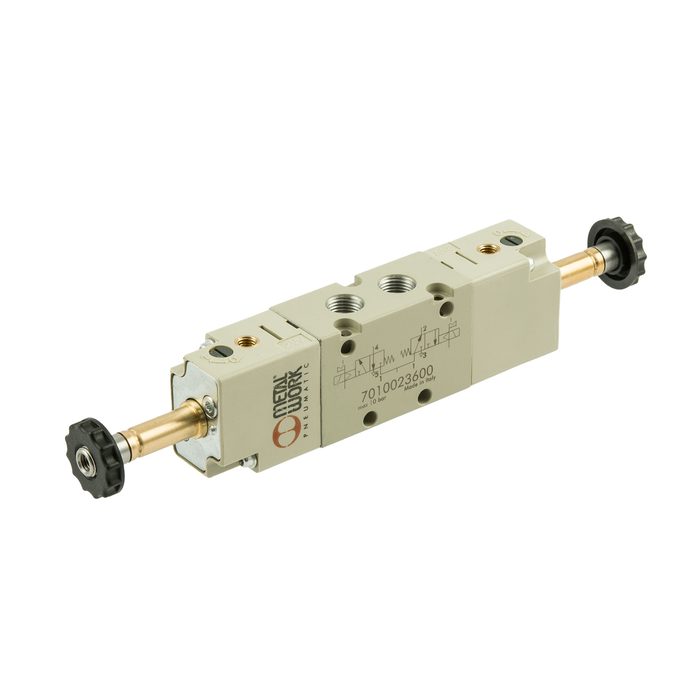

![[147139] RIEGLER 5/3-way valve, electropneumatic, ext. control valve, center vented, G 3/8](/web/image/product.template/284081/image_128/%5B147139%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20ext.%20control%20valve%2C%20center%20vented%2C%20G%203-8?unique=af284a6)
|
