RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/2, 12 VDC
Part Number: 517.53.12.E.PC.12D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
147354EAN :
4047322790802Category :
Valves Electropneumatically OperatedWeight :
0.01 kgRIEGLER 5/3-way valve for pneumatic control, max. 10 bar, G 1/2 - Type 517.53.12.E.PC.12D
The RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/2, 12 VDC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is -0.99 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Operating voltage 12 V DC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Execution | electropneumatic |
| Control air supply | external |
| Symbol | 63 |
| Scope of delivery | with plug and coil |
| Series | Series 70 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow 2 | 4600 Nl/min |
| Flow 1 | 3200 Nl/min |
| Function | 5/3 |
| Actuation | Center ventilated |
| DN | 15 |
| Operating pressure min. | -0.99 bar |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control pressure max. | 10 bar |
| Max. operating pressure | 10 bar |
| Tension | 12 V DC |
| Control pressure min. | 2.5 bar |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Connection | G 1/2 |
| Pilot air connection | G 1/8 |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[147254] RIEGLER 3/2-way valve, elpn., ext. control air, bistable, G 1/2, 12 V DC](/web/image/product.template/284149/image_128/%5B147254%5D%20RIEGLER%203-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-2%2C%2012%20V%20DC?unique=4226dc8)
|
Part Number: 517.32.12.E.B.12D |
213.22 € | |
![[147234] RIEGLER 3/2-way valve, elpn., ext. control, mono, G 1/2, NC, 12 V DC](/web/image/product.template/284129/image_128/%5B147234%5D%20RIEGLER%203-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20mono%2C%20G%201-2%2C%20NC%2C%2012%20V%20DC?unique=264a9fb)
|
Part Number: 517.32.12.E.NC.12D |
174.39 € | |
![[147294] RIEGLER 5/2-way valve, elpn., ext. control air, bistable, G 1/2, 12 V DC](/web/image/product.template/284189/image_128/%5B147294%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%20air%2C%20bistable%2C%20G%201-2%2C%2012%20V%20DC?unique=3c889cc)
|
Part Number: 517.52.12.E.B.12D |
238.88 € | |
![[147274] RIEGLER 5/2-way valve, elpn., ext. control, monostable, G 1/2, 12 V DC](/web/image/product.template/284169/image_128/%5B147274%5D%20RIEGLER%205-2-way%20valve%2C%20elpn.%2C%20ext.%20control%2C%20monostable%2C%20G%201-2%2C%2012%20V%20DC?unique=ea07737)
|
Model Number: 517.52.12.E.M.12D |
199.18 € | |
![[147334] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/2, 12VDC](/web/image/product.template/284229/image_128/%5B147334%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-2%2C%2012VDC?unique=ef765f0)
|
Model Number: 517.53.12.E.OC.12D |
253.96 € | |
![[147346] RIEGLER 5/3-way valve, elpn, ext. control, center vented, G 1/2, 24 VDC](/web/image/product.template/284241/image_128/%5B147346%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20ext.%20control%2C%20center%20vented%2C%20G%201-2%2C%2024%20VDC?unique=3d028e4)
|
Part Number: 517.53.12.E.PC.24D |
253.96 € | |
![[147314] RIEGLER 5/3-way valve, elpn, external control, center closed, G 1/2, 12 VDC](/web/image/product.template/284209/image_128/%5B147314%5D%20RIEGLER%205-3-way%20valve%2C%20elpn%2C%20external%20control%2C%20center%20closed%2C%20G%201-2%2C%2012%20VDC?unique=5eee682)
|
Model Number: 517.53.12.E.CC.12D |
253.96 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[117314] RIEGLER Appliance plug with LED, 230 V, 22 mm, type B](/web/image/product.template/274840/image_128/%5B117314%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20230%20V%2C%2022%20mm%2C%20type%20B?unique=da7f3fa)
|
Type number: 1920.9PL.17 |
6.57 € | |
![[117316] RIEGLER Device plug with LED, 24 V, 22 mm, type B](/web/image/product.template/274841/image_128/%5B117316%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%2024%20V%2C%2022%20mm%2C%20type%20B?unique=13d8dfe)
|
Type number: 1920.9PL.42 |
6.57 € | |
![[117317] RIEGLER Device plug with LED, varistor 230 V, 22 mm, type B](/web/image/product.template/274842/image_128/%5B117317%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20230%20V%2C%2022%20mm%2C%20type%20B?unique=41597e2)
|
Type number: 1920.9PLV17 |
6.57 € | |
![[117318] RIEGLER Device plug with LED, varistor 24 V, 22 mm, type B](/web/image/product.template/274843/image_128/%5B117318%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%2024%20V%2C%2022%20mm%2C%20type%20B?unique=2a16143)
|
Type number: 1920.9PLV42 |
6.57 € | |
![[118628] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275044/image_128/%5B118628%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=6a147c8)
|
Type number: 400-514-01 |
10.00 € | |
![[118629] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275045/image_128/%5B118629%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=f71b96f)
|
Type number: 400-514-07 |
10.00 € | |
![[118630] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275046/image_128/%5B118630%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=bd5e844)
|
Type number: 400-514-17 |
10.00 € | |
![[118631] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 2 W](/web/image/product.template/275047/image_128/%5B118631%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%202%20W?unique=a72af14)
|
Type number: 400-514-41 |
10.00 € | |
![[118632] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V DC, 2 W](/web/image/product.template/275048/image_128/%5B118632%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20DC%2C%202%20W?unique=75e3895)
|
Type number: 400-514-42 |
10.00 € | |
![[118633] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 5 VA](/web/image/product.template/275049/image_128/%5B118633%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=a956bba)
|
Type number: 400-517-01 |
10.00 € | |
![[118634] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 5 VA](/web/image/product.template/280914/image_128/%5B118634%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=a299739)
|
Type number: 400-517-07 |
10.00 € | |
![[118635] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 5 VA](/web/image/product.template/280915/image_128/%5B118635%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=dfa8fc9)
|
Type number: 400-517-17 |
10.00 € | |
![[118637] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V DC, 5 W](/web/image/product.template/280917/image_128/%5B118637%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20DC%2C%205%20W?unique=4024fc8)
|
Type number: 400-517-42 |
10.00 € | |
![[129849] RIEGLER Device plug with LED, varistor 110 V, 22 mm, type B](/web/image/product.template/273069/image_128/%5B129849%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20110%20V%2C%2022%20mm%2C%20type%20B?unique=1d2fcce)
|
Type number: 1920.9PLV110 |
6.57 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

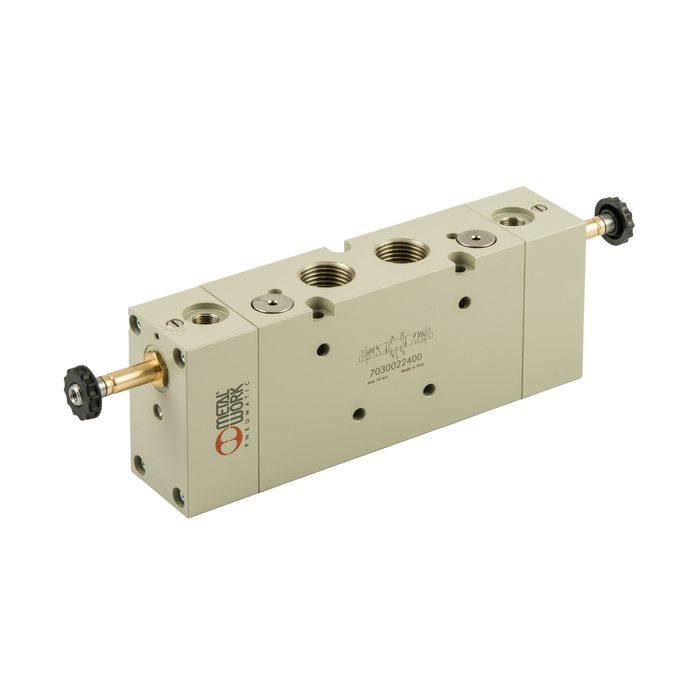

![[147140] RIEGLER 5/3-way valve, electropneumatic, ext. control valve, center vented, G 1/2](/web/image/product.template/284082/image_128/%5B147140%5D%20RIEGLER%205-3-way%20valve%2C%20electropneumatic%2C%20ext.%20control%20valve%2C%20center%20vented%2C%20G%201-2?unique=d0f807e)
|
