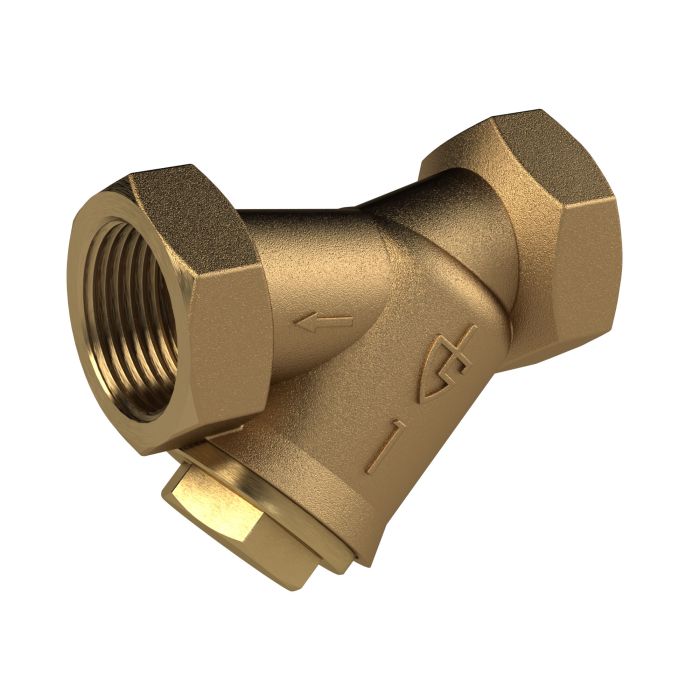

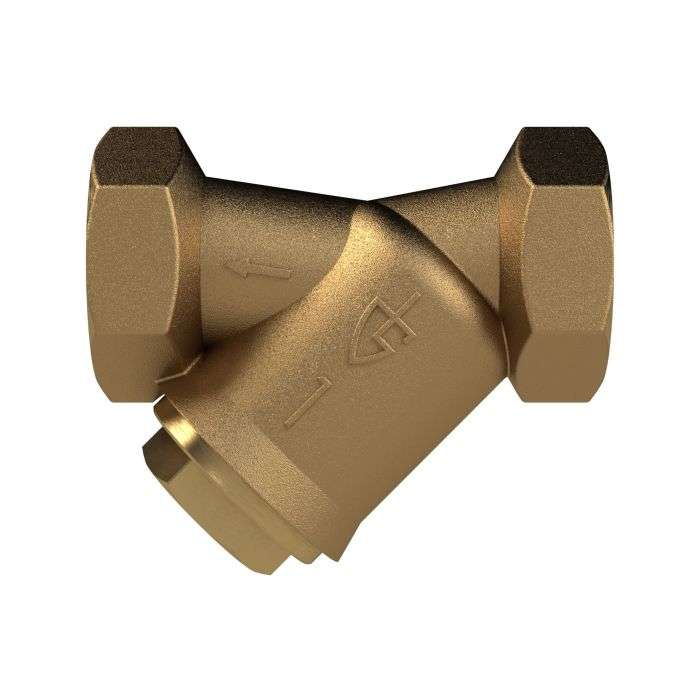

RIEGLER strainer, gunmetal, G 1, DN 25, MW 0.25 mm
Typennummer: SCHFR.G1.MW0,25
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Strainer made of gunmetal, for industrial systems, max. 25 bar - Type SCHFR.G1.MW0.25
The RIEGLER strainer, gunmetal, G 1, DN 25, MW 0.25 mm traps impurities in pipes and protects fittings. The housing is made of gunmetal with NBR seals. Designed for a maximum operating pressure of 25 bar. The operating temperature is between -25 °C and 130 °C. Connection thread G 1 - suitable for common industry standards. Protection of downstream fittings.
Field of application
Typical areas of application: Piping systems.
| Thread | G 1 |
| DN | 25 |
| Mesh size | 0.25 mm |
| Housing | Gunmetal |
| Sealing material | NBR |
| Max. operating pressure | 25 bar |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 130 °C |
| Head piece | Brass bright |

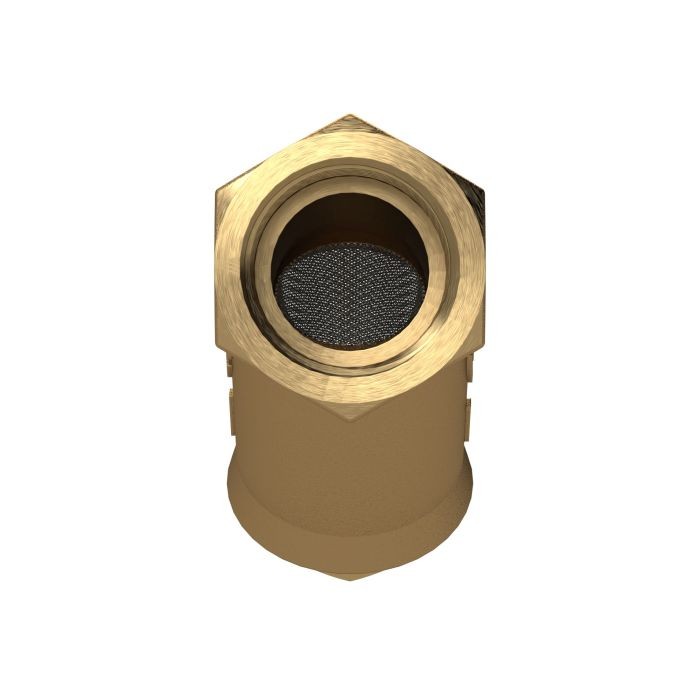

| Sieve insert | Stainless steel double sieve insert |

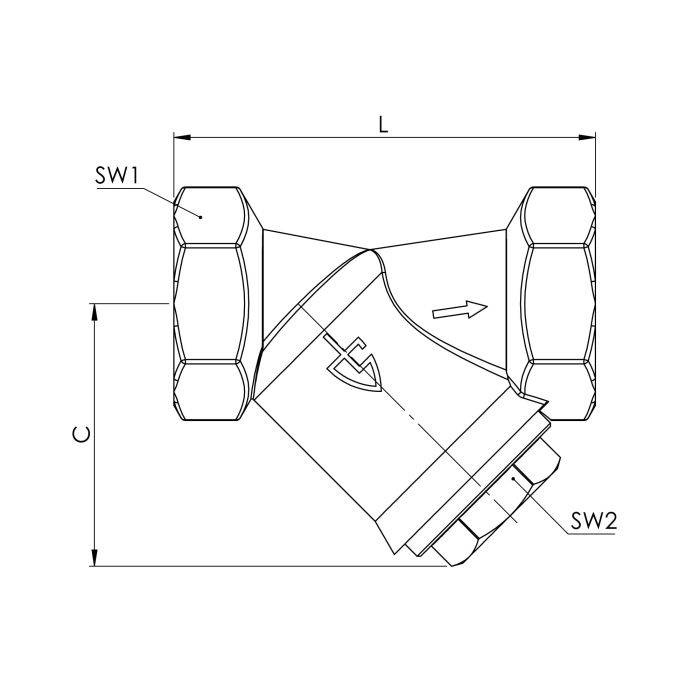

| SW 1 | 41 mm |
| SW 2 | 27 mm |
| C | 51 mm |
| L | 85.0 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | FLEX |
