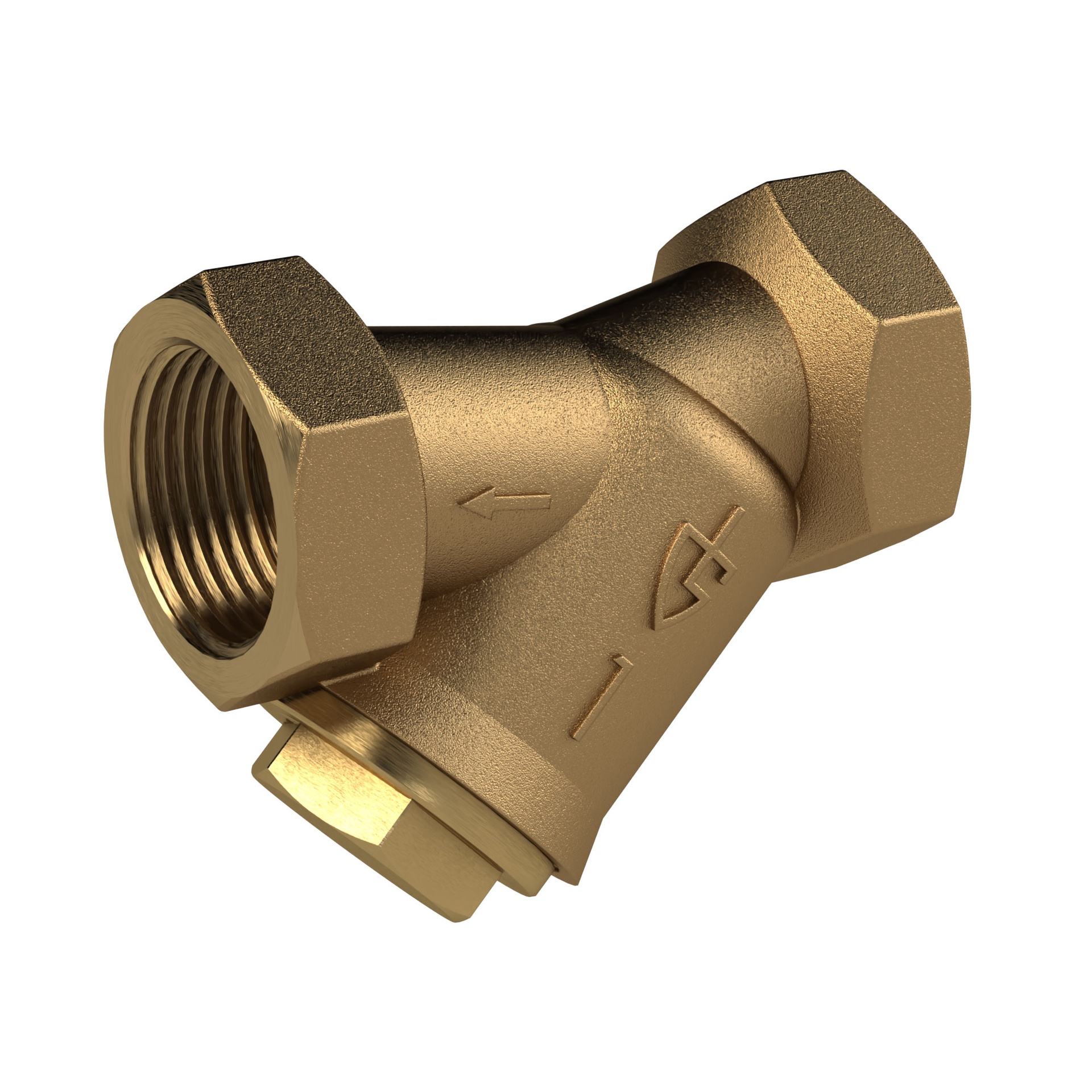

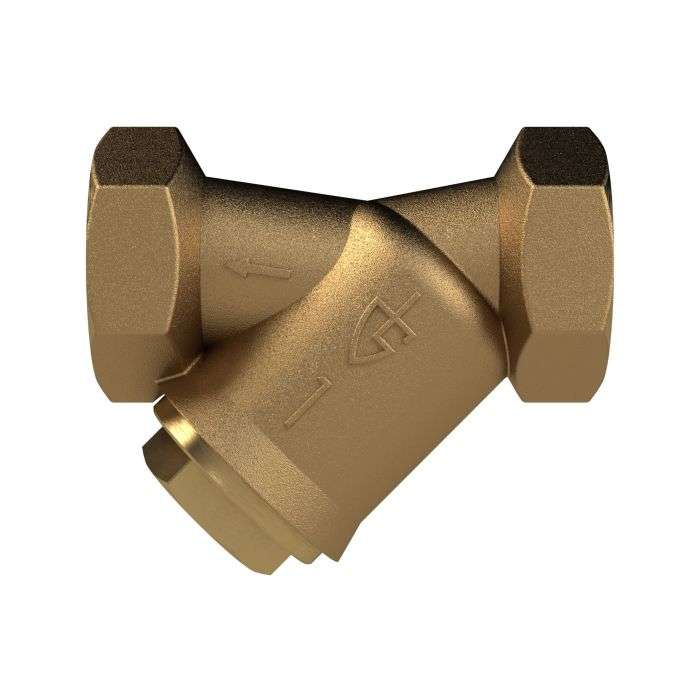

RIEGLER strainer, gunmetal, G 3/4, DN 20, MW 0.5 mm
Typennummer: SCHFR.G34.MW0,5
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Strainer, gunmetal, strainer insert mesh size 0.5 mm, operating temp. -25 °C to 130 °C, G 3/4, DN 20, PN max. 25 bar
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| DN | 20 |
| Operating temperature min. | -25 °C |
| Mesh size | 0.5 mm |
| Operating temperature max. | 130 °C |

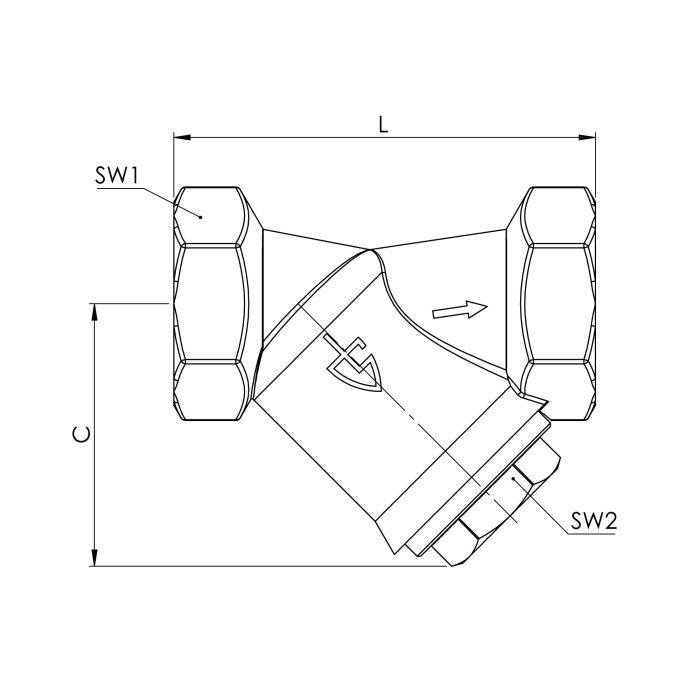

| SW 2 | 17 mm |
| Max. operating pressure | 25 bar |
| SW 1 | 34 mm |
| C | 38 mm |
| L | 73 mm |
| CAS No. SVHC 1 | 7439-92-1 |

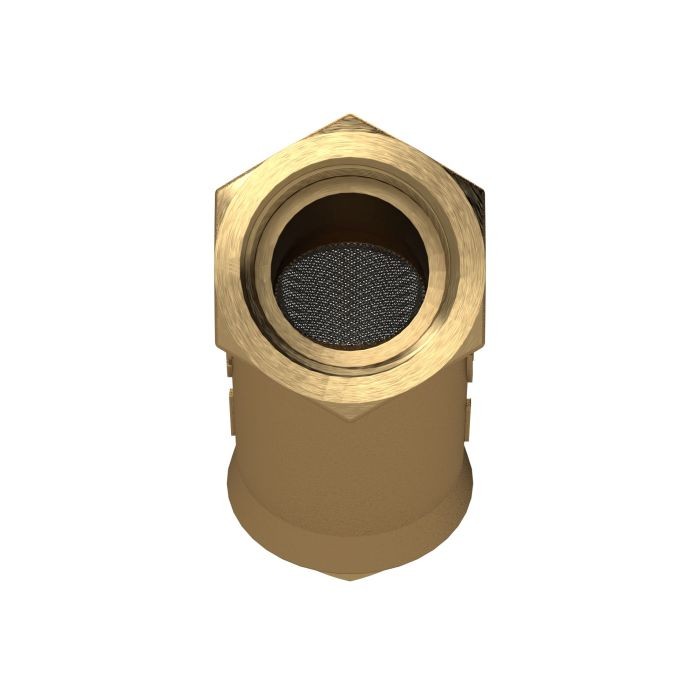

| Sieve insert | Stainless steel double sieve insert |
| Class name | FLEX |
| Thread | G 3/4 |
| Head piece | Brass |
| Sealing material | NBR |
| Housing | Gunmetal |
