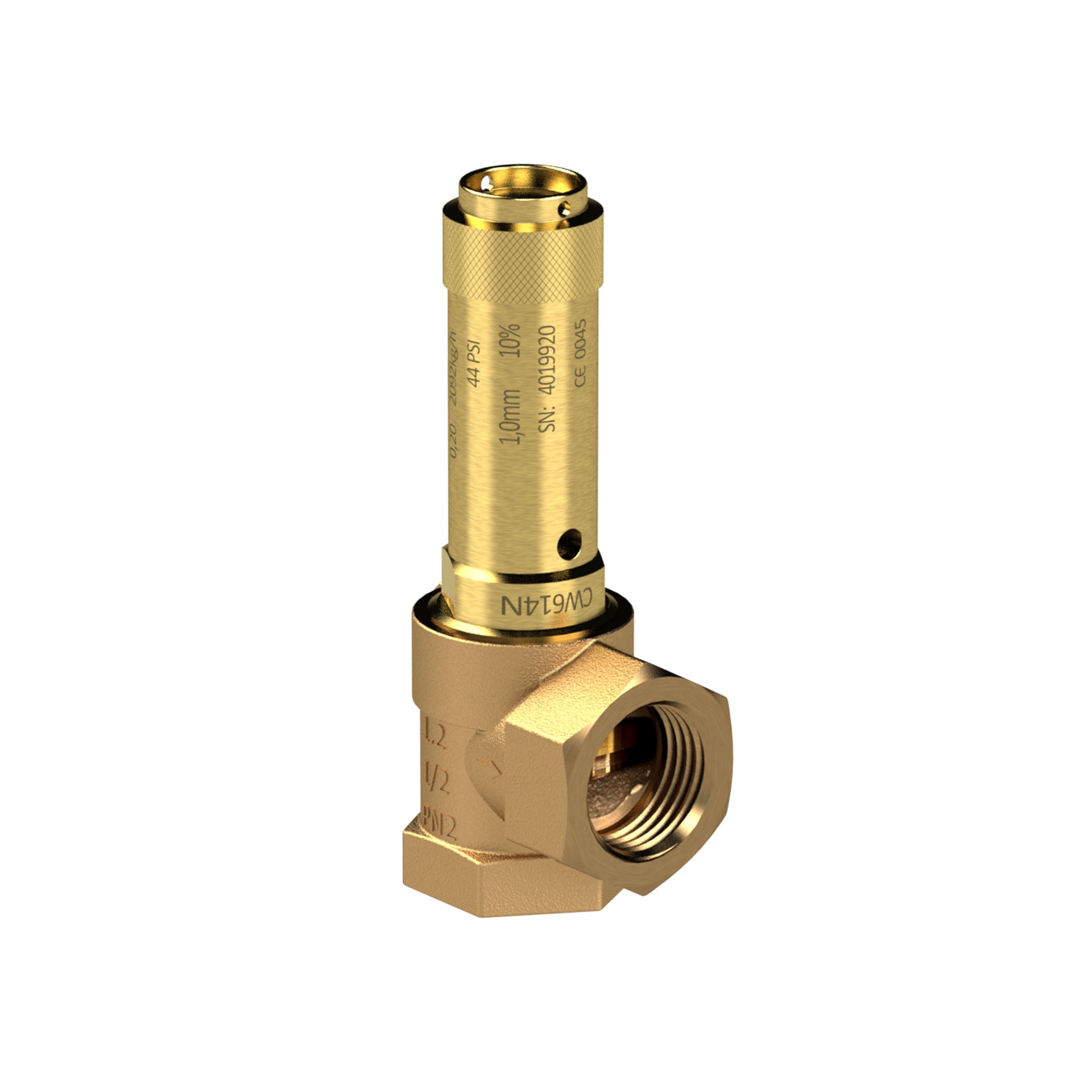

RIEGLER angle safety valve, liquids, G 1, response pressure 14.5 bar
Typennummer: 221.05-14,5
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
148089EAN :
4047322798310Category :
Safety Valves & Pressure Relief ValvesWeight :
0.66 kgRIEGLER Angle safety valve made of gunmetal, for industrial systems, G 1 - type 221.05-14.5
The RIEGLER angle safety valve, liquids, G 1, set pressure 14.5 bar reliably protects compressed air systems and containers against impermissible overpressure. The housing is made of gunmetal with FPM seals. The operating temperature is between -10 °C and 110 °C. Connection thread G 1 - suitable for common industry standards. Reliable overpressure protection for safe systems.
Field of application
Typical areas of application: Pressure vessels, compressor systems and piping systems.
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| SW | 41 mm |
| Operating temperature min. | -10 °C |
| Setting range | 1 - 16 bar (depending on the seal used) |
| Setting range min. | 1 bar |
| Operating temperature max. | 110 °C |
| H | 132 mm |
| Response pressure min. | 14.5 bar |
| Setting range max. | 16 bar |
| L2 | 30 mm |
| L1 | 36 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Spring | Carbon steel |
| Class name | FLEX |
| Membrane | FPM |
| Thread | G 1 |
| Entry and exit | female thread type G according to DIN EN ISO 228-1 |
| Interior parts | Brass |
| Spring cover | Brass |
| Housing | Gunmetal |
| Theme shop | SAFETY |
