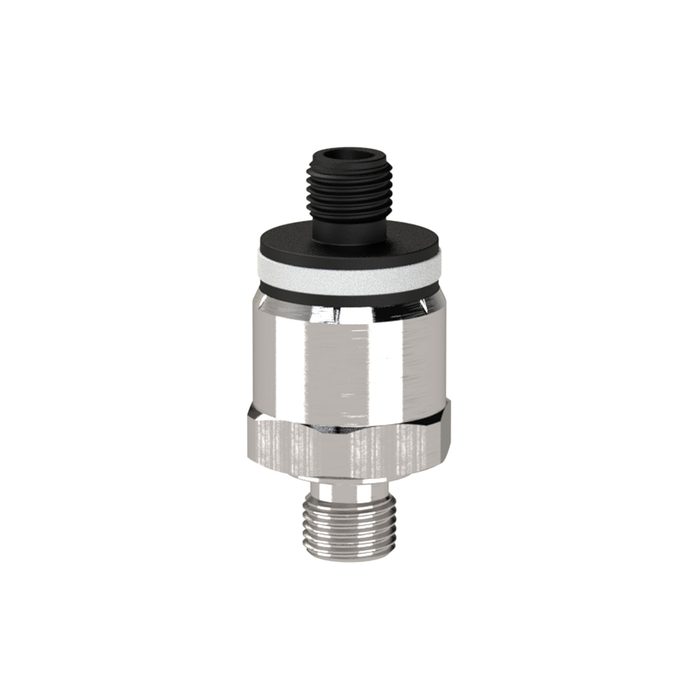

RIEGLER pressure sensor, A-1200, G 1/4, 0 - 16 bar, 1.0% FS, PNP, M12x1, 316L
Typennummer: A1200.14.016.1.1.P.IO.4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure sensor made of CrNi steel 316L, for pressure measurement, G 1/4 AG - Type A1200.14.016.1.1.P.IO.4
The RIEGLER pressure sensor, A-1200, G 1/4, 0 - 16 bar, 1.0% FS, PNP, M12x1, 316L measures pressure or temperature reliably and precisely. The housing is made of 316L stainless steel. The operating temperature is between -20 °C and 80 °C. Connection thread G 1/4 AG - suitable for common industry standards. Protection class IP 65 and IP 67. Reliable measured values for safe processes.
Field of application
Typical areas of application: Pressure monitoring and temperature control.
| Measuring range max. | 16 |
| WIKA Typ | A-1200 |
| IO-Link | 1.1 |
| Auxiliary energy | DC 10 - 32 V |
| Accuracy | 1,0 % FS |
| Output signal | 1 switching output (PNP, IO-Link) |
| Wetted parts | CrNi steel 316L, PH steel |
| Electrical connection | M12x1 circular connector, 4-pin |
| Protection class | IP 65 and IP 67 |
| Housing | CrNi steel 316L |
| Measuring range min. bar | 0 |
| Operating temperature min. | -20 °C |
| Ambient temperature min. | -30 °C |
| Medium temperature min. | -30 °C |
| Medium temperature max. | 100 °C |
| Operating temperature max. | 80 °C |
| Ambient temperature max. | 85 °C |
| Process connection material | CrNi steel 316L |
| Thread | G 1/4 AG |
| Class name | MAX |
