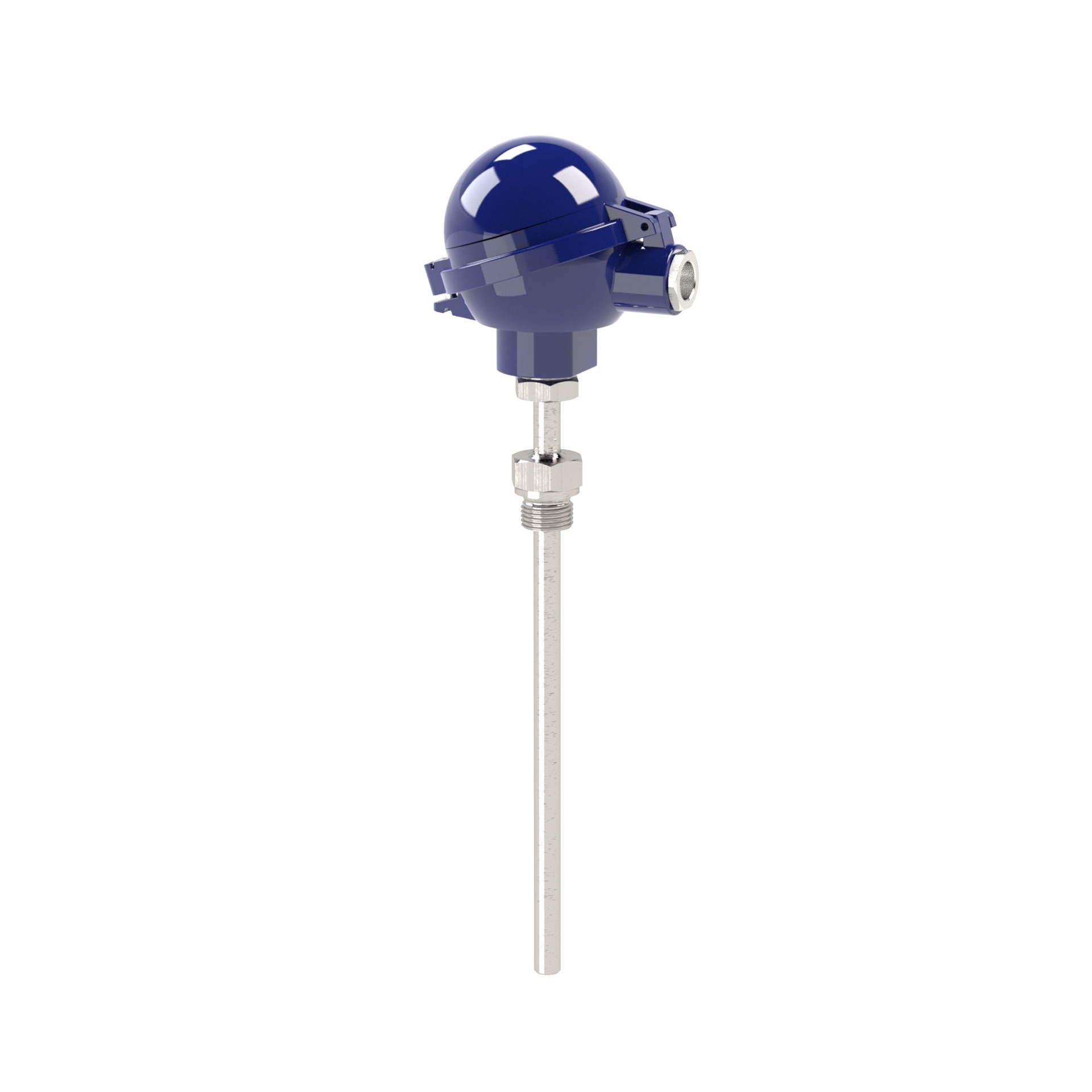

RIEGLER resistance thermometer, TR10-C, 1xPt100, 4-wire, 4-20 mA, 100mm
Typennummer: TR10-C.100.4.A.12.T.100
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Resistance thermometer made of aluminum, for pressure measurement, G 1/2 AG - Type TR10-C.100.4.A.12.T.100
The RIEGLER resistance thermometer, TR10-C, 1xPt100, 4-wire, 4-20 mA, 100mm measures the temperature in pipes and containers. The housing is made of aluminum. The ambient temperature is between -40 °C and 80 °C. Connection thread G 1/2 AG - suitable for common industry standards. Protection class IP 65, replaceable under pressure thanks to protective tube.
Field of application
Typical areas of application: Temperature monitoring in industry and process technology.
| Display range max. | 300 °C |
| WIKA Typ | TR10-C |
| Thermowell material | Stainless steel 1.4571 |
| Transmitter | T15, digital, 4 - 20 mA, programmable |
| Measuring insert Ø | 6 mm |
| Measuring range end | 150 °C |
| Measuring range start | 0 °C |
| Cable input | Standard cable gland M20x1.5 |
| Installation length | 100 mm |
| Connection housing | BSZ, spherical shape, hinged lid |
| Connection to the neck tube | M24x1,5 mm |
| Accuracy | Class A |
| Output signal | Pt100, 4 - 20 mA, 4-wire |
| Display range min. | -30 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 80 °C |
| Housing | Aluminum |
| Class name | FLEX |
| Thread | G 1/2 AG |
| Protection class | IP 65 |
