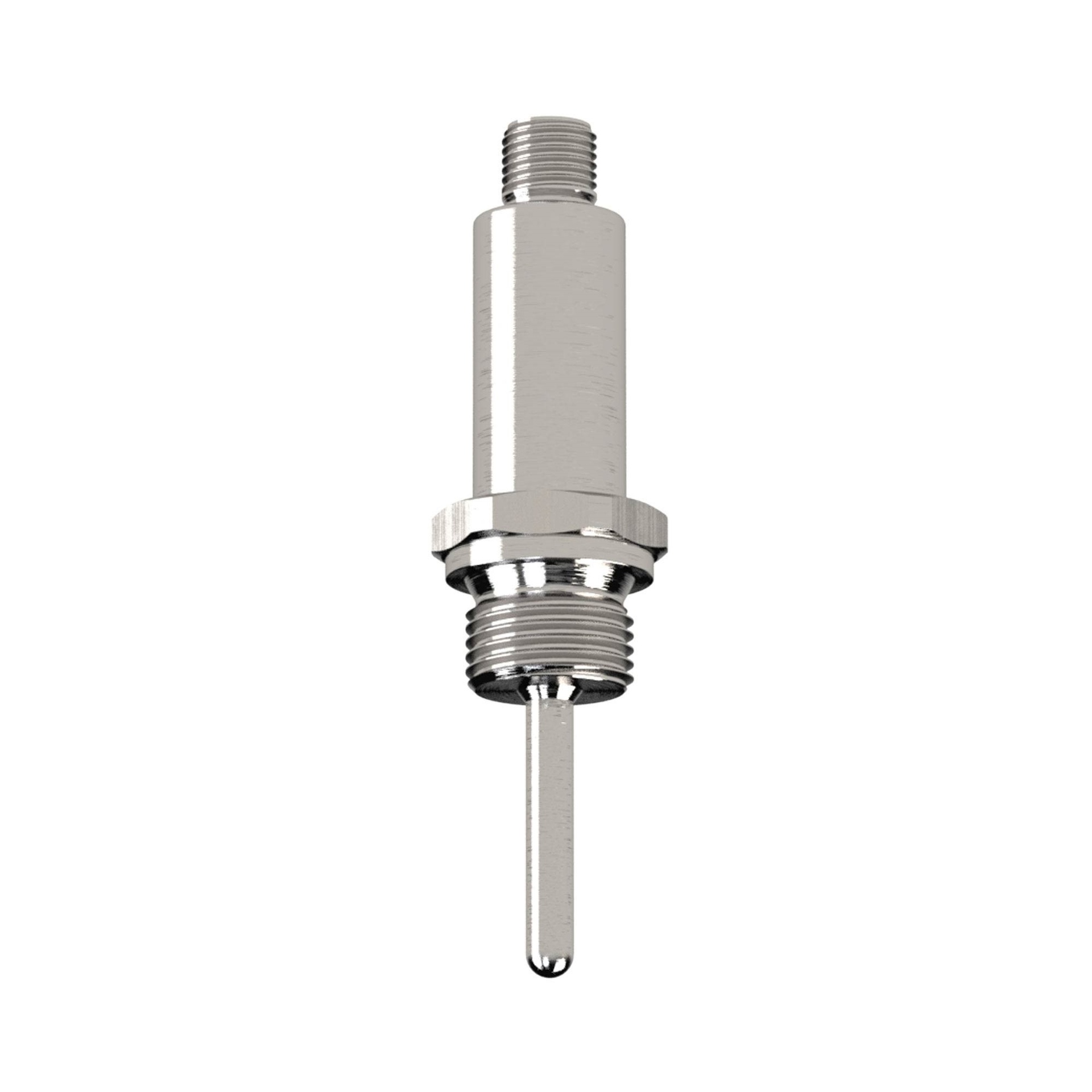

RIEGLER mini resistance thermometer, TR33, Pt1000, 4-20 mA, M12x1, 200 mm
Typennummer: TR33.420.2.A.12.200
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mini resistance thermometer, TR33, Pt1000 cl. A, 4-20 mA, 2-wire, electr. conn. M12x1, G1/2, -30 to 150°C, insertion length:200mm
| Display range max. | 150 °C |
| Protection class | IP 67 |
| WIKA Typ | TR33 |
| Measuring range end | 150 °C |
| Measuring range start | 0 °C |
| Installation length | 200 mm |
| Accuracy | Class A |
| Output signal | Pt1000, 4 - 20 mA, 2-wire |
| Electrical connection | Round plug connector M12x1 |
| Display range min. | -30 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 85 °C |
| Wetted parts | Stainless steel 1.4571 |
| Housing | Stainless steel 1.4571 |
| Class name | FLEX |
| Thread | G 1/2 AG |
