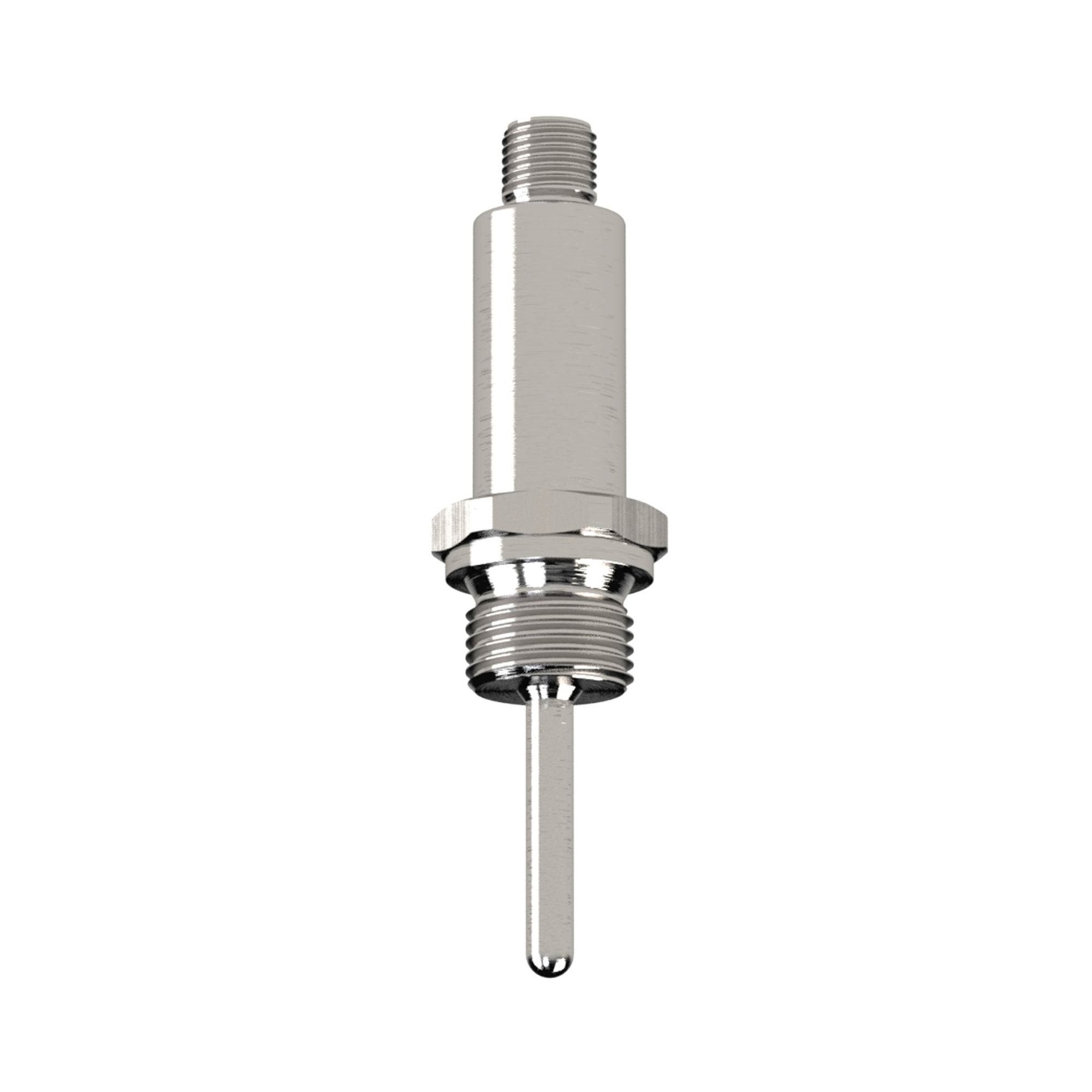

RIEGLER mini resistance thermometer, TR33, Pt100, 3-wire, M12x1, 50 mm
Typennummer: TR33.100.3.A.12.50
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mini resistance thermometer made of stainless steel 1.4571, for pressure measurement, G 1/2 AG - type TR33.100.3.A.12.50
The RIEGLER mini resistance thermometer, TR33, Pt100, 3-wire, M12x1, 50 mm measures the temperature in pipes and containers. The housing is made of stainless steel 1.4571. The ambient temperature is between -40 °C and 85 °C. Connection thread G 1/2 AG - suitable for common industrial standards. Protection class IP 67, replaceable under pressure thanks to thermowell.
Field of application
Typical areas of application: Temperature monitoring in industry and process technology.
| Display range max. | 150 °C |
| Protection class | IP 67 |
| WIKA Typ | TR33 |
| Installation length | 50 mm |
| Accuracy | Class A |
| Output signal | Pt100, 3-wire |
| Electrical connection | Round plug connector M12x1 |
| Display range min. | -30 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 85 °C |
| Wetted parts | Stainless steel 1.4571 |
| Housing | Stainless steel 1.4571 |
| Class name | FLEX |
| Thread | G 1/2 AG |
