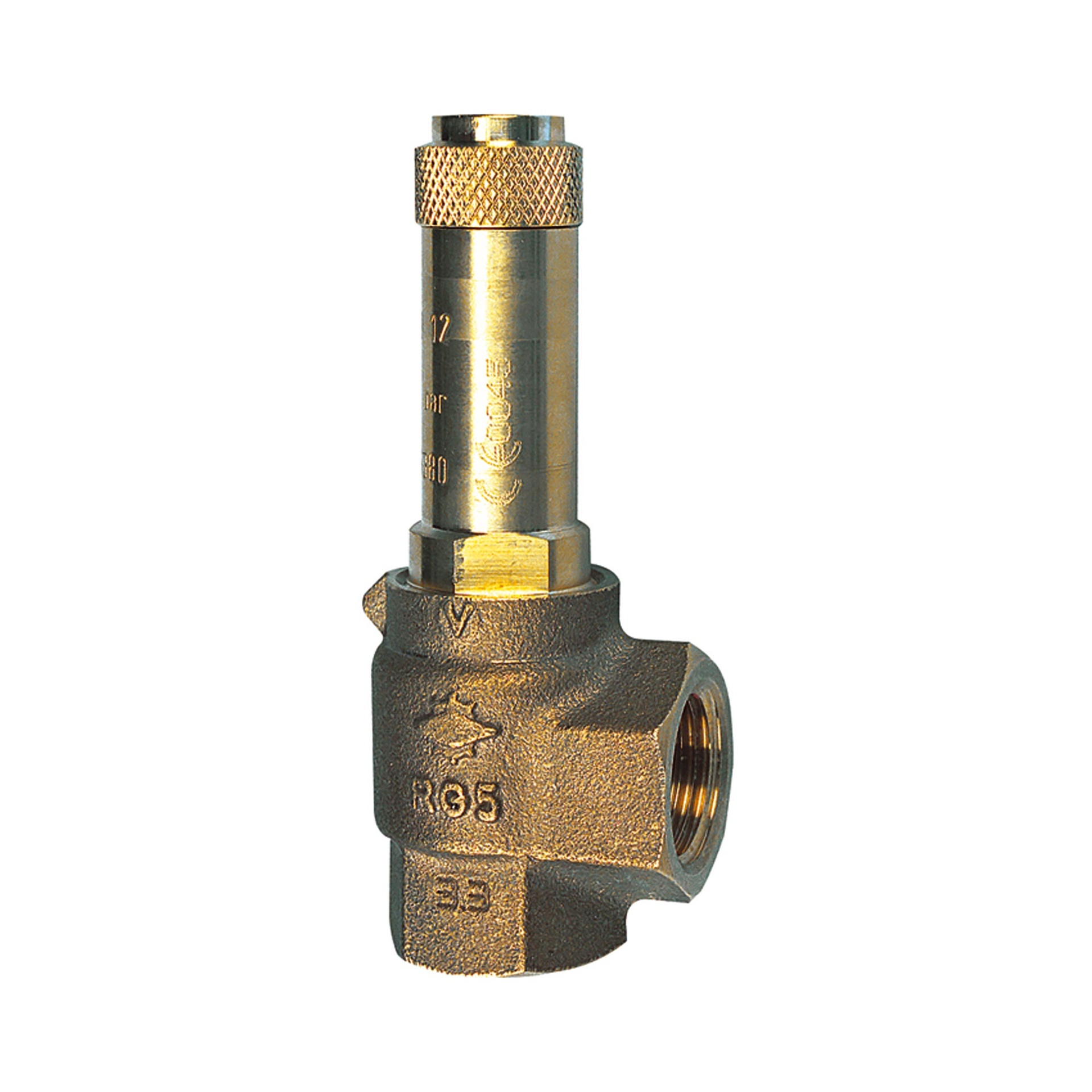

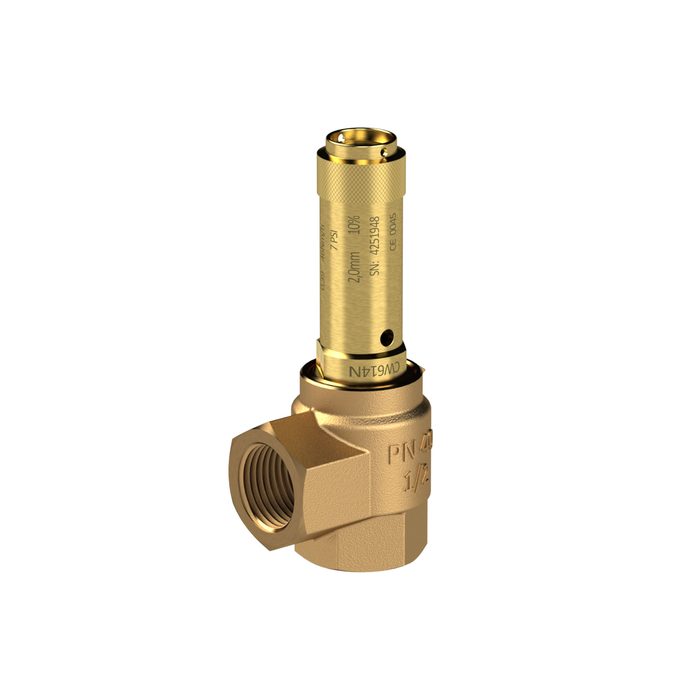

RIEGLER angle safety valve, saturated steam, G 1/2, set pressure 13 bar
Typennummer: 222.03-13,0
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
148536EAN :
4047322802758Category :
Safety Valves & Pressure Relief ValvesWeight :
0.01 kgRIEGLER Gunmetal angle safety valve, for industrial systems, G 1/2 - Type 222.03-13.0
The RIEGLER angle safety valve, saturated steam, G 1/2, set pressure 13 bar reliably protects compressed air systems and containers against impermissible overpressure. The housing is made of gunmetal with PTFE seals. The operating temperature is between -10 °C and 225 °C. G 1/2 connection thread - suitable for common industry standards. Reliable overpressure protection for safe systems.
Field of application
Typical areas of application: Pressure vessels, compressor systems and piping systems.
| Operating temperature | -10 °C bis 150 °C (EPDM) 225 °C (PTFE) |
| Operating temperature max. | 225 °C |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| SW | 27 mm |
| Operating temperature min. | -10 °C |
| Setting range | 0.2 - 20 bar (depending on connection size and medium) |
| Setting range min. | 0.2 bar |
| Response pressure min. | 13 bar |
| Setting range max. | 20 bar |
| L2 | 22 mm |
| L1 | 25 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| H | 99 mm |
| Spring | Carbon steel |
| Class name | FLEX |
| Thread | G 1/2 |
| Entry and exit | female thread type G according to DIN EN ISO 228-1 |
| Interior parts | Brass |
| Spring cover | Brass |
| Membrane | PTFE |
| Housing | Gunmetal |
| Theme shop | SAFETY |
