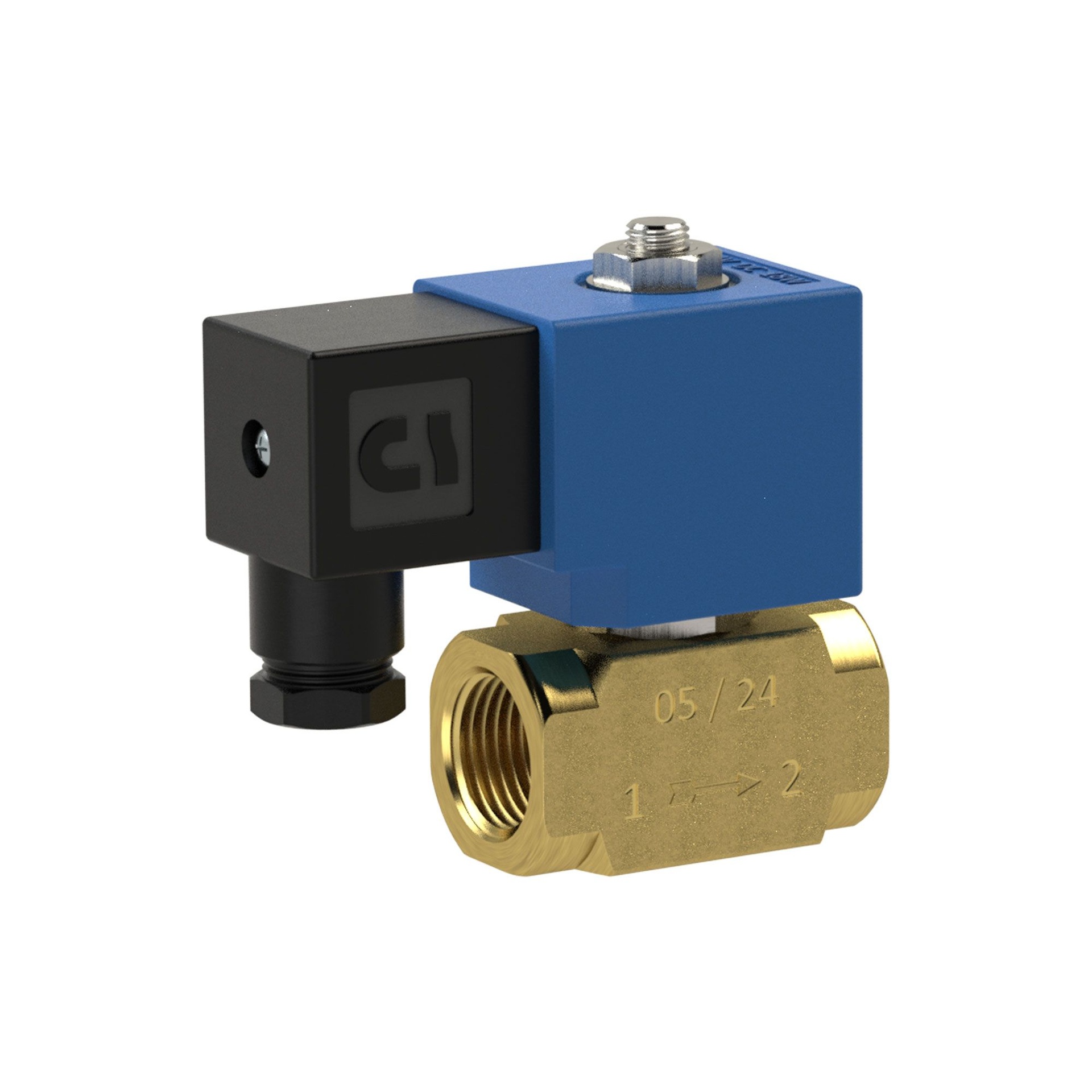

RIEGLER 2/2-way valve, MS, NO, direct, 230 V, G 1/8, PN 0-20 bar, FKM
Typennummer: MVB.MS.230V.G18.0-20B
EAN:
4047322803533
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-way MV. made of brass, for industrial systems, max. 20 bar - Type MVB.MS.230V.G18.0-20B
The RIEGLER 2/2-way valve, MS, NO, direct acting, 230 V, G 1/8, PN 0-20 bar, FKM switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with FKM seals. Designed for a maximum operating pressure of 20 bar. The permissible medium temperature is between -10 °C and 160 °C. Connection thread G 1/8 IG (DIN EN ISO 228-1) - suitable for common industry standards. Protection class IP 65. Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | FKM |
| Protection class | IP 65 |
| Electrical connection | ISO 4400 / EN 175301-803 Type A |
| Max. operating pressure | 20 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 160 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Interior parts | Brass and stainless steel |
| Valve seat | Brass and stainless steel |
| Thread | G 1/8 FEMALE THREAD |
| Thread standard | DIN EN ISO 228-1 |
| Design | 2 |
| A | 78 mm |
| B | 40 mm |
| C | 90 mm |
| Opening | 1,8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| REACH Info | contains SVHC substance |
| Class name | EASY |
