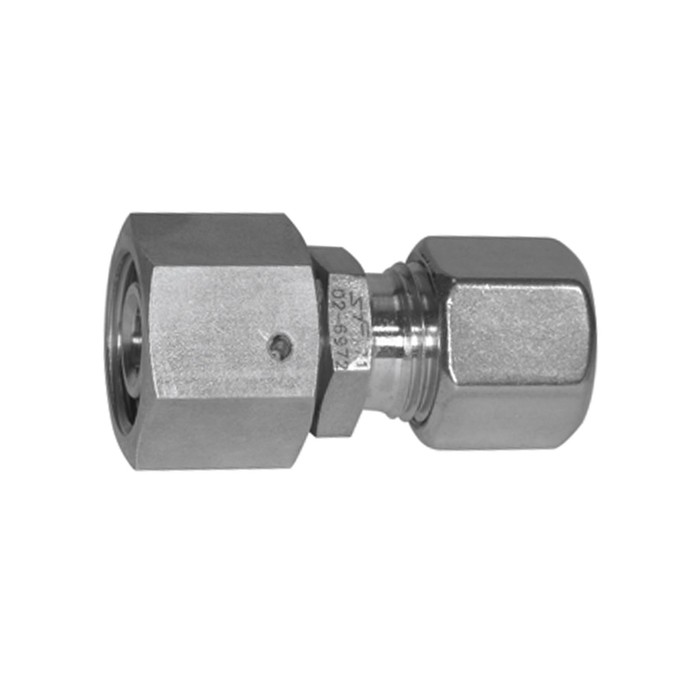

RIEGLER Reducing screw, seal, nut M18x1.5 i., ES, Ø12x6, FKM
Typennummer: ES 553-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducing valve made of stainless steel 1.4571, for pneumatic installation - Type ES 553-2
The RIEGLER reducer fitting, seal, nut M18x1.5 i., ES, Ø12x6, FKM connects compressed air and pneumatic lines securely and tightly. The housing is made of stainless steel 1.4571 with FKM seals. The temperature range is between -20 °C and 200 °C. Safe, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | -20 °C |
| Pipe outer Ø 1 | 12 mm |
| Temperature range max. | 200 °C |
| PN | 315 bar |
| L1 | 39.5 mm |
| Pipe outer Ø 2 | 6 mm |
| Class name | STAINLESS STEEL |
| Material | Stainless steel 1.4571 |
| Sealing material | FKM |
| Female nut thread | M18x1.5 |
