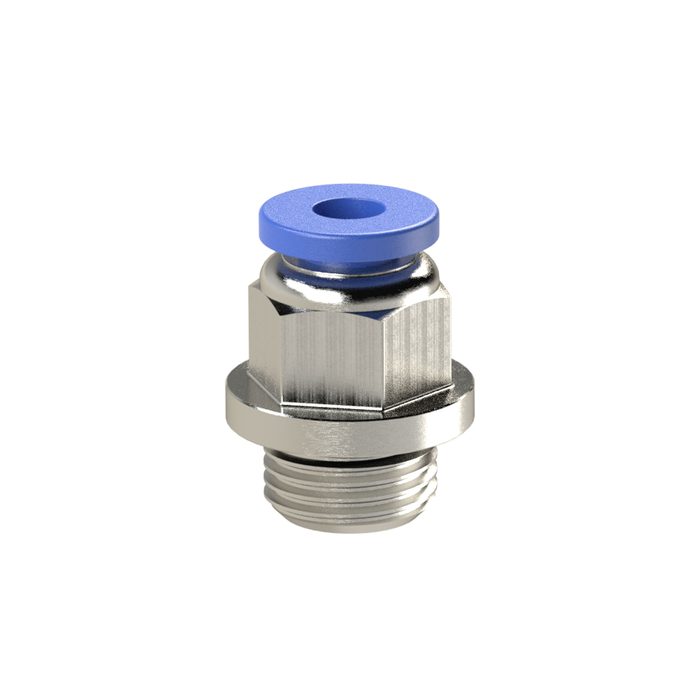

RIEGLER Straight push-in fitting »Blue Series« mini, G 1/8 o., hose Ø 6
Typennummer: 122.018-6M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight push-in fitting "Blue series" mini, G 1/8 a., for outer tube Ø 6 mm, pmax 10 bar, plastic/MS nickel-plated.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/8 |
| SW | 10 mm |
| Thread standard | DIN EN ISO 228-1, NBR O-ring |
| for hose outer Ø | 6 mm |
| L1 | 18.3 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[148791] RIEGLER Straight push-in fitting »Blue Series« mini, G 1/8 o., hose Ø 4](/web/image/product.template/210507/image_128/%5B148791%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20G%201-8%20o.%2C%20hose%20%C3%98%204?unique=4830f7c)
|
Typennummer: 122.018-4M |
1.52 € | |
![[148783] RIEGLER Straight push-in fitting »Blue Series« mini, M3 o., hose ext. Ø 3](/web/image/product.template/210499/image_128/%5B148783%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20M3%20o.%2C%20hose%20ext.%20%C3%98%203?unique=af8dc25)
|
Typennummer: 122.003-3M |
1.51 € | |
![[148784] RIEGLER Straight push-in fitting »Blue Series« mini, M3 o., hose ext. Ø 4](/web/image/product.template/210500/image_128/%5B148784%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20M3%20o.%2C%20hose%20ext.%20%C3%98%204?unique=99892c5)
|
Typennummer: 122.003-4M |
1.51 € | |
![[148785] RIEGLER Straight push-in fitting »Blue Series« mini, M5 o., hose ext. Ø 3](/web/image/product.template/210501/image_128/%5B148785%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20M5%20o.%2C%20hose%20ext.%20%C3%98%203?unique=ca6500f)
|
Typennummer: 122.005-3M |
1.51 € | |
![[148786] RIEGLER Straight push-in fitting »Blue Series« mini, M5 o., hose ext. Ø 4](/web/image/product.template/210502/image_128/%5B148786%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20M5%20o.%2C%20hose%20ext.%20%C3%98%204?unique=e754c10)
|
Typennummer: 122.005-4M |
1.51 € | |

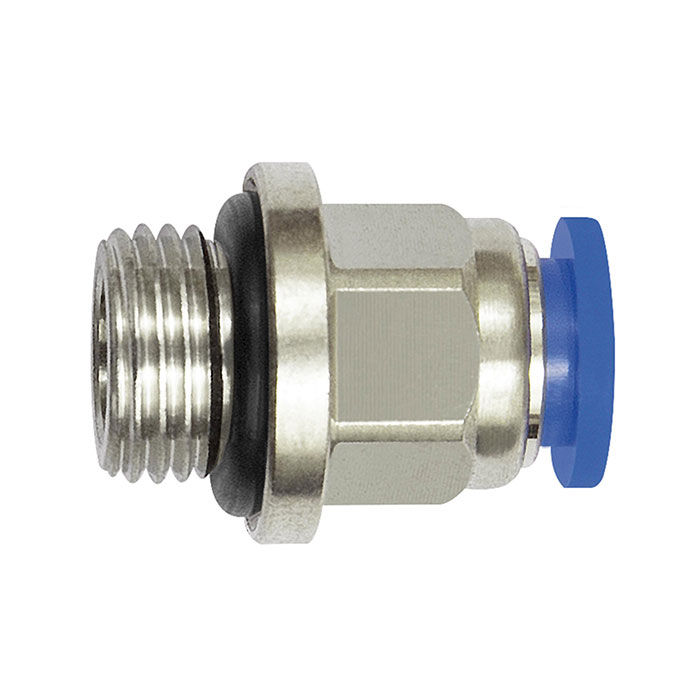

![[148787] RIEGLER Straight push-in fitting »Blue Series« mini, M5 o., hose ext. Ø 6](/web/image/product.template/210503/image_128/%5B148787%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20M5%20o.%2C%20hose%20ext.%20%C3%98%206?unique=e47a2a9)
|
Typennummer: 122.005-6M |
1.51 € | |
![[148788] RIEGLER Straight push-in fitting »Blue Series« mini, M6 o., hose ext. Ø 3](/web/image/product.template/210504/image_128/%5B148788%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20M6%20o.%2C%20hose%20ext.%20%C3%98%203?unique=c9e4396)
|
Typennummer: 122.006-3M |
1.51 € | |
![[148789] RIEGLER Straight push-in fitting »Blue Series« mini, M6 o., hose ext. Ø 4](/web/image/product.template/210505/image_128/%5B148789%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20M6%20o.%2C%20hose%20ext.%20%C3%98%204?unique=cdfef2d)
|
Typennummer: 122.006-4M |
1.51 € | |
![[148790] RIEGLER Straight push-in fitting »Blue Series« mini, M6 o., hose ext. Ø 6](/web/image/product.template/210506/image_128/%5B148790%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20M6%20o.%2C%20hose%20ext.%20%C3%98%206?unique=2e90026)
|
Typennummer: 122.006-6M |
1.51 € | |

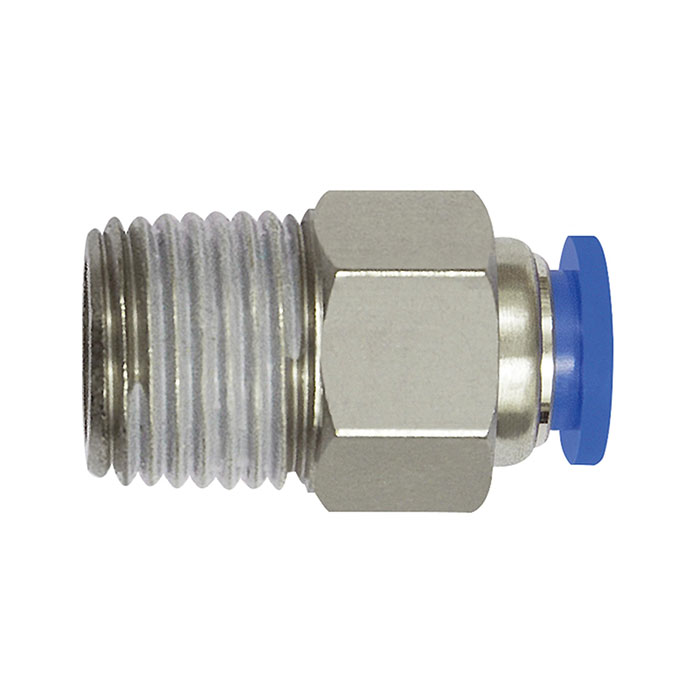

![[148793] RIEGLER Straight push-in fitting »Blue Series« mini, R 1/8 o., hose Ø 4](/web/image/product.template/210509/image_128/%5B148793%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20R%201-8%20o.%2C%20hose%20%C3%98%204?unique=10ee197)
|
Typennummer: 123.018-4M |
1.38 € | |
![[148794] RIEGLER Straight push-in fitting »Blue Series« mini, R 1/8 o., hose Ø 6](/web/image/product.template/210510/image_128/%5B148794%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBBlue%20Series%C2%AB%20mini%2C%20R%201-8%20o.%2C%20hose%20%C3%98%206?unique=f89db0d)
|
Typennummer: 123.018-6M |
1.46 € | |
