RIEGLER Push-in bulkhead connector »Blue series« mini, M10x1
Typennummer: 149.010-4M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Schott plug-in connector "Blue series" mini made of plastic or nickel-plated brass - type 149.010-4M
The RIEGLER Schott "Blue Series" mini push-in connector, M10x1.0, hose Ø 4 connects compressed air and pneumatic lines securely and tightly. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Connection thread M10x1.0 - suitable for common industry standards. Suitable for compressed air. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M10x1.0 |
| SW | 12 mm |
| for hose outer Ø | 4 mm |

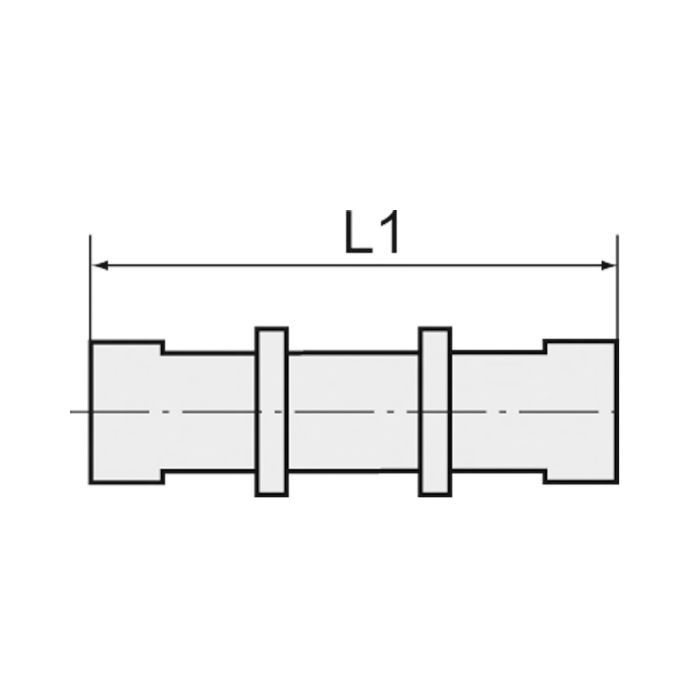

| L1 | 25.2 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[148870] RIEGLER Push-in bulkhead connector »Blue series« mini, M12x1](/web/image/product.template/210578/image_128/%5B148870%5D%20RIEGLER%20Push-in%20bulkhead%20connector%20%C2%BBBlue%20series%C2%AB%20mini%2C%20M12x1?unique=fecb9d8)
|
Typennummer: 149.012-3M |
3.14 € | |

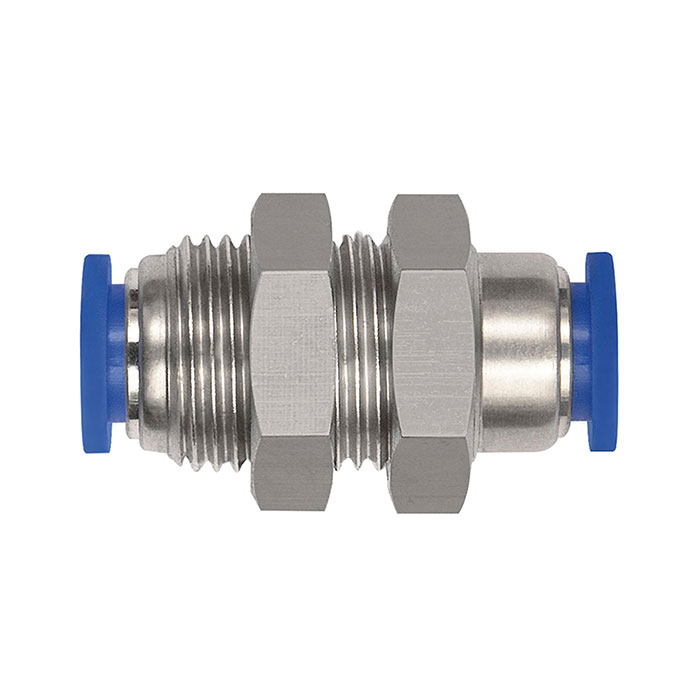

![[148868] RIEGLER Push-in bulkhead connector »Blue series« mini, M8x0.75](/web/image/product.template/210576/image_128/%5B148868%5D%20RIEGLER%20Push-in%20bulkhead%20connector%20%C2%BBBlue%20series%C2%AB%20mini%2C%20M8x0.75?unique=6ddb51b)
|
