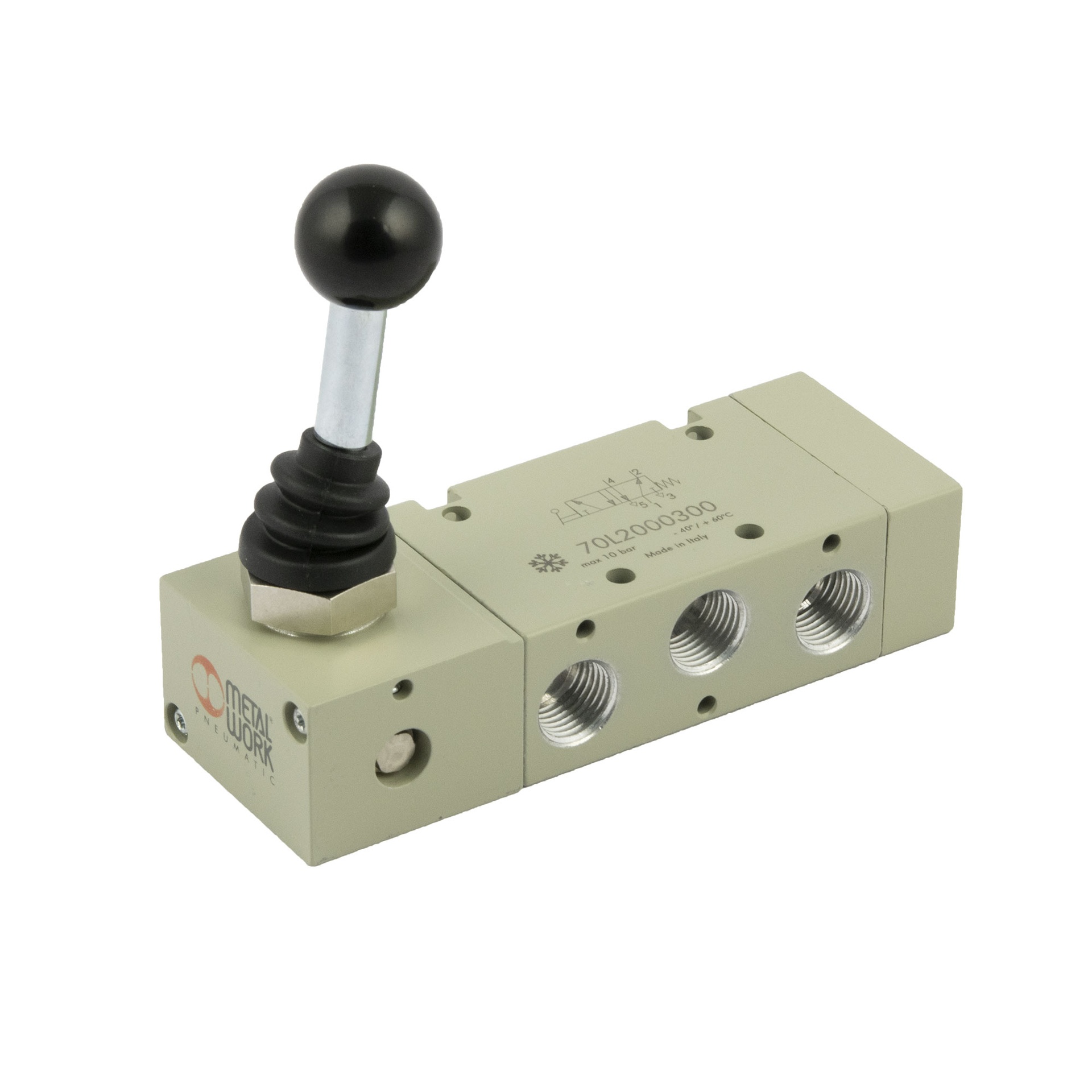

RIEGLER 5/2-way valve, low temperature, manual 90° lever, bistable, G 1/4
Typennummer: 70L2000400
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 5/2-way valve low temperature for pneumatic control, max. 10 bar, G 1/4 female thread - Type 70L2000400
The RIEGLER 5/2-way valve low temperature, manual 90° lever, bistable, G 1/4 controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is -0.99 bar to 10 bar. The temperature range is between -40 °C and 60 °C. Connection thread G 1/4 IG - suitable for common industry standards. Suitable for filtered, dry and unlubricated compressed air. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Execution | manually operated |
| Series | Series 70 Low temperature |
| Medium | filtered, dry and unlubricated compressed air |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow 2 | 1100 Nl/min |
| Flow 1 | 750 Nl/min |
| Piston | Nickel-plated aluminum |
| Actuation | bistable |
| DN | 8 |
| Symbol | 28 |
| Operating pressure min. | -0.99 bar |
| Temperature range min. | -40 °C |
| Function | 5/2 |
| Max. operating pressure | 10 bar |
| Temperature range max. | 60 °C |
| Valve body | Aluminum |
| Connection | G 1/4 FEMALE THREAD |
| Sealing material | NBR |
| Class name | PLUS |
| Spring | Special steel |
