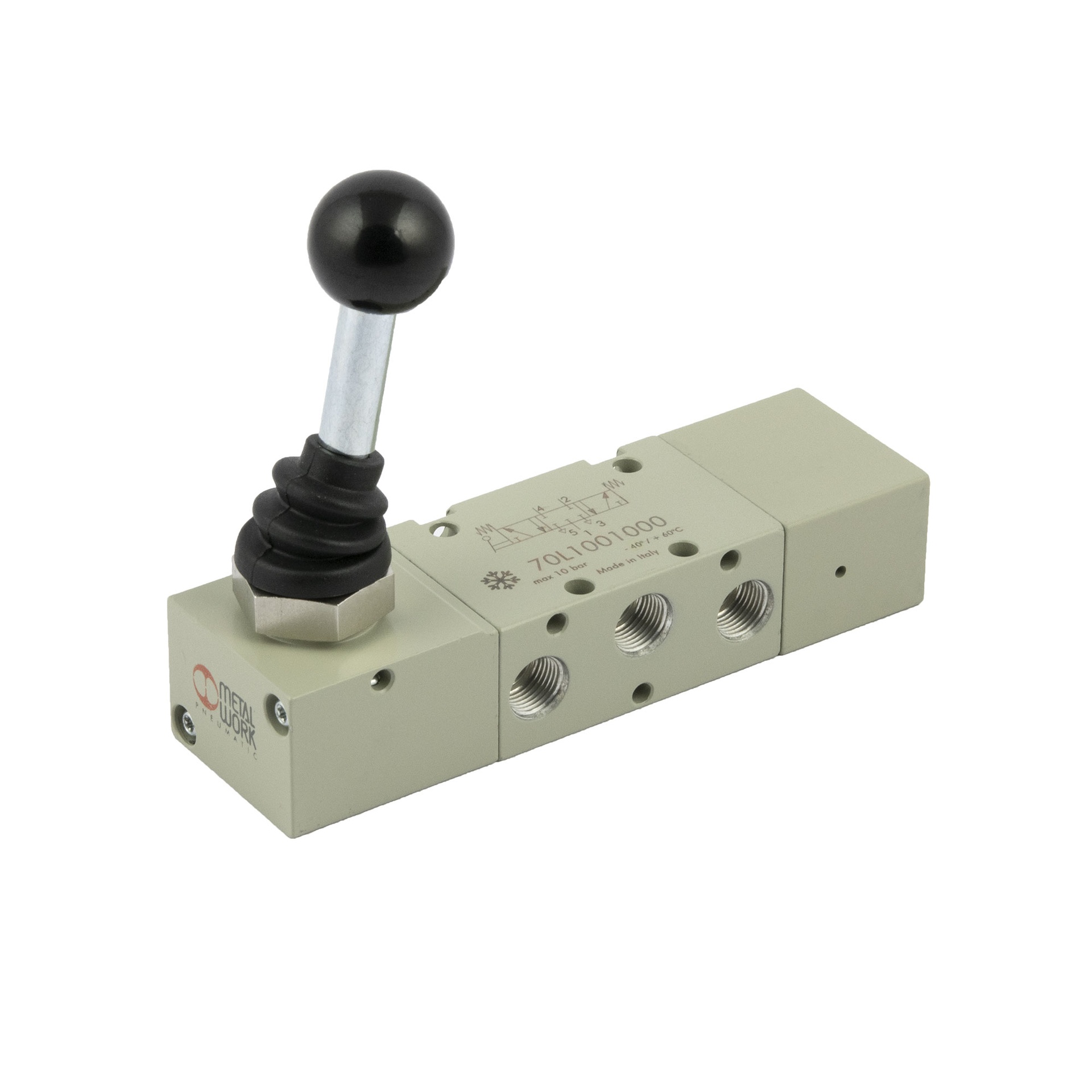

RIEGLER 5/3-way valve, low-temp., manual 90° lever, G 1/8, M. relieved, backflow preventer.
Typennummer: 70L1000900
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
5/3-way valve, low temperature, manual, 90° lever, G 1/8, center vented, reset, p = vacuum ? 10 bar, T = -40 ? 60 °C
| Execution | manually operated |
| Series | Series 70 Low temperature |
| Medium | filtered, dry and unlubricated compressed air |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow 2 | 550 Nl/min |
| Flow 1 | 400 Nl/min |
| Piston | Nickel-plated aluminum |
| Function | 5/3 |
| Actuation | Center vented, spring return |
| DN | 5 |
| Symbol | 30 |
| Operating pressure min. | -0.99 bar |
| Temperature range min. | -40 °C |
| Max. operating pressure | 10 bar |
| Temperature range max. | 60 °C |
| Valve body | Aluminum |
| Connection | G 1/8 FEMALE THREAD |
| Sealing material | NBR |
| Class name | PLUS |
| Spring | Special steel |
