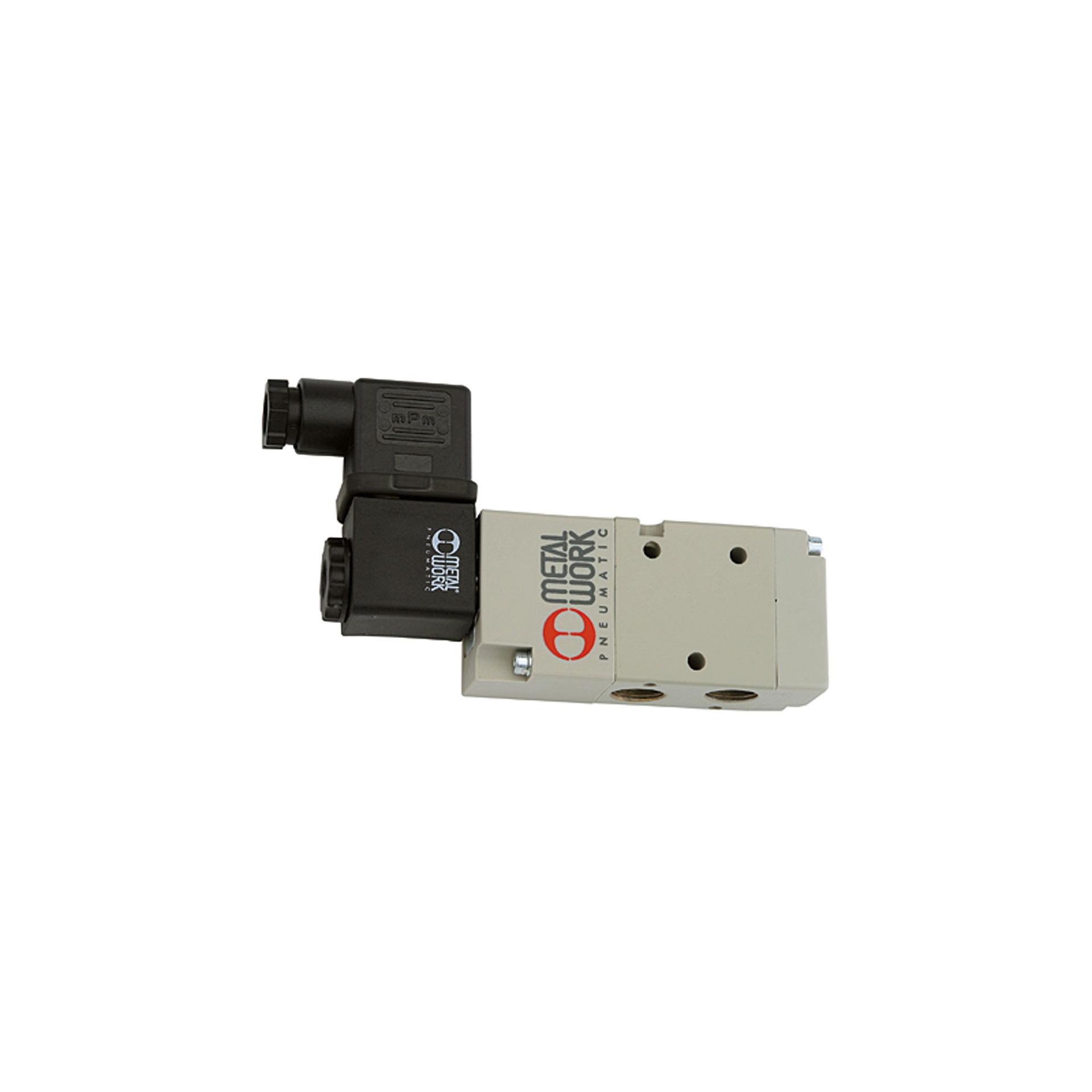

RIEGLER 3/2-way valve, low-temp., electro-pneumatic, mono, G 1/8, NC, 12 V DC
Typennummer: 517.TT.32.18.NC.12D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
150019EAN :
4047322807975Category :
Valves Electropneumatically OperatedWeight :
0.01 kgRIEGLER 3/2-way valve low temp. for pneumatic control, max. 10 bar, G 1/8 female thread - Type 517.TT.32.18.NC.12D
The RIEGLER 3/2-way valve low-temp., electro-pneumatic, mono, G 1/8, NC, 12 V DC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between -40 °C and 60 °C. Connection thread G 1/8 IG - suitable for common industry standards. Suitable for filtered, dry and non-lubricated compressed air. Operating voltage 12 V DC. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Execution | electropneumatic |
| Control air supply | internal |
| Operating pressure min. at -40 to -10 °C | 5 bar |
| Operating pressure min. at -10 to 60 °C | 3 bar |
| Symbol | 48 |
| Scope of delivery | with plug and coil |
| Series | Series 70 Low temperature |
| Medium | filtered, dry and unlubricated compressed air |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Flow 2 | 550 Nl/min |
| Flow 1 | 400 Nl/min |
| Piston | Nickel-plated aluminum |
| Actuation | monostable |
| DN | 5 |
| Ambient temperature min. | -40 °C |
| Medium temperature min. | -40 °C |
| Max. operating pressure | 10 bar |
| Tension | 12 V DC |
| Function | 3/2 NC |
| Ambient temperature max. | 50 °C |
| Medium temperature max. | 60 °C |
| Valve body | Aluminum |
| Connection | G 1/8 FEMALE THREAD |
| Sealing material | NBR |
| Class name | PLUS |
| Manual override | resting |
| Spring | Special steel |
