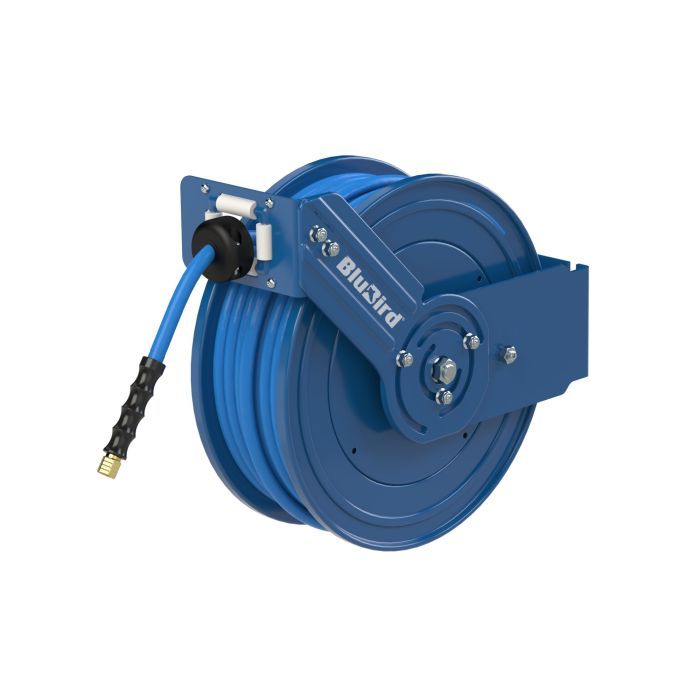

RIEGLER "BluBird" Hose Reel, Ø 20 x 13, 1/2" female thread, 20 bar, 15 m
Part Number: SAR.BB.20X13.G12.15
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER "BluBird" steel hose reel, powder-coated in blue – Model SAR.BB.20X13.G12.15
The RIEGLER “BluBird” hose reel, Ø 20 x 13, 1/2" female thread, 20 bar, 15 m, impresses with its high-quality workmanship and reliable performance. The housing is made of steel with a blue powder-coated finish. The permissible medium temperature ranges from -45 °C to 85 °C. Designed for reliable continuous use in industrial and trade applications.
Scope of Application
Typical applications: Bluebird, Blu-Bird, and Blue-Bird in compressed air and pneumatic systems.
| Housing | Stahl, pulverbeschichtet in blau |
| Series | BluBird |
| Max. operating pressure | 20 bar |
| Area of application | for compressed air |
| Mounting options | Wall, floor or ceiling mounting |
| Operating temperature min. | -45 °C |
| Operating temperature max. | 85 °C |
| Soul | Rubber |
| Inlays | Fabric inserts |
| Outer ceiling | Rubber |
| Outer hose Ø | 20 mm |
| Hose Ø inside | 13 mm |
| Hose length | 15 m |
| Entrance | G 1/2 IG |
| Output | G 1/2 IG |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Theme shop | SAFETY |
| Class name | PLUS |
