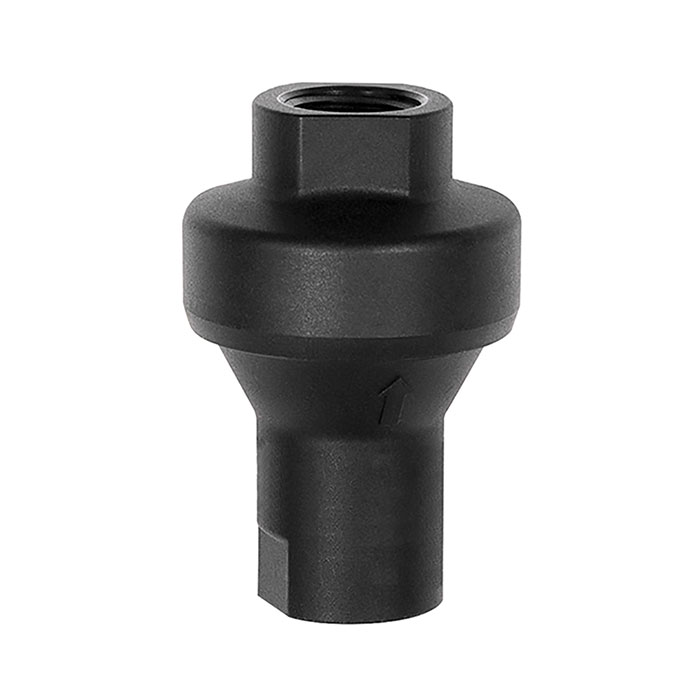

RIEGLER Inline pressure regulator for drinking water G 1/4, pre-set 3 bar
Typennummer: 639.03-T
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Inline pressure regulator for drinking water made of GV-5 FWA, max. 10 bar, G 1/4 - Type 639.03-T
The RIEGLER inline pressure regulator for drinking water, without venting, G 1/4, 3 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of GV-5 FWA with FPM seals. Designed for a maximum operating pressure of 10 bar. The temperature range is between 4 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 4 l/min (at P1 = 10 bar and pressure drop Δp = 0.8 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Temperature range min. | 4 °C |
| Temperature range max. | 60 °C |
| Housing | GV-5 FWA |
| Sealing material | FPM |
| Flow rate measurement | at P<sub>1</sub> = 10 bar and pressure drop ˆ†<sub>p</sub>= 0.8 bar |
| Series | inline |
| Max. operating pressure | 10 bar |
| Interior parts | Stainless steel DIN 1.4404 / AISI 316L |
| Thread | G 1/4 |
| Flow rate | 4 l/min |
| Working pressure (preset) | 3 bar |
| SW | 17 mm |
| A | 34 mm |
| B | 52 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

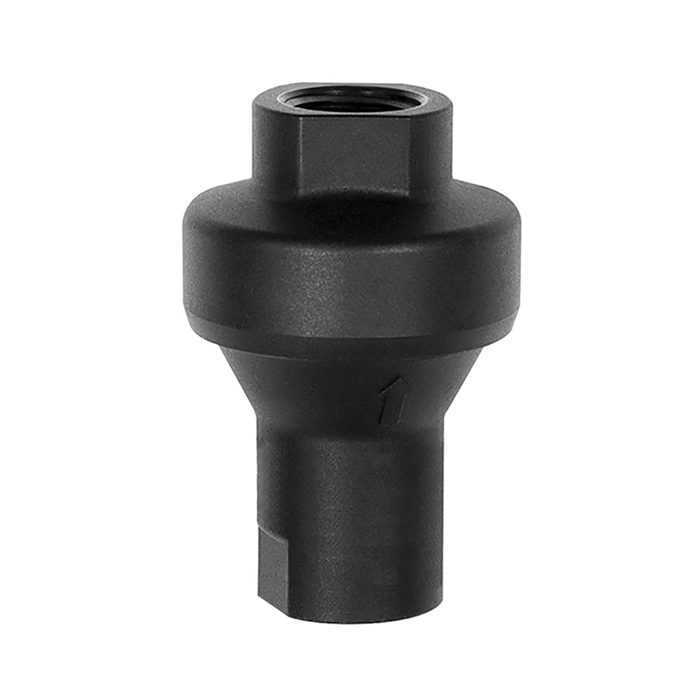

![[150638] RIEGLER Inline pressure regulator for drinking water G 1/4, pre-set 1 bar](/web/image/product.template/211189/image_128/%5B150638%5D%20RIEGLER%20Inline%20pressure%20regulator%20for%20drinking%20water%20G%201-4%2C%20pre-set%201%20bar?unique=3aff3a7)
|
