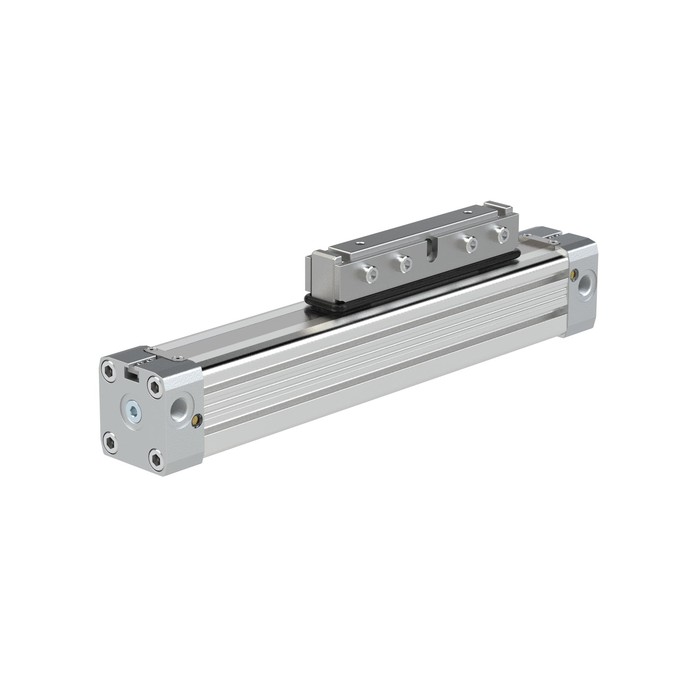

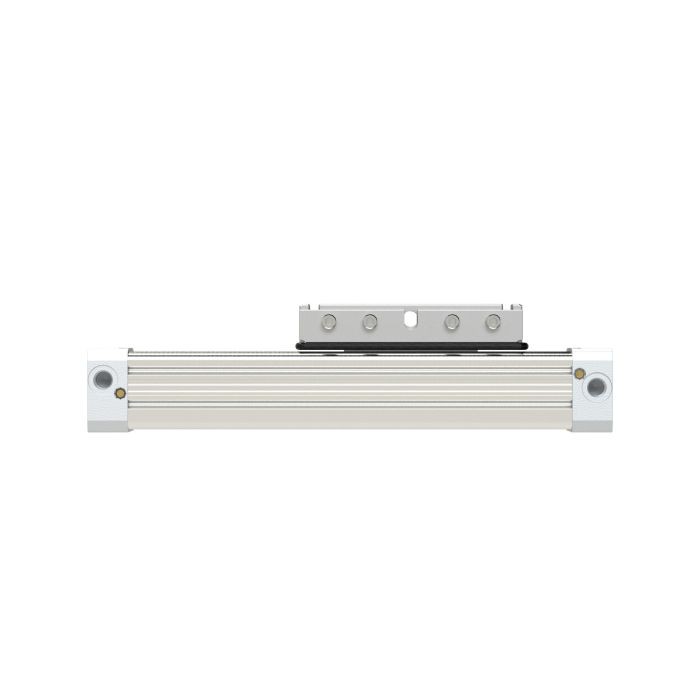

RIEGLER Piston rod l. Cyl. ZRL1C, Ø 40, stroke 1300, standard
Type number: ZRL1C.401300
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Piston rod l. Cyl. ZRL1C for automation technology, max. 8 bar, G 1/4 - Type ZRL1C.401300
The RIEGLER piston rod link. Cyl. ZRL1C, Ø 40, stroke 1300, standard generates linear movement without extending piston rod - saves installation space. with seals made of oil-resistant plastic (NBR). The operating pressure range is 0.5 bar to 8 bar. The temperature range is between -10 °C and 80 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for filtered compressed air (max. 50 µm). With piston Ø 40 mm, stroke 1300 mm - for powerful linear drive solutions. Compact design for space-saving automation.
Field of application
Typical areas of application: Packaging technology, handling and long strokes.
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Filtered compressed air (max. 50 µm) |
| Sealing material | Oil-resistant plastic (NBR) |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 8 bar |
| Installation position | any |
| Sealing tapes | Stainless steel |
| Piston Ø | 40 mm |
| Function | double-acting |
| Stroke | 1300 mm |
| Connection | G 1/4 |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
| Piston caps and sliding parts | abrasion-resistant plastic |
| Air connection | 3-fold on both sides |
| Screws | Steel 10.9 galvanized |
| Load clutch | Rigid |
