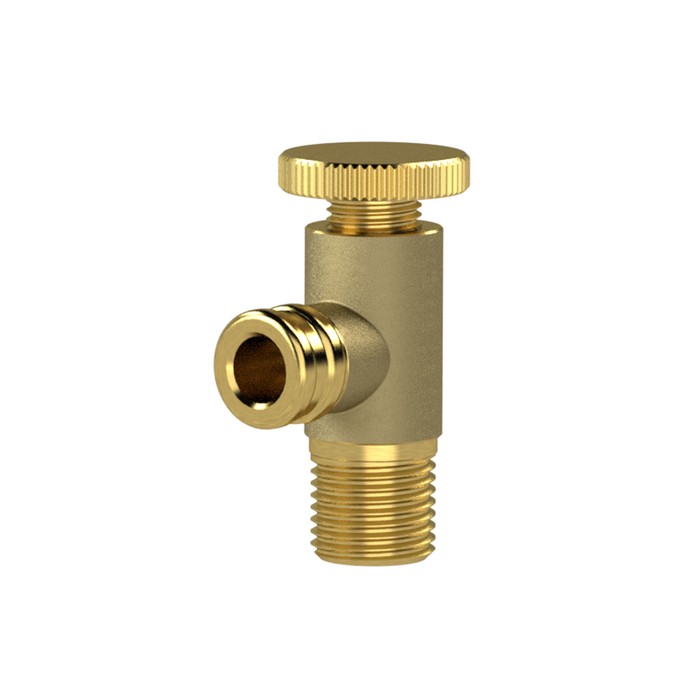

RIEGLER drain and vent valve, brass, angle shape, G 1/4
Type number: 223.30-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Drain and vent valve made of brass, for industrial systems, max. 25 bar - Type 223.30-1
The RIEGLER drain and vent valve, brass, angle shape, G 1/4 regulates or blocks the flow of media in industrial pipelines. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 25 bar. The operating temperature is between 0 °C and 90 °C. G 1/4 connection thread - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Sealing material | NBR |
| Max. operating pressure | 25 bar |
| Material | Brass |
| Installation position | any |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1/4 |
| DN | 5 mm |
| Length | 32.5 mm |
| Execution | with grommet (for hose LW 12) and knurled screw |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | PLUS |
| Construction method | Corner shape |
