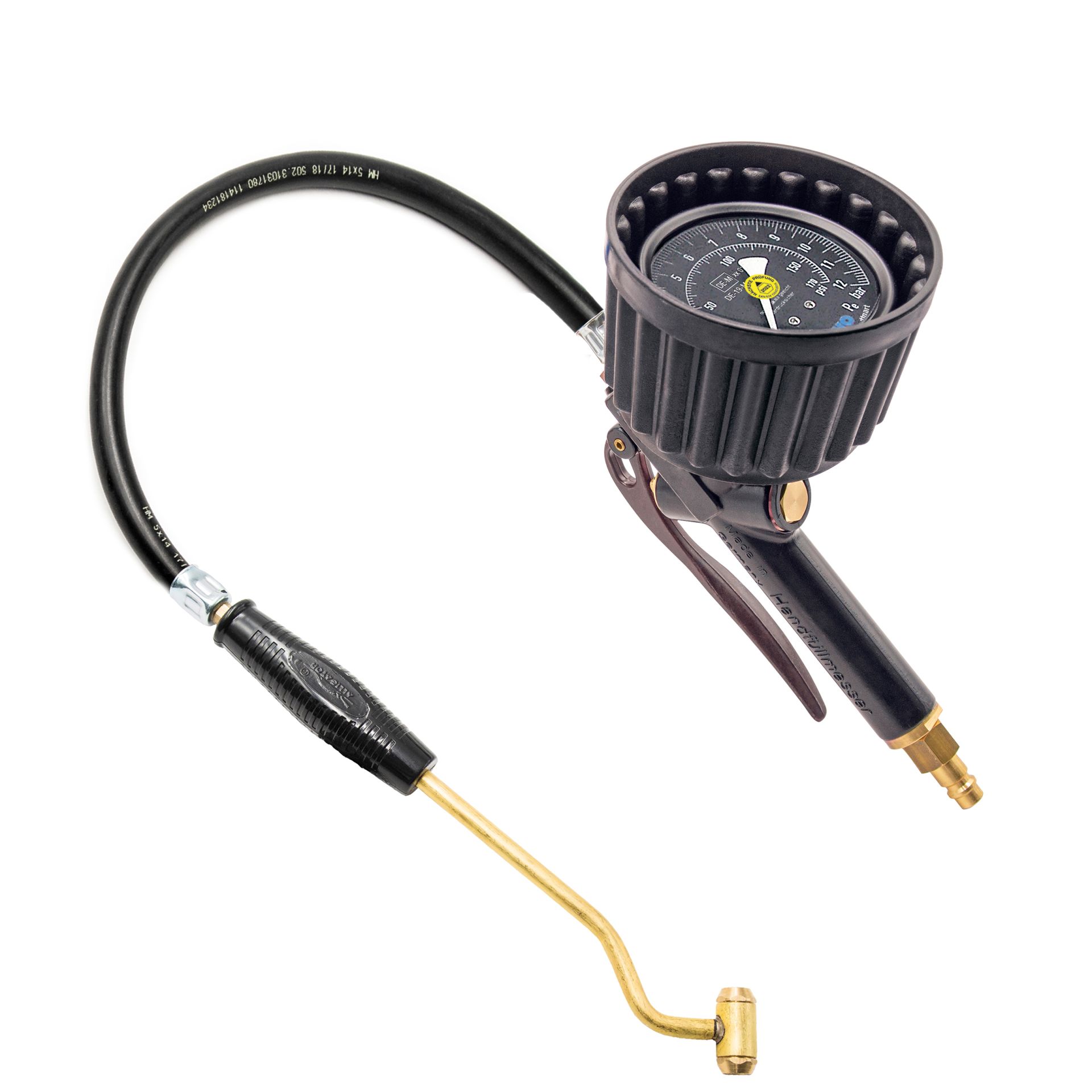

EWO hand-held tire inflator euroair, gas station plug, hose: 0.5 m, manometer Ø80 mm, MOP: 12 bar, conformity assessed
The classic tire inflator with Ø 80 mm pressure gauge and double scale with offset double filling station plug, easy handling and single-lever operation for re-inflation and deflation (half-pressed). 0 - 12 bar, with conformity test! (calibrated)
Since 1914, Hermann Holzapfel GmbH & Co KG in Stuttgart has been developing and manufacturing products for compressed air treatment, compressed air accessories, workshop air service, as well as autogenous and propane welding technology
EWO hand tire inflator - euroair - 151.2231 with conformity test (calibrated)
The EWO manual tire gauge - euroair - 151.2231 is a tried and tested professional device equipped with an offset double filling station plug and is ideal for use in filling stations and workshops.
All air requirements can be easily covered by connecting to the air network. The manual filling gauge enables easy refilling during assembly work as well as releasing the air pressure using a user-friendly single-lever operation. The pressure range of 0 to 12 bar ensures universal applicability. The connection is made via a DN 7.2 coupling plug, and the rotatable filling hose offers additional flexibility and convenience.
| Min. operating temperature (°C) | -10 |
| Max. Operating temperature (°C) | +60 |
| Pressure range (bar) | 0 - 12 |
| Compressed air connection | Coupling plug DN 7.2 |
| Calibration approval | Recalibration interval 2 years |
| Conformity evaluation | In accordance with the Measurement and Verification Act and the Measurement and Verification Ordinance |
| Manometer | Ø 80, horizontal, with double scale, PE protective cap, overpressure-proof up to final value × 1.3, display accuracy to DIN EN 12645 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

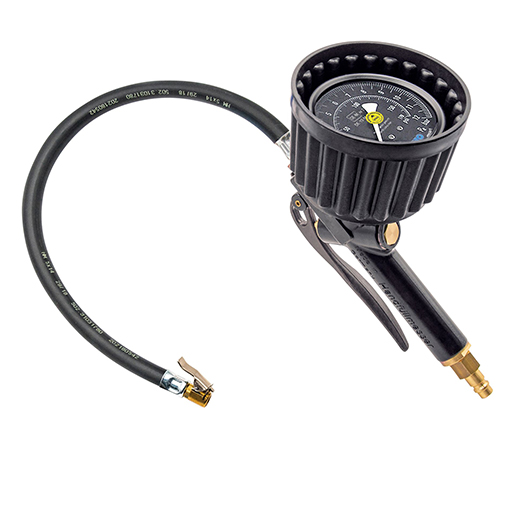

![[151.2221] EWO hand-held tire inflation gauge euroair, instant connector, hose: 0.5 m, manometer Ø80 mm, MOP: 12 bar, conformity assessed](/web/image/product.template/217116/image_128/%5B151.2221%5D%20EWO%20hand-held%20tire%20inflation%20gauge%20euroair%2C%20instant%20connector%2C%20hose:%200.5%20m%2C%20manometer%20%C3%9880%20mm%2C%20MOP:%2012%20bar%2C%20conformity%20assessed?unique=cdea507)
|
The classic tire inflator with pressure gauge Ø 80 mm and dual scale with quick-connect coupler, easy to use and with a single lever for refilling and releasing air (half-pressed). 0 - 12 bar, with conformity inspection! (verified ) |
142.80 € | |

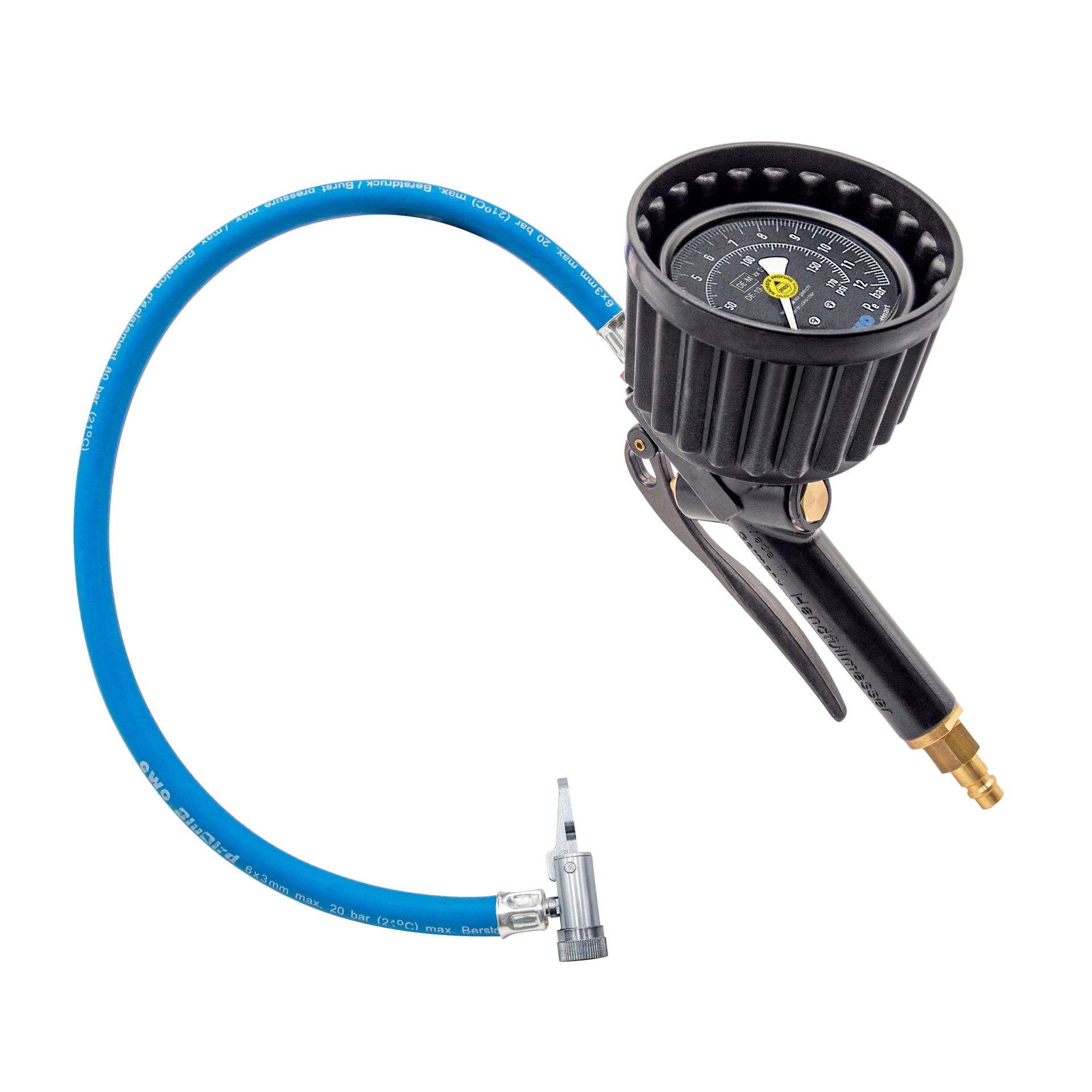

![[151.2211] EWO hand-held tire inflation gauge euroair, lever plug, hose: 0.5 m, manometer Ø80 mm, MOP: 12 bar, conformity assessed](/web/image/product.template/217115/image_128/%5B151.2211%5D%20EWO%20hand-held%20tire%20inflation%20gauge%20euroair%2C%20lever%20plug%2C%20hose:%200.5%20m%2C%20manometer%20%C3%9880%20mm%2C%20MOP:%2012%20bar%2C%20conformity%20assessed?unique=f4b74a3)
|
The classic tire inflator with pressure gauge Ø 80 and dual scale with proven lever plug, easy to use and with single-lever operation for refilling and releasing (half-pressed). 0-12 bar, with conformity test! (calibrated)
|
142.80 € | |
