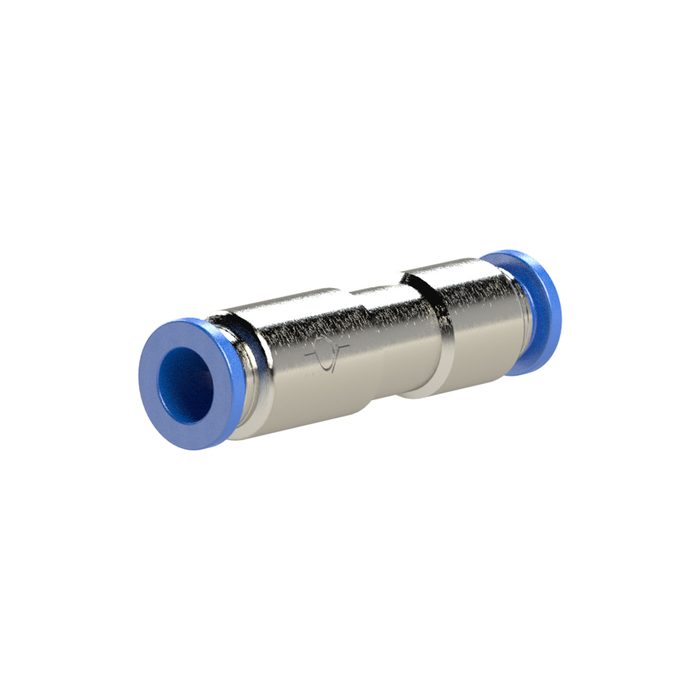

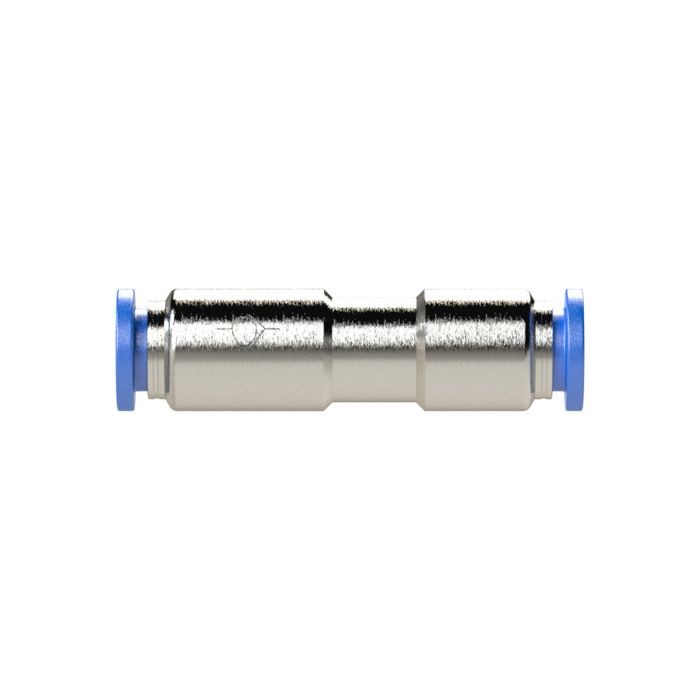

RIEGLER Straight check valve »Blue Series«, Plug connector, hose ext. Ø 8
Typennummer: 204.08-2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight non-return valve "Blue series", push-in connection, for hose outer Ø 8 mm, pmax. 10 bar, nickel-plated brass
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Opening pressure min. | 0.2 bar |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 8 mm |
| Execution | With plug-in connection |
| L1 | 53.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

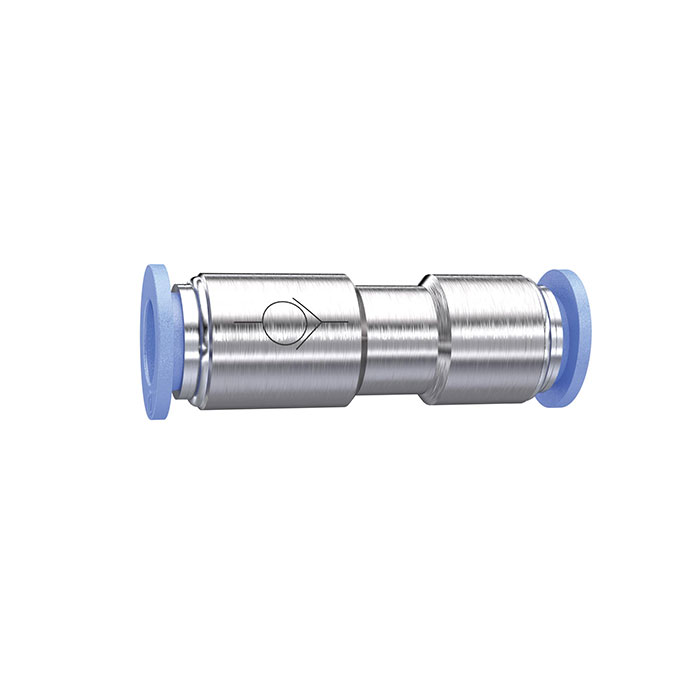

![[151531] RIEGLER Straight check valve »Blue Series«, Plug connector, hose ext. Ø10](/web/image/product.template/210686/image_128/%5B151531%5D%20RIEGLER%20Straight%20check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Plug%20connector%2C%20hose%20ext.%20%C3%9810?unique=c20f29c)
|
