RIEGLER Hose reel, PUR hose ø 12x8, R 1/4 ET, Length 10 m
Typennummer: 259/5000-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hose reel for compressed air distribution, max. 16 bar - Type 259/5000-1
The RIEGLER hose reel, compressed air, PU hose ø 12x8, R 1/4 AG, 10 m rolls up the compressed air hose automatically - for tidiness at the workplace. Designed for a maximum operating pressure of 16 bar. The operating temperature is between -20 °C and 60 °C. Hose Ø 8x12 mm, hose length 10 m. Automatic retraction for tidiness and quick readiness for use.
Field of application
Typical areas of application: Workshop, production and automotive operations.
| Max. operating pressure | 16 bar |
| Area of application | for compressed air |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Hose | fabric-reinforced polyurethane |
| Swivelling | 180 ° |
| Hose Ø | 8x12 mm |
| Hose length | 10 m |
| A | 406 mm |
| B | 313 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

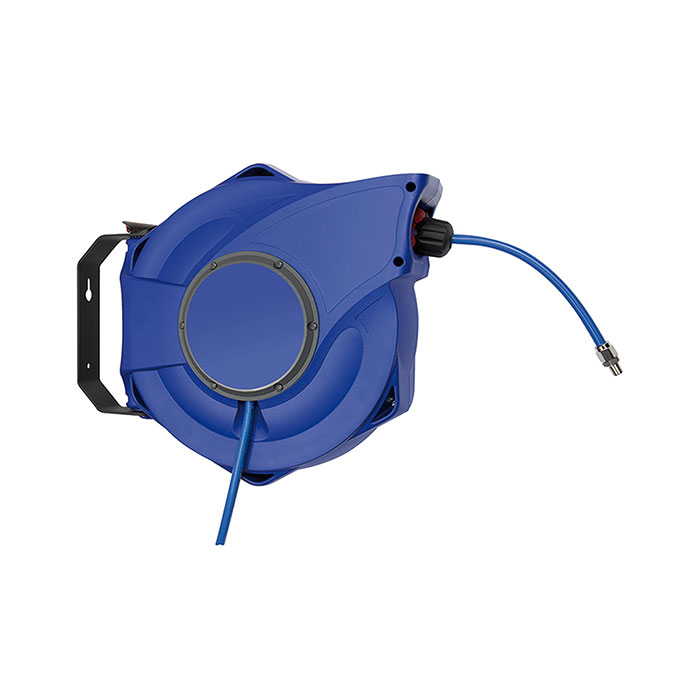

![[152310] RIEGLER Hose reel, PUR hose ø 12x8, R 1/4 ET, Length 17 m](/web/image/product.template/211168/image_128/%5B152310%5D%20RIEGLER%20Hose%20reel%2C%20PUR%20hose%20%C3%B8%2012x8%2C%20R%201-4%20ET%2C%20Length%2017%20m?unique=f0c1ad5)
|
Typennummer: 259/5100-1 |
374.65 € | |

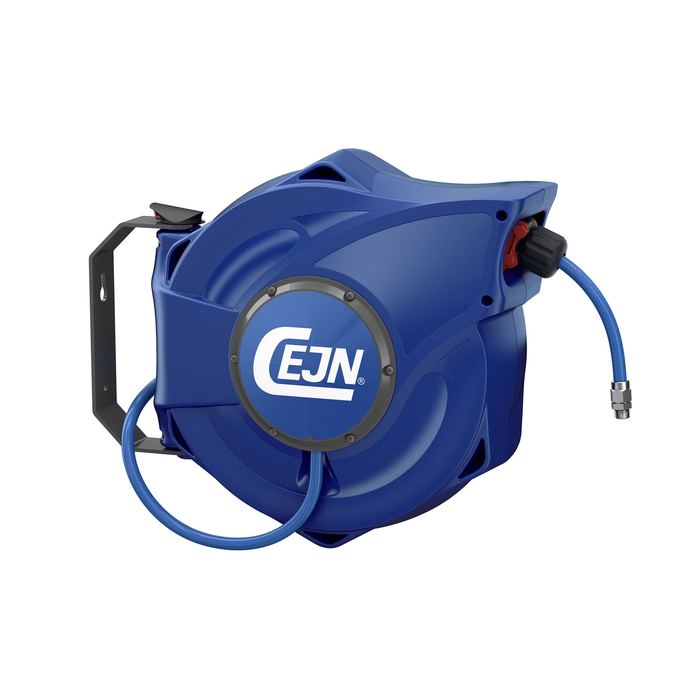

![[152315] RIEGLER Hose reel, PUR hose ø 12x8, R 1/4 ET, Length 7 m](/web/image/product.template/211171/image_128/%5B152315%5D%20RIEGLER%20Hose%20reel%2C%20PUR%20hose%20%C3%B8%2012x8%2C%20R%201-4%20ET%2C%20Length%207%20m?unique=b8fdab4)
|
