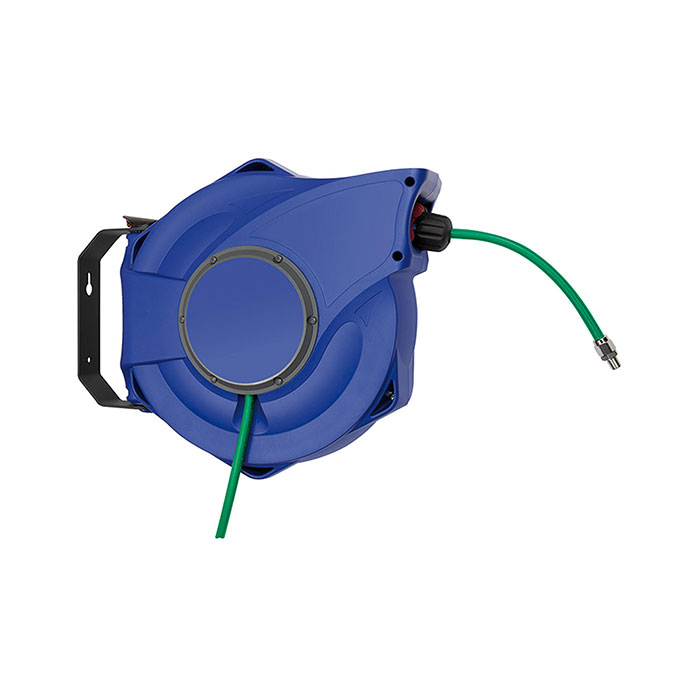

RIEGLER Hose reel, water, PVC hose ø 13.5x9.5, Hose length 14 m
Typennummer: 259/4400-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hose reel for compressed air distribution, max. 9 bar - Type 259/4400-1
The RIEGLER hose reel, water, PVC hose ø 13.5 x 9.5, length 14 m rolls up the compressed air hose automatically - for tidiness at the workplace. Designed for a maximum operating pressure of 9 bar. The operating temperature is between 5 °C and 60 °C. Hose Ø 9.5x13.5 mm, hose length 14 m. Automatic retraction for tidiness and quick readiness for use.
Field of application
Typical areas of application: Workshop, production and automotive operations.
| Max. operating pressure | 9 bar |
| Area of application | for water |
| Operating temperature min. | 5 °C |
| Operating temperature max. | 60 °C |
| Hose | fabric-reinforced PVC |
| Swivelling | 180 ° |
| Hose Ø | 9.5x13.5 mm |
| Hose length | 14 m |
| A | 490 mm |
| B | 409 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | FLEX |
