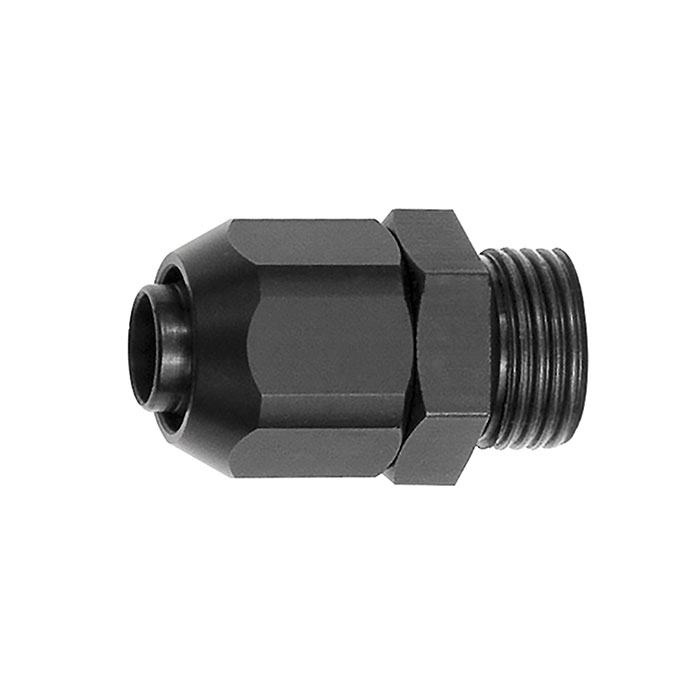

RIEGLER Screw-in fitting for PVC pneumatic hose 13x17.6, G 1/2
Typennummer: 11.0425/2-1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Screw-in fitting for PVC pneumatic hose 13x17.6, Aluminium, Temperature -10 °C to 70 °C, PN -0,95 - 15 bar, G 1/2
| Medium | Air |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 15 bar |
| Material | Aluminum |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Thread | G 1/2 |
| SW 1 | 24 mm |
| SW | 24 mm |
| for PVC hose | 13x17,6 |
| L | 38 mm |
| L1 | 21 mm |
| L2 | 11 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | AW-2011 |
| Class name | FLEX |
