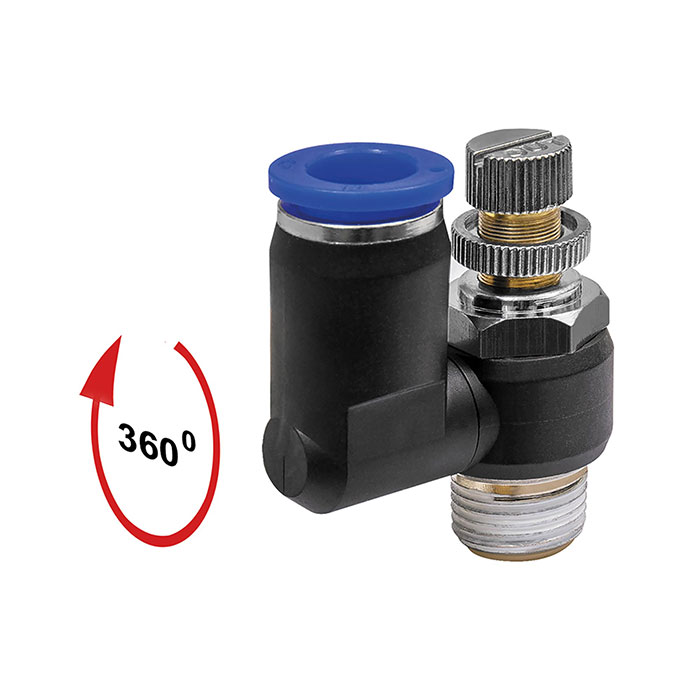

RIEGLER Throttle check valve »Blue Series«, Supply air throttle, M5 o.
Typennummer: 298.005-4-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Throttle check valve "Blue Series", supply air throttle, M5 a., for external Ø 4 mm, pmax short-time 15 bar, plastic/MS nickel-plated.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M5 |
| SW | 8 mm |
| for hose outer Ø | 4 mm |

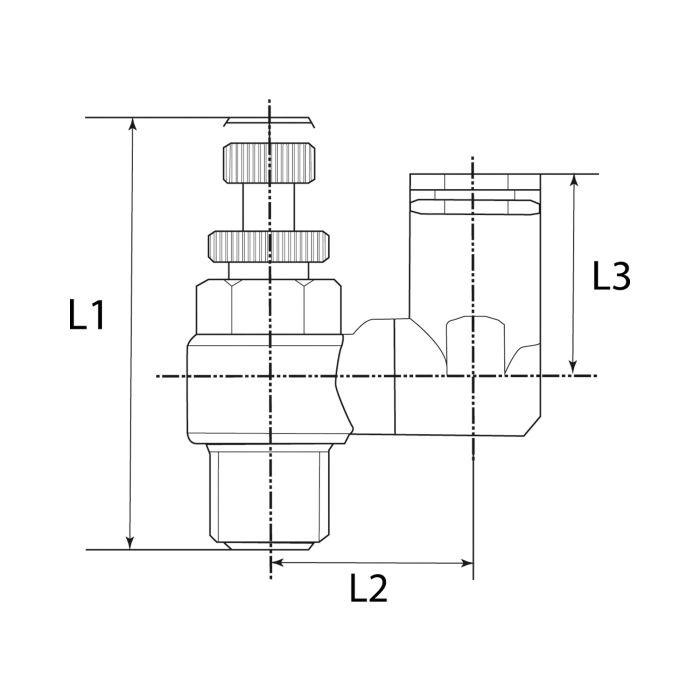

| L1 | 28 mm |
| L2 | 14.5 mm |
| L3 | 25.5 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
