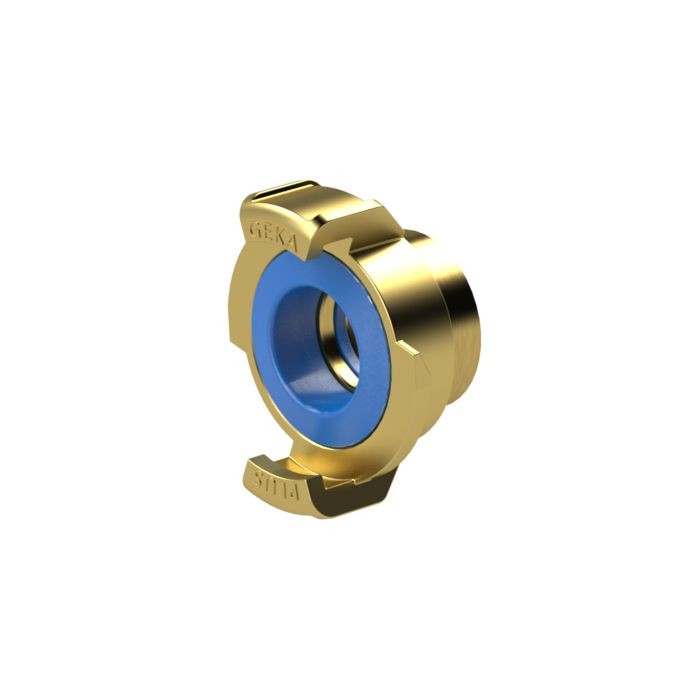

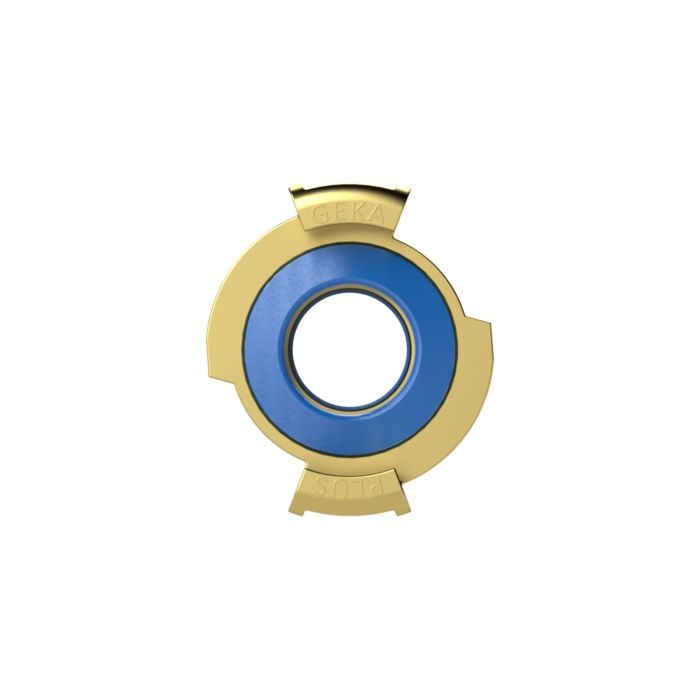

RIEGLER GEKA Hose Fitting, Rigid, Drinking Water, MS Lead-Free, G 1 IG
Part Number: MB.K 113-KTW
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER GEKA Hose Fitting (GEKA Coupling) for water and compressed air applications – Type K 113-KTW.MSB
The RIEGLER GEKA hose connector, rigid, drinking water, MS lead-free, G 1 IG connects hoses quickly, securely, and without tools using the proven claw principle. The seals are made of EPDM for drinking water. The permissible medium temperature ranges from -10 °C to 90 °C. G 1 IG connection—compatible with common industry standards. GEKA coupling for drinking water made of lead-free brass (Pb < 0.1%) with KTW approval; permissible medium and ambient temperatures range from -10 °C to +90 °C. The standardized claw profile is compatible with all GEKA couplings.
Scope of Application
Typical applications: GEKA hose fittings, garden hose couplings, and GEKA couplings in compressed air and pneumatic systems.
| Sealing material | EPDM for drinking water |
| Max. operating pressure | 40 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| KTW authorisation | according to D2 and long-term test result DVGW W270 |
| Connection | G 1 IG |
| RoHS material information | Rohs compliant |
| REACH Info | no SVHC substance included |
| Class name | FLEX |
| Lead-free brass (lead content <0.1%) | yes |
