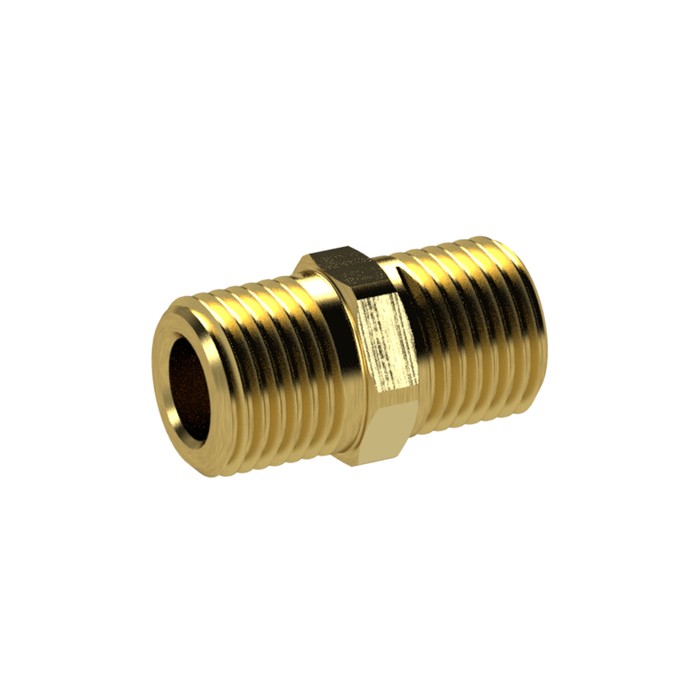

RIEGLER double threaded nipple, G 1/2 a., G 3/8 a. LH, SW 24, brass
Type number: DGN.12.38LH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Double threaded nipple made of brass CW614N, for pipeline construction, max. 60 bar - type DGN.12.38LH
The RIEGLER double threaded nipple, G 1/2 a., G 3/8 a. LH, SW 24, brass connects two female threaded connections of the same or different sizes. The housing is made of brass CW614N. Designed for a maximum operating pressure of 60 bar. Universal adapter for various thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Working pressure max. | 60 bar |
| Material | Brass CW614N |
| Operating temperature max. | 200 °C |
| SW | 24 mm |
| L1 | 26 mm |
| L2 | 11 mm |
| Thread 1 | G 1/2 AG |
| Thread 2 | G 3/8 AG links |
| L3 | 9 mm |
| Class name | PLUS |
