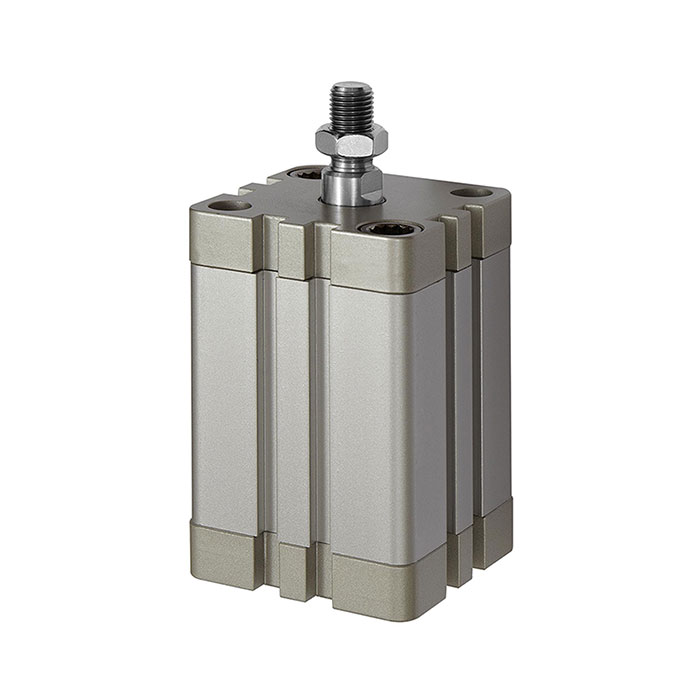

RIEGLER Comp. cyl., double-acting, Piston Ø 63, Stroke 225, G1/8,ISO21287
Type number: 15.DMA.63225
EAN: 4047322621045
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact cylinder, ISO 21287, double-acting, male, solenoid, piston Ø 63, stroke 225, G 1/8, max. working pressure 10 bar, temp. -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ACE series |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with T-slots, anodized |
| Piston Ø | 63 mm |
| Function | double-acting |
| Stroke | 225 mm |
| Piston rods AG | M12x1.25 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | Steel S45C, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 21287 |
| Thread piston rod | External thread on the piston rod |
