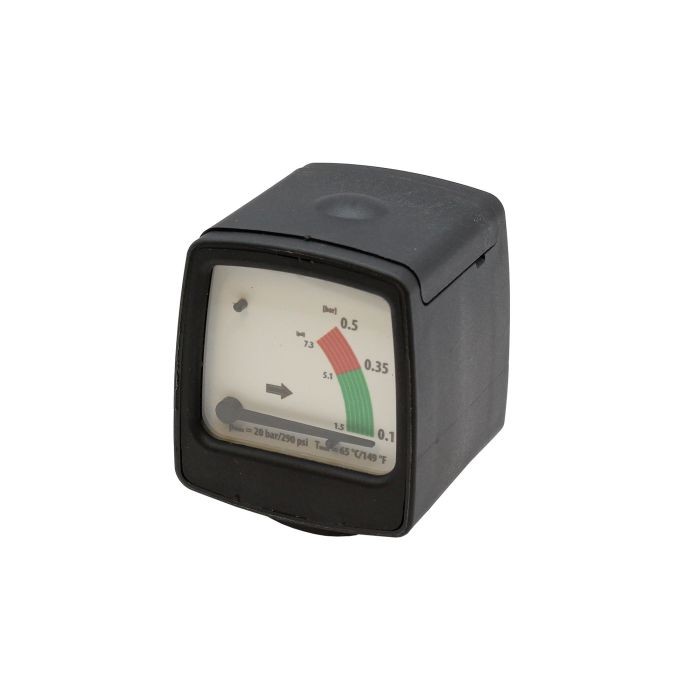

RIEGLER Differential Pressure Gauge, Square, for the FUTURA and multifix Series
Model Number: DM 34-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Differential Pressure Gauge – Type DM 34-1
The RIEGLER differential pressure gauge, square, for the FUTURA and multifix series, stands out for its high-quality construction and reliable performance. The DM 34-1 measures the pressure differential between the inlet and outlet of the filter to which it is mounted, allowing the degree of contamination to be read directly: When the pressure drop reaches 0.35 bar (the start of the red scale range), the filter element should be replaced. Designed for reliable, continuous use in industrial and trade applications.
Scope of Application
Typical applications: Differential pressure gauges in compressed air and pneumatic systems.
| Inlet pressure max. | 20 bar |
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Installation position | senkrecht |
| Display range of the | 0 bar |
| Display range of the | 0.5 bar |
| A | 54 mm |
| B | 65 mm |
| Execution | with 2 M5 screws and 2 seals |
| Connection | Flange mounting |
| Theme shop | SAFETY |
| A1 | 24 mm |
