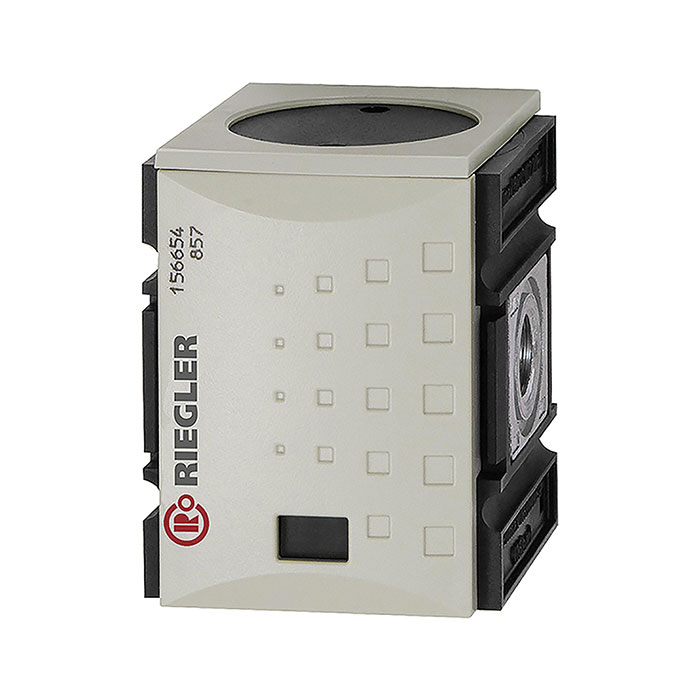

RIEGLER Check valve »FUTURA«, Size 1, G 3/8
Typennummer: FU 9402
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Non-return valve "FUTURA" made of PA66 GF60, for compressed air treatment, G 3/8 - type FU 9402
The RIEGLER non-return valve "FUTURA", BG 1, G 3/8 adds additional functions to modular maintenance systems. The housing is made of PA66 GF60 with NBR seals. The maximum inlet pressure is 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 1250 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 0.4 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Thread | G 3/8 |
| Flow rate | 1250 l/min |
| BG | 1 |
| A | 52 mm |
| B | 66.8 mm |
| C | 34 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156654] RIEGLER Check valve »FUTURA«, Size 1, G 1/4](/web/image/product.template/213390/image_128/%5B156654%5D%20RIEGLER%20Check%20valve%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20G%201-4?unique=415f060)
|
Typennummer: FU 9401 |
36.50 € | |
![[139312] RIEGLER Check valve »FUTURA«, Size 2, G 1/2](/web/image/product.template/207973/image_128/%5B139312%5D%20RIEGLER%20Check%20valve%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2?unique=2fe1809)
|
Type number: FU 9404 |
44.68 € | |

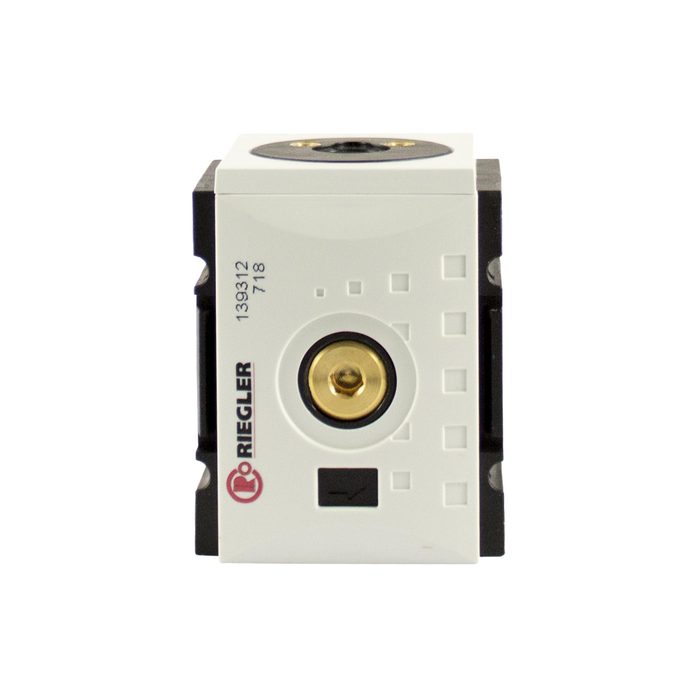

![[139311] RIEGLER Check valve »FUTURA«, Size 2, G 3/8](/web/image/product.template/207972/image_128/%5B139311%5D%20RIEGLER%20Check%20valve%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8?unique=6022306)
|
