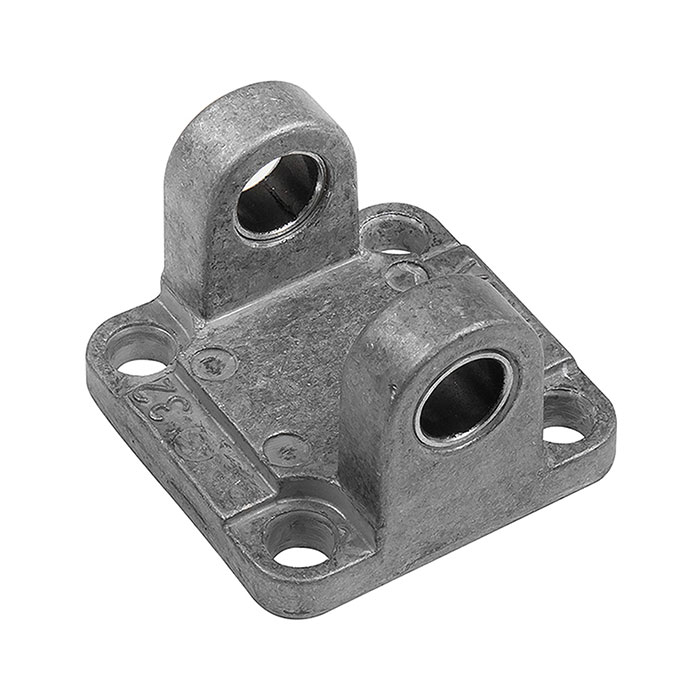

RIEGLER Female hinge model with bushes, ISO 15552, ISO 21287, Ø50
Typennummer: 453.014
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel fork mounting with aluminum bushes, for automation technology - Type 453.014
The RIEGLER swivel fork mount with bushes, ISO 15552, ISO 21287, Ø50 enables flexible and secure mounting of pneumatic cylinders. The housing is made of aluminum. Flexible mounting options for various installation positions.
Field of application
Typical areas of application: Cylinder assembly on machines, frames and systems.
| Material | Aluminum |
| Note | with sockets |
| Execution | with 4 screws, 1 bolt and lock |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| for cylinders | ISO 15552, ISO 21287 |
| suitable for piston Ø | 50 mm |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
