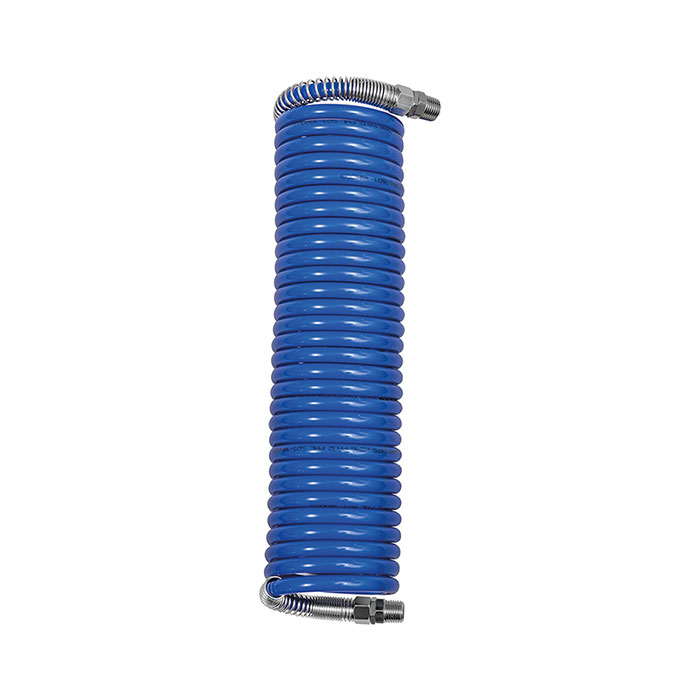

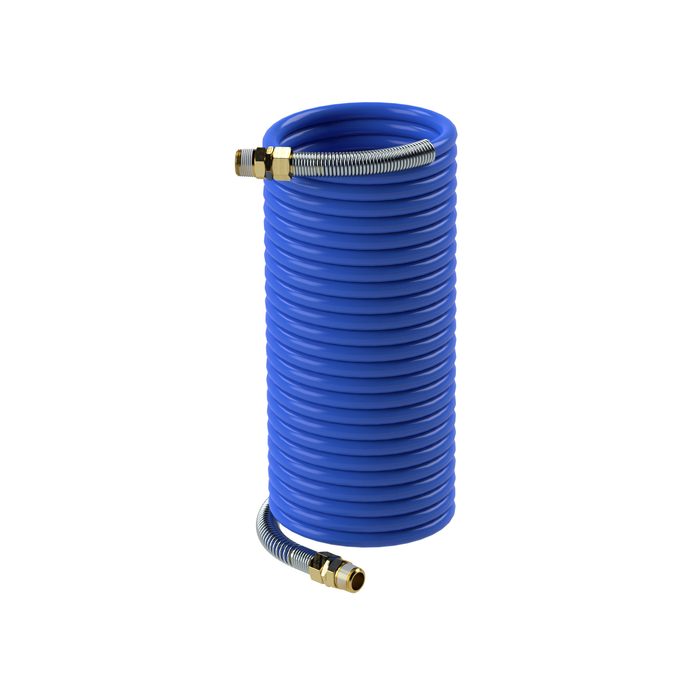

RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 10x8, 2.5 m
Typennummer: SP10250PA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spiral hose for compressed air distribution, R 1/4 - type SP10250PA
The RIEGLER spiral hose, screw connection, polyamide, R 1/4, ø 10x8, 2.5 m conducts compressed air flexibly and reliably from the compressor to the consumer. The operating temperature is between -40 °C and 80 °C. R 1/4 connection thread - suitable for common industry standards. Hose Ø 10x8 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Operating temperature min. | -40 °C |
| Operating temperature max. | 80 °C |
| Thread | R 1/4 |
| Hose Ø | 10x8 mm |
| Outer spiral Ø | 118 mm |
| Windings | 9 |
| Working length max. | 2.5 m |
| Max. operating pressure at 23 °C | 15 bar |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
