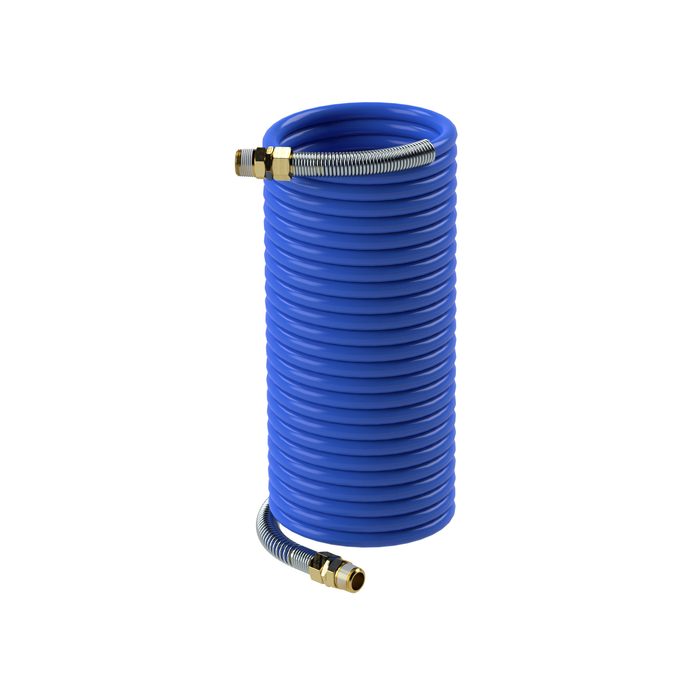

RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 10x8, 7.5 m
Typennummer: SP10750PA
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Spiral hose, fitting and kink protection spring, rotating, polyamide, R 1/4, hose Ø 10x8, PN at 23 °C max. 15 bar, length 7.5 m
| Operating temperature min. | -40 °C |
| Operating temperature max. | 80 °C |
| Thread | R 1/4 |
| Hose Ø | 10x8 mm |
| Outer spiral Ø | 118 mm |
| Windings | 28 |
| Working length max. | 7.5 m |
| Max. operating pressure at 23 °C | 15 bar |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[158121] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 10x8, 10.0 m](/web/image/product.template/214612/image_128/%5B158121%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%2010x8%2C%2010.0%20m?unique=94946cf)
|
Typennummer: SP101000PA |
82.59 € | |
![[158118] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 10x8, 2.5 m](/web/image/product.template/214609/image_128/%5B158118%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%2010x8%2C%202.5%20m?unique=405e738)
|
Typennummer: SP10250PA |
37.66 € | |
![[158119] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 10x8, 5.0 m](/web/image/product.template/214610/image_128/%5B158119%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%2010x8%2C%205.0%20m?unique=b60f471)
|
Typennummer: SP10500PA |
50.65 € | |
![[158113] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 6x4, 10.0 m](/web/image/product.template/214604/image_128/%5B158113%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%206x4%2C%2010.0%20m?unique=f083420)
|
Typennummer: SP61000PA |
57.57 € | |
![[158110] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 6x4, 2.5 m](/web/image/product.template/214601/image_128/%5B158110%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%206x4%2C%202.5%20m?unique=f4e16d5)
|
Typennummer: SP6250PA |
30.35 € | |
![[158111] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 6x4, 5.0 m](/web/image/product.template/214602/image_128/%5B158111%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%206x4%2C%205.0%20m?unique=7e6d765)
|
Typennummer: SP6500PA |
41.19 € | |
![[158112] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 6x4, 7.5 m](/web/image/product.template/214603/image_128/%5B158112%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%206x4%2C%207.5%20m?unique=ff51b7a)
|
Typennummer: SP6750PA |
50.04 € | |
![[158117] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 8x6, 10.0 m](/web/image/product.template/214608/image_128/%5B158117%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%208x6%2C%2010.0%20m?unique=e1f2350)
|
Typennummer: SP81000PA |
62.05 € | |
![[158114] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 8x6, 2.5 m](/web/image/product.template/214605/image_128/%5B158114%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%208x6%2C%202.5%20m?unique=52de72e)
|
Typennummer: SP8250PA |
30.93 € | |
![[158115] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 8x6, 5.0 m](/web/image/product.template/214606/image_128/%5B158115%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%208x6%2C%205.0%20m?unique=2474d92)
|
Typennummer: SP8500PA |
44.39 € | |
![[158116] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 8x6, 7.5 m](/web/image/product.template/214607/image_128/%5B158116%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%208x6%2C%207.5%20m?unique=1b05c65)
|
Typennummer: SP8750PA |
51.03 € | |
![[158109] RIEGLER Spiral hose, Fitting, Polyamide, R 1/8, Hose Ø 5x3, 10.0 m](/web/image/product.template/214600/image_128/%5B158109%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-8%2C%20Hose%20%C3%98%205x3%2C%2010.0%20m?unique=ccf235f)
|
Typennummer: SP51000PA |
55.75 € | |
![[158106] RIEGLER Spiral hose, Fitting, Polyamide, R 1/8, Hose Ø 5x3, 2.5 m](/web/image/product.template/214597/image_128/%5B158106%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-8%2C%20Hose%20%C3%98%205x3%2C%202.5%20m?unique=0d0dc08)
|
Typennummer: SP5250PA |
30.44 € | |
![[158107] RIEGLER Spiral hose, Fitting, Polyamide, R 1/8, Hose Ø 5x3, 5.0 m](/web/image/product.template/214598/image_128/%5B158107%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-8%2C%20Hose%20%C3%98%205x3%2C%205.0%20m?unique=f5890ab)
|
Typennummer: SP5500PA |
41.19 € | |
![[158108] RIEGLER Spiral hose, Fitting, Polyamide, R 1/8, Hose Ø 5x3, 7.5 m](/web/image/product.template/214599/image_128/%5B158108%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-8%2C%20Hose%20%C3%98%205x3%2C%207.5%20m?unique=f31991c)
|
Typennummer: SP5750PA |
49.94 € | |

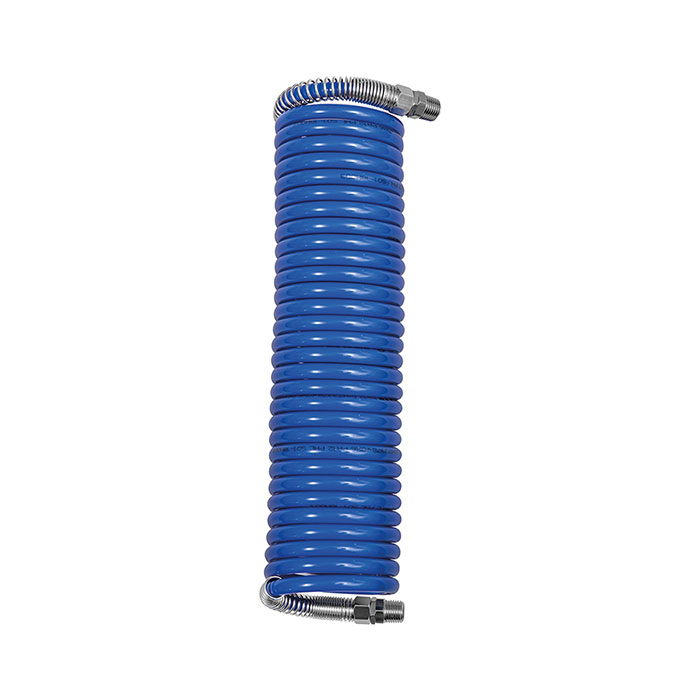

![[158125] RIEGLER Spiral hose, Fitting, Polyamide, R 3/8, Hose Ø 12x9, 10.0 m](/web/image/product.template/214616/image_128/%5B158125%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%203-8%2C%20Hose%20%C3%98%2012x9%2C%2010.0%20m?unique=5495635)
|
