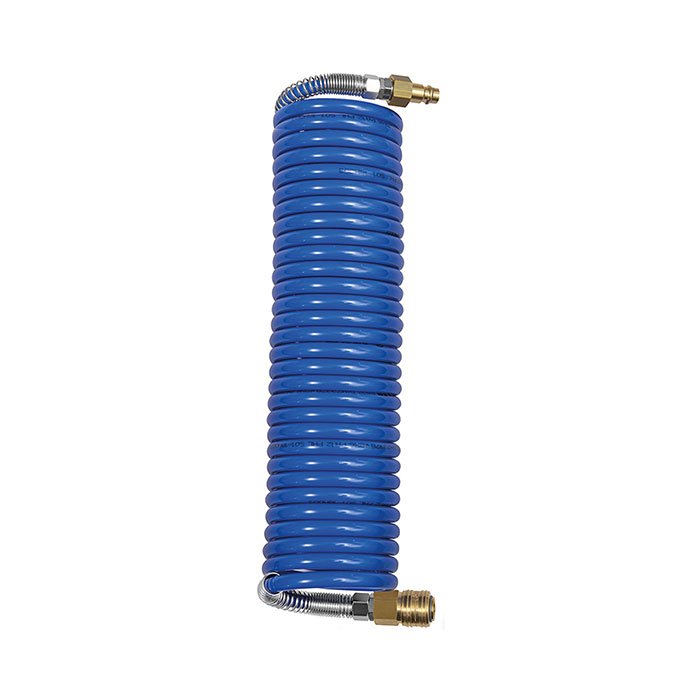

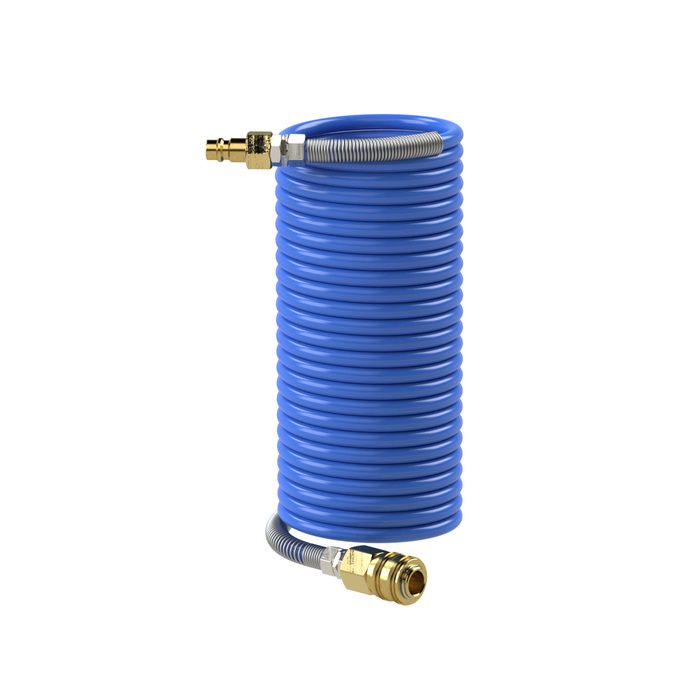

RIEGLER Spiral hose coupling set, Stand. coupl., PA, Hose Ø 8x6, 2.5 m
Type number: SP8250PASK
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spiral hose coupling set for compressed air distribution - type SP8250PASK
The RIEGLER spiral hose coupling set, standard coupling, PA, ø 8x6, 2.5 m conducts compressed air flexibly and reliably from the compressor to the consumer. The operating temperature is between -20 °C and 80 °C. Hose Ø 8x6 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Hose Ø | 8x6 mm |
| Outer spiral Ø | 90 mm |
| Windings | 13 |
| Working length max. | 2.5 m |
| Max. operating pressure at 23 °C | 19 bar |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

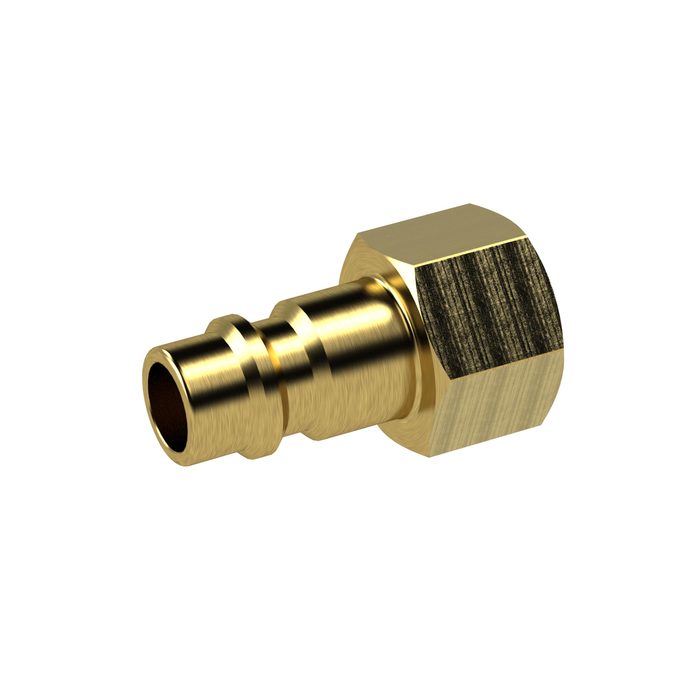

![[107242] RIEGLER Nipple for couplings I.D. 7.2 - 7.8, bright brass, G 1/4 IT](/web/image/product.template/176299/image_128/%5B107242%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8%2C%20bright%20brass%2C%20G%201-4%20IT?unique=f9a6d45)
|
Type number: 243.55 |
0.89 € | |

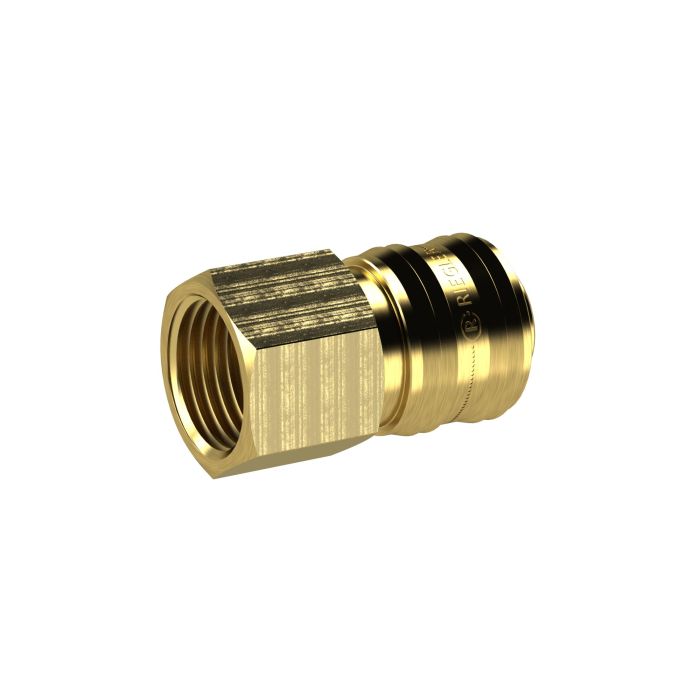

![[115618] RIEGLER Quick-connect coupling I.D. 7.2 »connect line«, G 1/4 IT](/web/image/product.template/200377/image_128/%5B115618%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.2%20%C2%BBconnect%20line%C2%AB%2C%20G%201-4%20IT?unique=13889a5)
|
Type number: 243.11-E |
2.89 € | |
![[158114] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 8x6, 2.5 m](/web/image/product.template/214605/image_128/%5B158114%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%208x6%2C%202.5%20m?unique=2f8005b)
|
Typennummer: SP8250PA |
30.70 € | |
