RIEGLER Spiral hose coupling set, Safety coupl., PA, Hose Ø 8x6, 10 m
Typennummer: SP81000PADSK
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

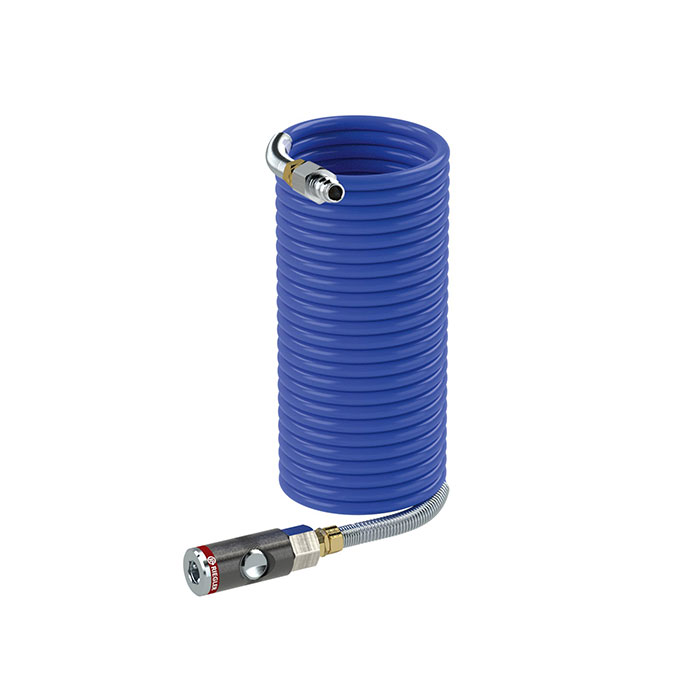

RIEGLER Spiral hose coupling set for compressed air distribution - type SP81000PADSK
The RIEGLER spiral hose coupling set, safety coupling, PA, ø 8x6, 10.0 m conducts compressed air flexibly and reliably from the compressor to the consumer. The operating temperature is between -20 °C and 70 °C. Hose Ø 8x6 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Hose Ø | 8x6 mm |
| Outer spiral Ø | 90 mm |
| Windings | 49 |
| Working length max. | 10 m |
| Max. operating pressure at 23 °C | 12 bar |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

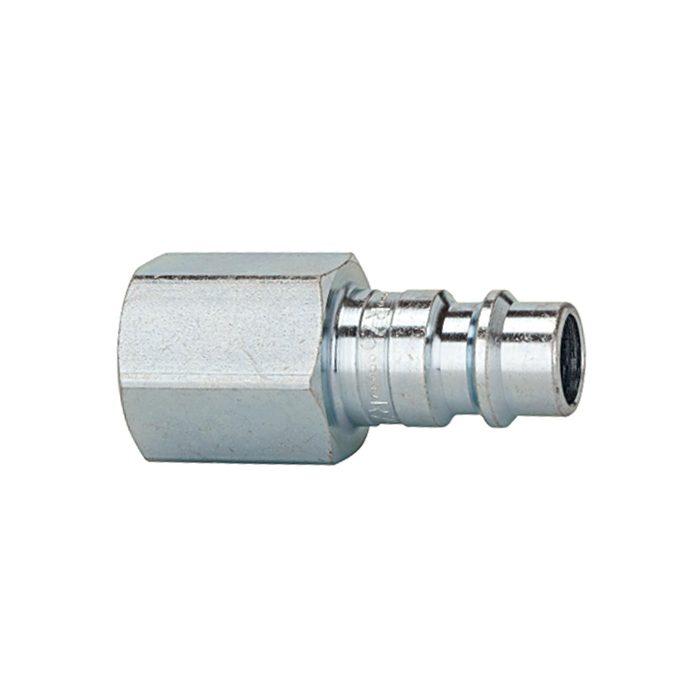

![[107551] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / galv. steel, G 1/4 IT](/web/image/product.template/191452/image_128/%5B107551%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20galv.%20steel%2C%20G%201-4%20IT?unique=36bddb2)
|
Type number: 243.55 ST |
2.96 € | |

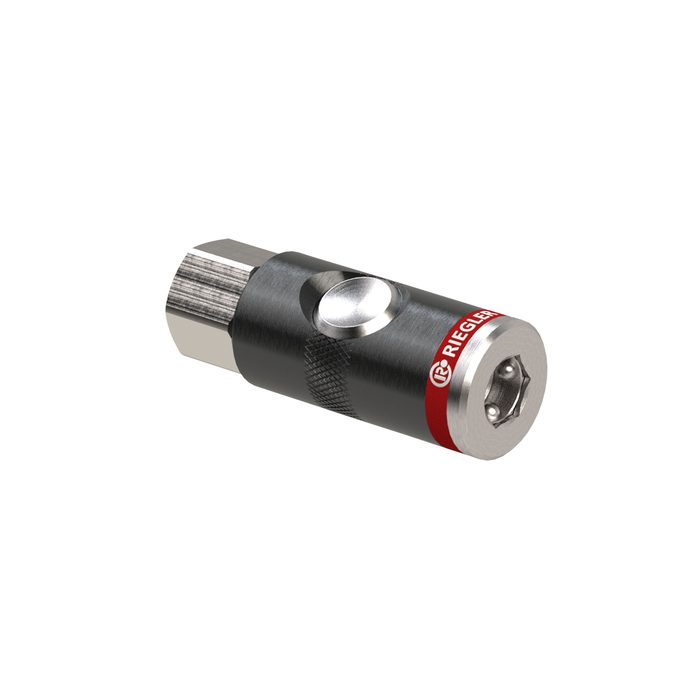

![[199979] RIEGLER Push-button safety coupling NW 7,4, G1/4IG](/web/image/product.template/267896/image_128/%5B199979%5D%20RIEGLER%20Push-button%20safety%20coupling%20NW%207%2C4%2C%20G1-4IG?unique=4c5d8e8)
|
Typennummer: DKSKIG14 |
18.09 € | |
![[158117] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 8x6, 10.0 m](/web/image/product.template/214608/image_128/%5B158117%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%208x6%2C%2010.0%20m?unique=a00a60d)
|
Typennummer: SP81000PA |
61.61 € | |
