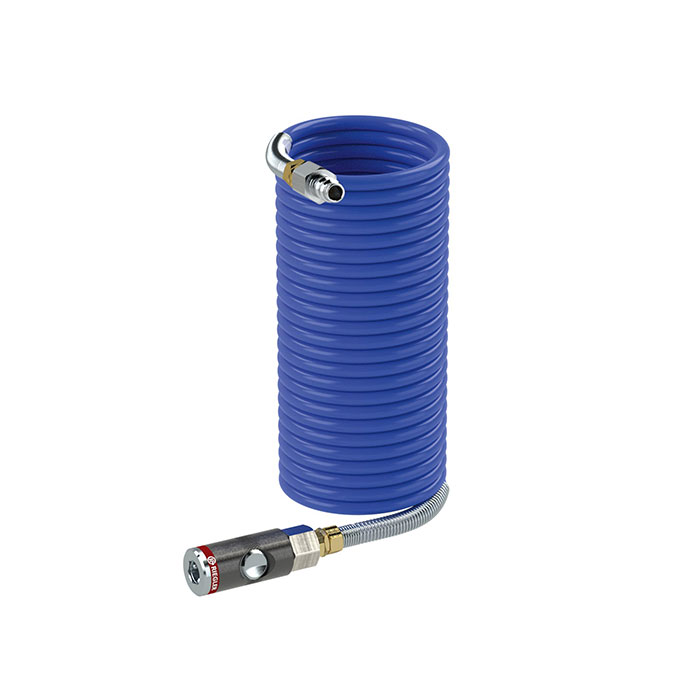

RIEGLER Spiral hose coupling set, Safety coup., PA, Hose Ø 10x8, 10 m
Typennummer: SP101000PADSK
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Spiral hose coupling set, safety coupling NW 7.4, polyamide, hose ø 10x8, PN at 23 °C max. 12 bar, length 10.0 m
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Hose Ø | 10x8 mm |
| Outer spiral Ø | 118 mm |
| Windings | 38 |
| Working length max. | 10 m |
| Max. operating pressure at 23 °C | 12 bar |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[107551] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / galv. steel, G 1/4 IT](/web/image/product.template/191452/image_128/%5B107551%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20galv.%20steel%2C%20G%201-4%20IT?unique=4625c19)
|
Type number: 243.55 ST |
2.96 € | |
![[199979] RIEGLER Push-button safety coupling NW 7,4, G1/4IG](/web/image/product.template/267896/image_128/%5B199979%5D%20RIEGLER%20Push-button%20safety%20coupling%20NW%207%2C4%2C%20G1-4IG?unique=6212878)
|
Typennummer: DKSKIG14 |
18.09 € | |
![[158121] RIEGLER Spiral hose, Fitting, Polyamide, R 1/4, Hose Ø 10x8, 10.0 m](/web/image/product.template/214612/image_128/%5B158121%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%201-4%2C%20Hose%20%C3%98%2010x8%2C%2010.0%20m?unique=216bd10)
|
Typennummer: SP101000PA |
82.00 € | |
