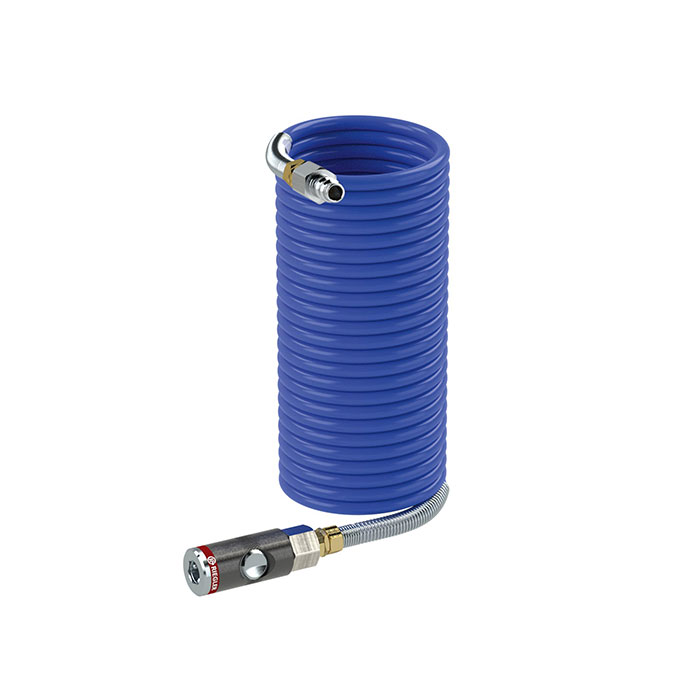

RIEGLER Spiral hose coupling set, Safety coup., PA, Hose Ø 12x9, 2.5 m
Typennummer: SP12250PADSK
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Spiral hose coupling set, Safety coupling I.D. 7.4, Polyamide, Hose Ø 12x9, PN at 23 °C max. 12 bar, Length 2.5 m
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Hose Ø | 12x9 mm |
| Outer spiral Ø | 122 mm |
| Windings | 9 |
| Working length max. | 2.5 m |
| Max. operating pressure at 23 °C | 12 bar |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[158138] RIEGLER Spiral hose coupling set, Safety coupl., PA, Hose Ø 8x6, 2.5 m](/web/image/product.template/214629/image_128/%5B158138%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coupl.%2C%20PA%2C%20Hose%20%C3%98%208x6%2C%202.5%20m?unique=2c37440)
|
Type number: SP8250PADSK |
74.30 € | |
![[158139] RIEGLER Spiral hose coupling set, Safety coupl., PA, Hose Ø 8x6, 5.0 m](/web/image/product.template/214630/image_128/%5B158139%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coupl.%2C%20PA%2C%20Hose%20%C3%98%208x6%2C%205.0%20m?unique=62ef896)
|
Type number: SP8500PADSK |
93.53 € | |
![[158140] RIEGLER Spiral hose coupling set, Safety coupl., PA, Hose Ø 8x6, 7.5 m](/web/image/product.template/214631/image_128/%5B158140%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coupl.%2C%20PA%2C%20Hose%20%C3%98%208x6%2C%207.5%20m?unique=1779a70)
|
Type number: SP8750PADSK |
102.98 € | |
![[158141] RIEGLER Spiral hose coupling set, Safety coupl., PA, Hose Ø 8x6, 10 m](/web/image/product.template/214632/image_128/%5B158141%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coupl.%2C%20PA%2C%20Hose%20%C3%98%208x6%2C%2010%20m?unique=fbe3ad9)
|
Typennummer: SP81000PADSK |
115.69 € | |
![[158145] RIEGLER Spiral hose coupling set, Safety coup., PA, Hose Ø 10x8, 10 m](/web/image/product.template/214636/image_128/%5B158145%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coup.%2C%20PA%2C%20Hose%20%C3%98%2010x8%2C%2010%20m?unique=85e58af)
|
Typennummer: SP101000PADSK |
143.99 € | |
![[158142] RIEGLER Spiral hose coupling set, Safety coup., PA, Hose Ø 10x8, 2.5 m](/web/image/product.template/214633/image_128/%5B158142%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coup.%2C%20PA%2C%20Hose%20%C3%98%2010x8%2C%202.5%20m?unique=8ce8d9f)
|
Typennummer: SP10250PADSK |
83.94 € | |
![[158143] RIEGLER Spiral hose coupling set, Safety coup., PA, Hose Ø 10x8, 5.0 m](/web/image/product.template/214634/image_128/%5B158143%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coup.%2C%20PA%2C%20Hose%20%C3%98%2010x8%2C%205.0%20m?unique=d938b14)
|
Typennummer: SP10500PADSK |
102.42 € | |
![[158144] RIEGLER Spiral hose coupling set, Safety coup., PA, Hose Ø 10x8, 7.5 m](/web/image/product.template/214635/image_128/%5B158144%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coup.%2C%20PA%2C%20Hose%20%C3%98%2010x8%2C%207.5%20m?unique=1cbb2af)
|
Typennummer: SP10750PADSK |
125.65 € | |
![[158149] RIEGLER Spiral hose coupling set, Safety coup., PA, Hose Ø 12x9, 10 m](/web/image/product.template/214640/image_128/%5B158149%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coup.%2C%20PA%2C%20Hose%20%C3%98%2012x9%2C%2010%20m?unique=6139f3e)
|
Typennummer: SP121000PADSK |
155.43 € | |
![[158147] RIEGLER Spiral hose coupling set, Safety coup., PA, Hose Ø 12x9, 5.0 m](/web/image/product.template/214638/image_128/%5B158147%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coup.%2C%20PA%2C%20Hose%20%C3%98%2012x9%2C%205.0%20m?unique=a32b1d1)
|
Typennummer: SP12500PADSK |
130.35 € | |
![[158148] RIEGLER Spiral hose coupling set, Safety coup., PA, Hose Ø 12x9, 7.5 m](/web/image/product.template/214639/image_128/%5B158148%5D%20RIEGLER%20Spiral%20hose%20coupling%20set%2C%20Safety%20coup.%2C%20PA%2C%20Hose%20%C3%98%2012x9%2C%207.5%20m?unique=bbacb5a)
|
Typennummer: SP12750PADSK |
138.72 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

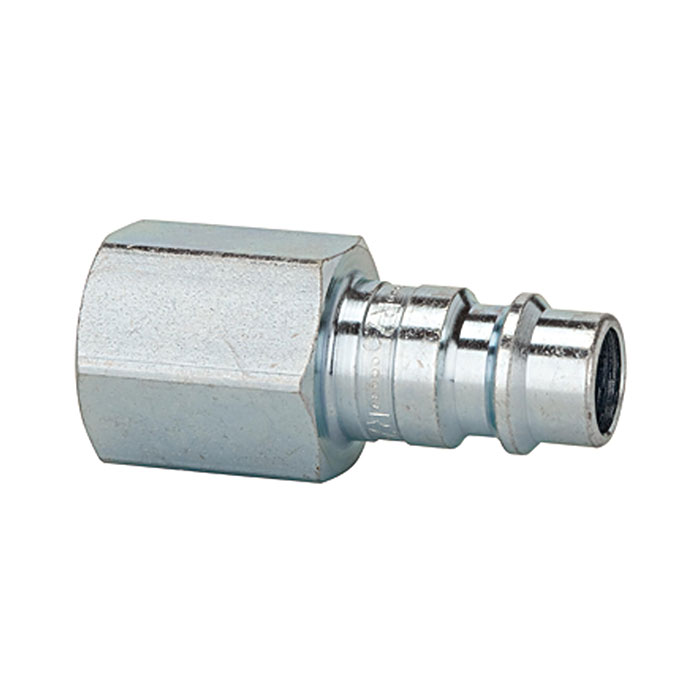

![[107552] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / galv. steel, G 3/8 IT](/web/image/product.template/191453/image_128/%5B107552%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20galv.%20steel%2C%20G%203-8%20IT?unique=16c5b9e)
|
Type number: 243.56 ST |
3.01 € | |

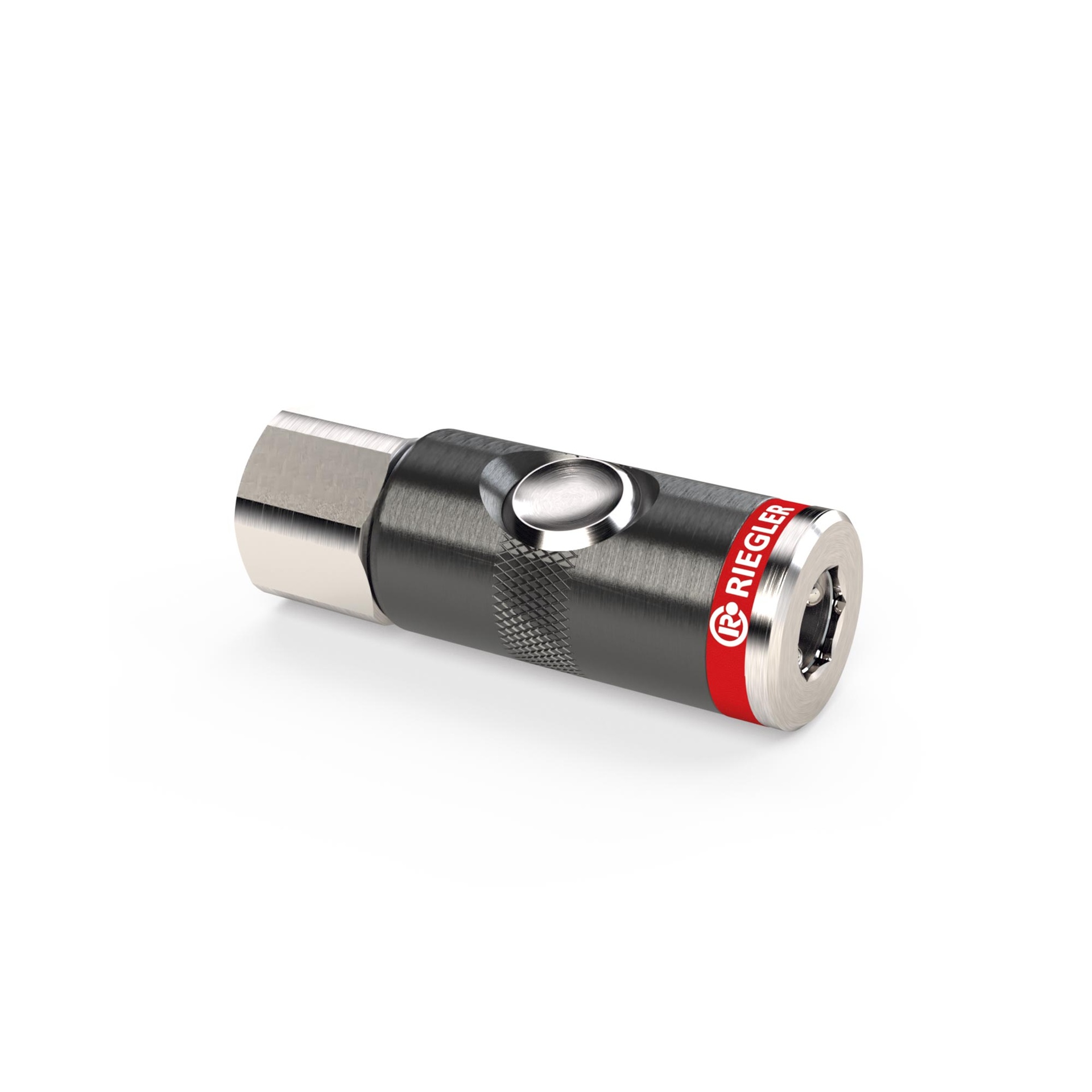

![[199980] RIEGLER Pushbutton safety coupling I.D. 7.4, G 3/8 IT](/web/image/product.template/237053/image_128/%5B199980%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%207.4%2C%20G%203-8%20IT?unique=090f294)
|
Typennummer: DKSKIG38 |
18.18 € | |

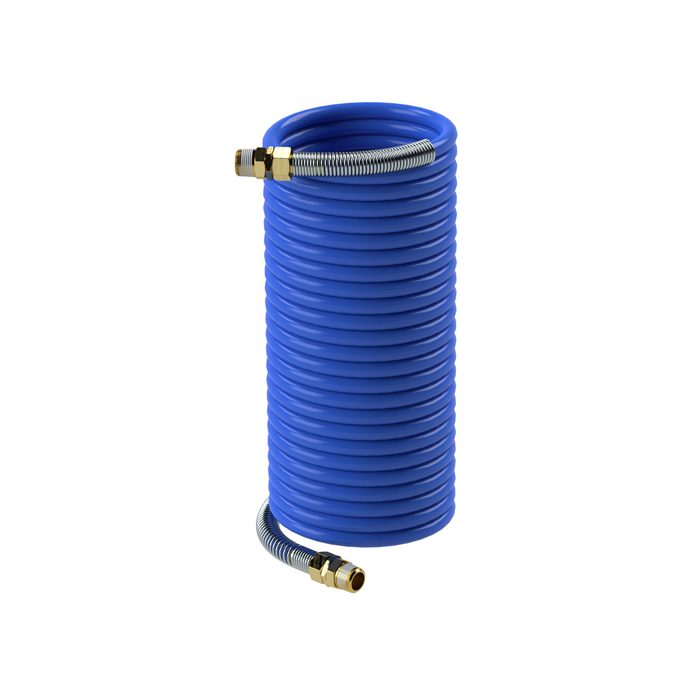

![[158122] RIEGLER Spiral hose, Fitting, Polyamide, R 3/8, Hose Ø 12x9, 2.5 m](/web/image/product.template/214613/image_128/%5B158122%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%203-8%2C%20Hose%20%C3%98%2012x9%2C%202.5%20m?unique=4fb59e2)
|
Typennummer: SP12250PA |
53.86 € | |
