RIEGLER Spiral hose coupling set, Safety coup., PA, Hose Ø 12x9, 5.0 m
Typennummer: SP12500PADSK
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Spiral hose coupling set, safety coupling NW 7.4, polyamide, hose ø 12x9, PN at 23 °C max. 12 bar, length 5.0 m
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Hose Ø | 12x9 mm |
| Outer spiral Ø | 122 mm |
| Windings | 17 |
| Working length max. | 5 m |
| Max. operating pressure at 23 °C | 12 bar |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[107552] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / galv. steel, G 3/8 IT](/web/image/product.template/191453/image_128/%5B107552%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20galv.%20steel%2C%20G%203-8%20IT?unique=5c7f9b7)
|
Type number: 243.56 ST |
2.96 € | |

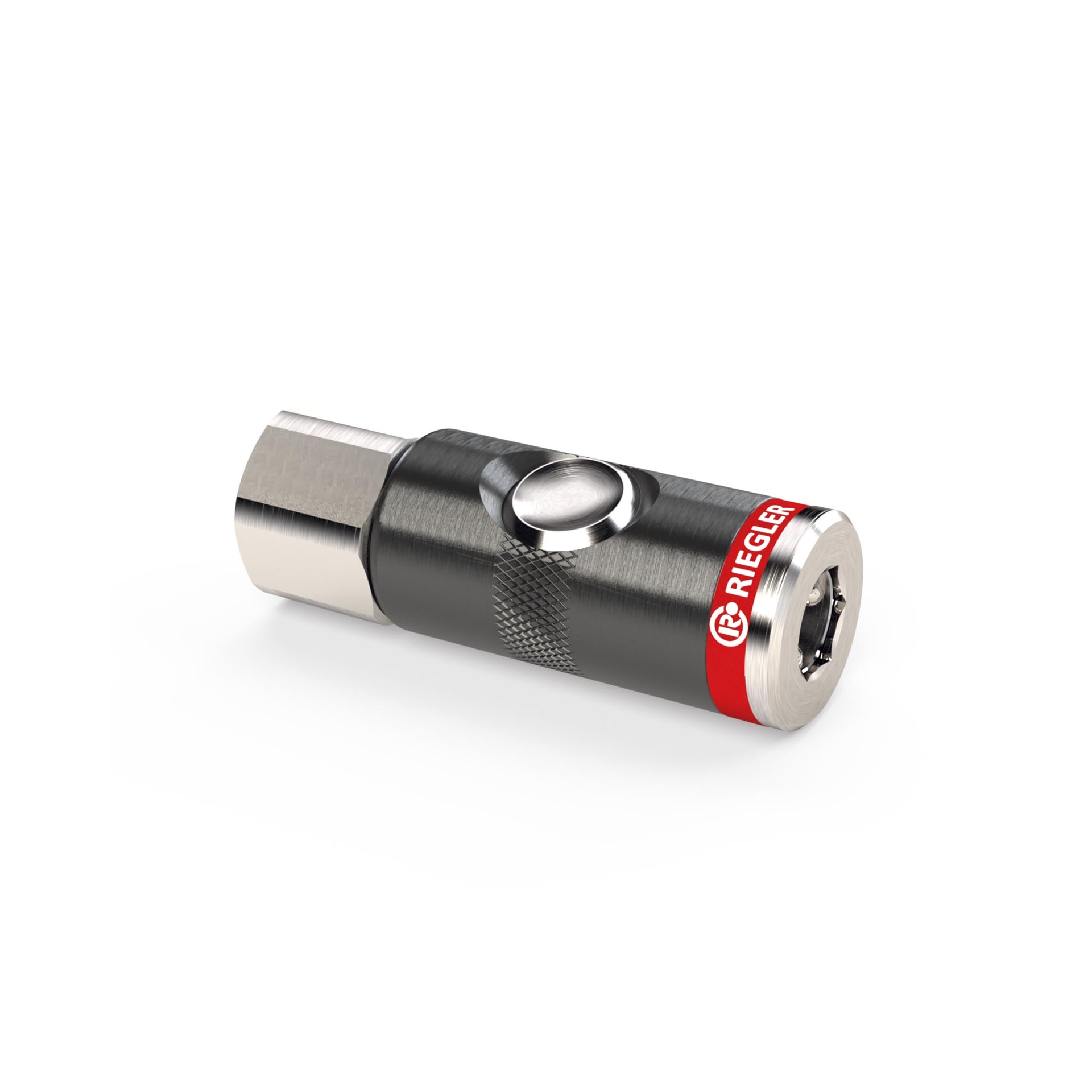

![[199980] RIEGLER Pushbutton safety coupling I.D. 7.4, G 3/8 IT](/web/image/product.template/237053/image_128/%5B199980%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%207.4%2C%20G%203-8%20IT?unique=48dbcc9)
|
Typennummer: DKSKIG38 |
18.09 € | |
![[158123] RIEGLER Spiral hose, Fitting, Polyamide, R 3/8, Hose Ø 12x9, 5.0 m](/web/image/product.template/214614/image_128/%5B158123%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Polyamide%2C%20R%203-8%2C%20Hose%20%C3%98%2012x9%2C%205.0%20m?unique=216bd10)
|
Typennummer: SP12500PA |
69.73 € | |
