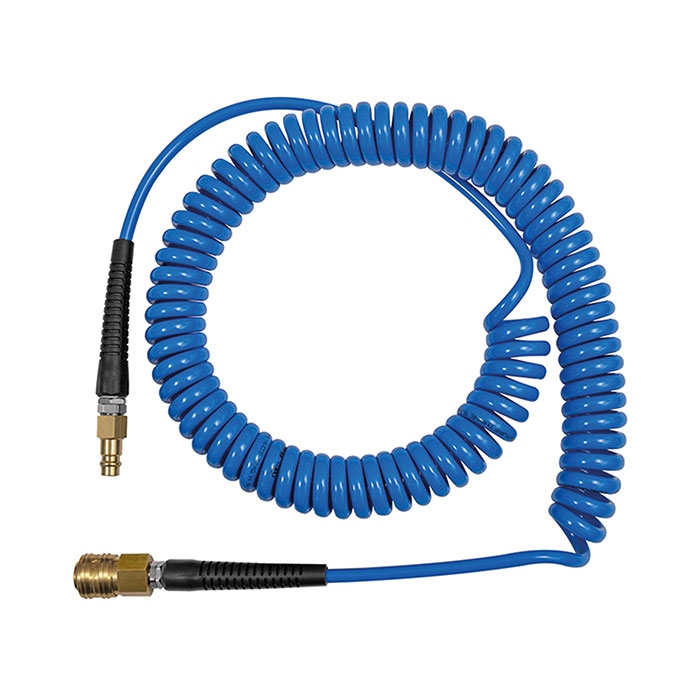

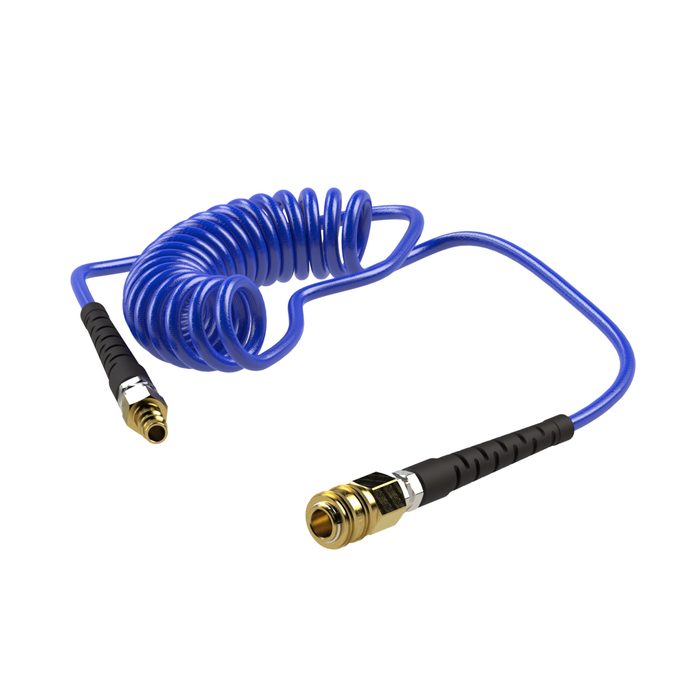

RIEGLER Spiral hose coupling set, Standard, PU, Hose Ø 12x8, Length 6 m
Typennummer: SP12600PUSK
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spiral hose standard coupling set for compressed air distribution - type SP12600PUSK
The RIEGLER spiral hose standard coupling set, PU, hose ø 12x8, 6.0 m conducts compressed air flexibly and reliably from the compressor to the consumer. The operating temperature is between -20 °C and 60 °C. Hose Ø 12x8 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Hose Ø | 12x8 mm |
| Windings | 31 |
| Working length max. | 6 m |
| outer winding Ø | 82 mm |
| Max. operating pressure at 23 °C | 10 bar |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[107243] RIEGLER Nipple for couplings I.D. 7.2 - 7.8, bright brass, G 3/8 IT](/web/image/product.template/176300/image_128/%5B107243%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8%2C%20bright%20brass%2C%20G%203-8%20IT?unique=429b8fa)
|
Type number: 243.56 |
0.94 € | |
![[115632] RIEGLER Quick-connect coupling I.D. 7.2 »connect line«, G 3/8 IT](/web/image/product.template/200391/image_128/%5B115632%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.2%20%C2%BBconnect%20line%C2%AB%2C%20G%203-8%20IT?unique=4fe71c4)
|
Type number: 243.22-E |
2.89 € | |
![[158165] RIEGLER Spiral hose, Fitting, Kink protection spring, PU, Hose Ø 12x8, 6m](/web/image/product.template/214650/image_128/%5B158165%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Kink%20protection%20spring%2C%20PU%2C%20Hose%20%C3%98%2012x8%2C%206m?unique=c2ce877)
|
Typennummer: SP12600PU |
94.64 € | |
