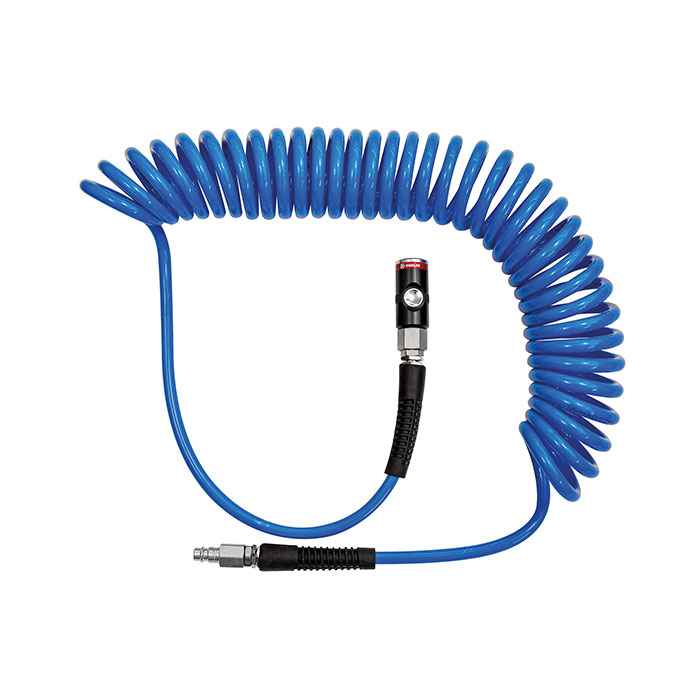

RIEGLER Spiral hose coupl. set, Push button coupl., PU, Hose Ø 12x8, 6 m
Typennummer: SP12600PUDSK
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Spiral hose coupling set, push-button safety coupling NW 7.2, PU, hose ø 12x8, PN at 23 °C max. 10 bar, length 6.0 m
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Hose Ø | 12x8 mm |
| Windings | 31 |
| Working length max. | 6 m |
| outer winding Ø | 82 mm |
| Max. operating pressure at 23 °C | 10 bar |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[107552] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / galv. steel, G 3/8 IT](/web/image/product.template/191453/image_128/%5B107552%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20galv.%20steel%2C%20G%203-8%20IT?unique=9fd4551)
|
Type number: 243.56 ST |
2.96 € | |
![[199980] RIEGLER Pushbutton safety coupling I.D. 7.4, G 3/8 IT](/web/image/product.template/237053/image_128/%5B199980%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%207.4%2C%20G%203-8%20IT?unique=fc06a87)
|
Typennummer: DKSKIG38 |
18.09 € | |
![[158165] RIEGLER Spiral hose, Fitting, Kink protection spring, PU, Hose Ø 12x8, 6m](/web/image/product.template/214650/image_128/%5B158165%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Kink%20protection%20spring%2C%20PU%2C%20Hose%20%C3%98%2012x8%2C%206m?unique=ed5d6cf)
|
Typennummer: SP12600PU |
94.64 € | |
