RIEGLER Spiral hose coupl. set, Push button coupl., PU, Hose Ø 12x8, 10 m
Typennummer: SP121000PUDSK
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

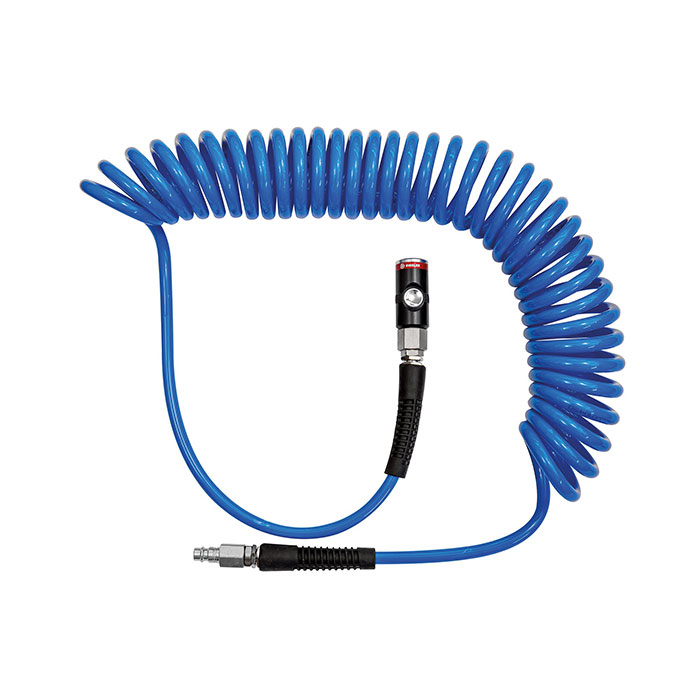

RIEGLER Spiral hose push-button safety coupling set for compressed air distribution - type SP121000PUDSK
The RIEGLER spiral hose push-button safety coupling set, PU, ø 12x8, 10 m conducts compressed air flexibly and reliably from the compressor to the consumer. The operating temperature is between -20 °C and 60 °C. Hose Ø 12x8 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Hose Ø | 12x8 mm |
| Windings | 54 |
| Working length max. | 10 m |
| outer winding Ø | 82 mm |
| Max. operating pressure at 23 °C | 10 bar |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

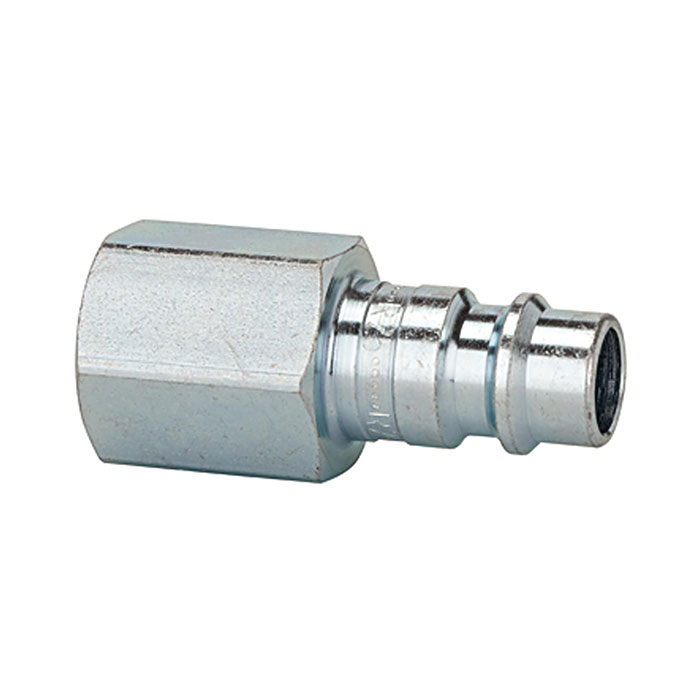

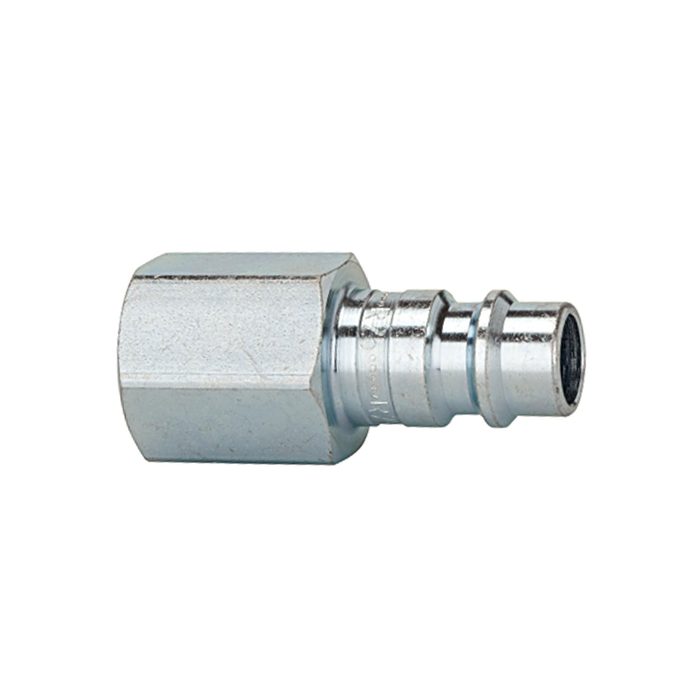

![[107552] RIEGLER Nipple for I.D. 7.2 - 7.8, hardened / galv. steel, G 3/8 IT](/web/image/product.template/191453/image_128/%5B107552%5D%20RIEGLER%20Nipple%20for%20I.D.%207.2%20-%207.8%2C%20hardened%20-%20galv.%20steel%2C%20G%203-8%20IT?unique=791651b)
|
Type number: 243.56 ST |
2.96 € | |

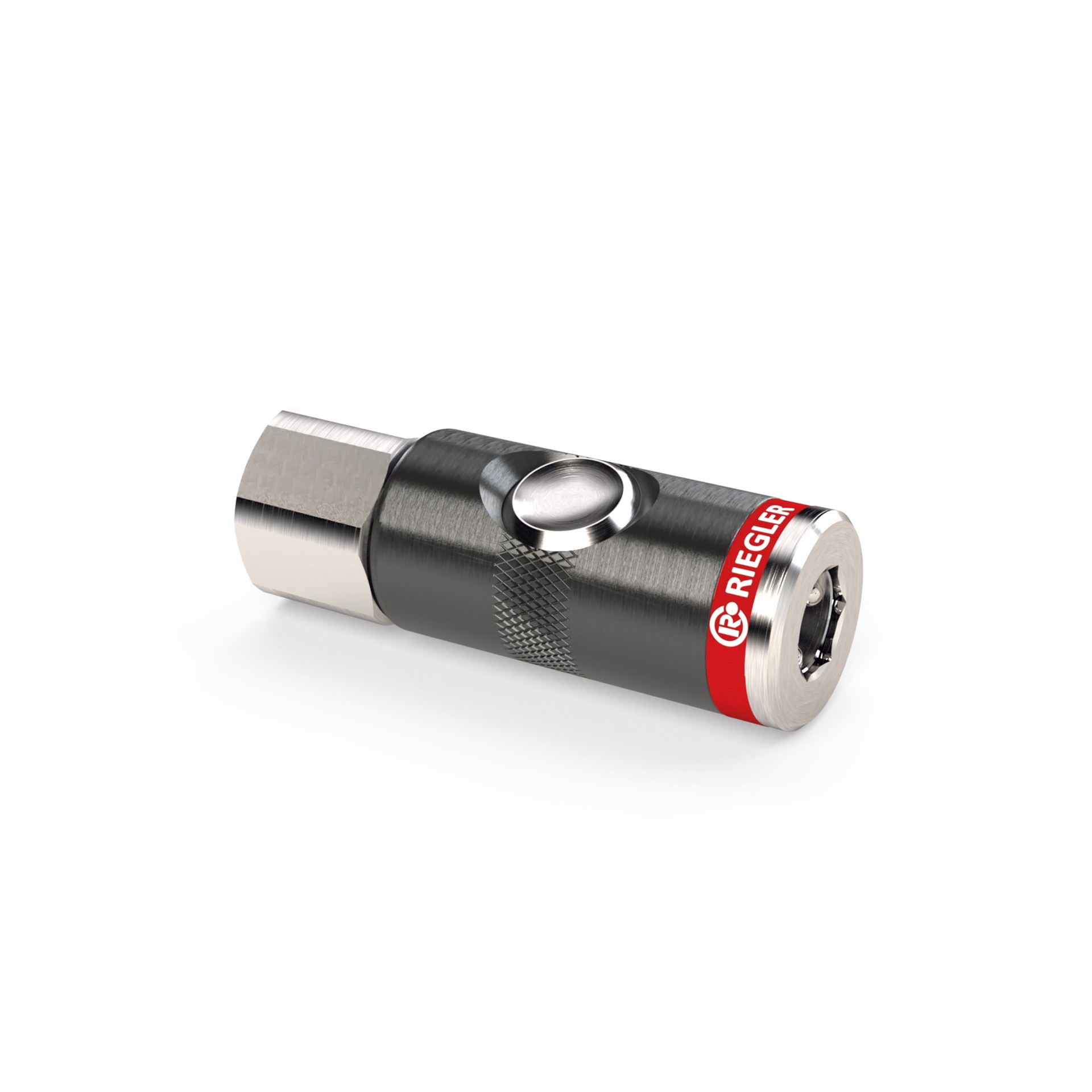

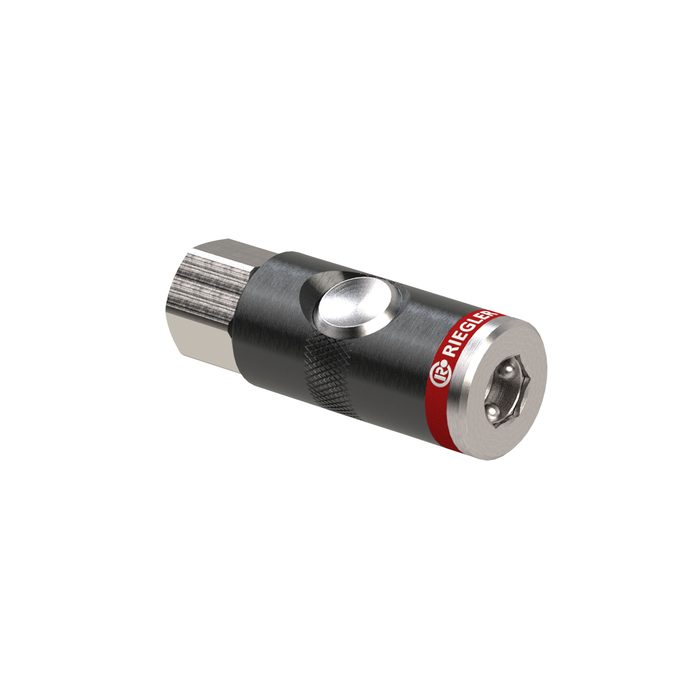

![[199980] RIEGLER Pushbutton safety coupling I.D. 7.4, G 3/8 IT](/web/image/product.template/237053/image_128/%5B199980%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%207.4%2C%20G%203-8%20IT?unique=e14cffb)
|
Typennummer: DKSKIG38 |
18.09 € | |
![[158167] RIEGLER Spiral hose, Fitting, Kink protection spring, PU, Hose Ø12x8, 10m](/web/image/product.template/214652/image_128/%5B158167%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Kink%20protection%20spring%2C%20PU%2C%20Hose%20%C3%9812x8%2C%2010m?unique=dc3dfa3)
|
Typennummer: SP121000PU |
134.90 € | |
