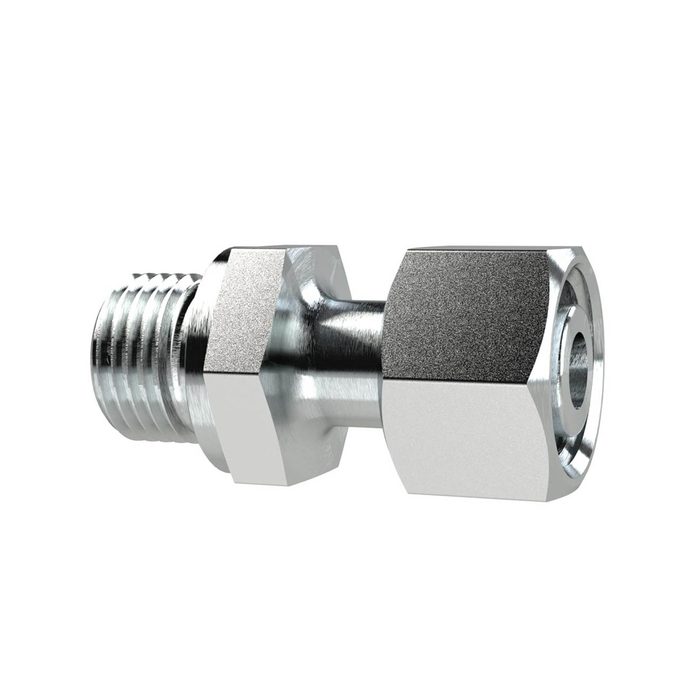

RIEGLER Adjustable male conn., M26x1.5o., Pipe ext.Ø22, galvanised steel
Typennummer: EGEM2622LST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-in unit made of galvanized steel (DIN 2353), for pneumatic installation - type EGEM2622LST
The RIEGLER screw-in fitting, M26x1.5a., pipe Ø22mm, galvanized steel connects compressed air and pneumatic lines securely and tightly. The housing is made of galvanized steel (DIN 2353). Connection thread M26x1.5 - suitable for common industry standards. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Material | Galvanized steel (DIN 2353) |
| Thread | M26x1.5 |
| SW 1 | 32 mm |
| SW 2 | 36 mm |
| Tube outer Ø | 22 mm |
| PN | 160 bar |
| Female nut thread | M30x2.0 |
| L1 | 64.5 mm |
| L2 | 16 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
