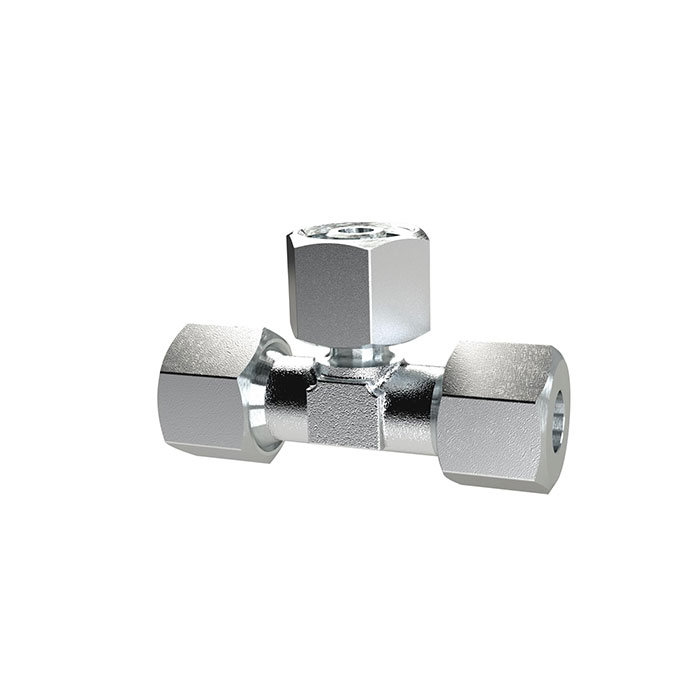

RIEGLER Adjustable T screw fitting, Pipe ext. Ø 25, galvanised steel
Typennummer: ETAV25SST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Inst. T-connection fitting, sealing cone, 360° rotatable, nut M36x2.0 i., outer pipe Ø 25 mm, PN max. 400 bar, galvanized steel
| Material | Galvanized steel (DIN 2353) |

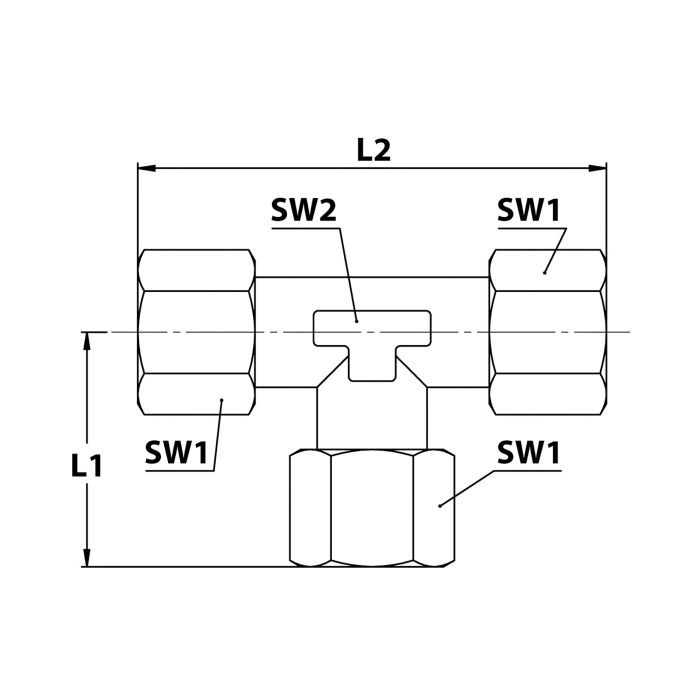

| SW 1 | 46 mm |
| SW 2 | 36 mm |
| Tube outer Ø | 25 mm |
| PN | 400 bar |
| Female nut thread | M36x2.0 |
| L1 | 108 mm |
| L2 | 50 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159025] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 10, galvanised steel](/web/image/product.template/214894/image_128/%5B159025%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2010%2C%20galvanised%20steel?unique=2497c17)
|
Typennummer: ETAV10SST |
11.41 € | |
![[159026] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 12, galvanised steel](/web/image/product.template/214895/image_128/%5B159026%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2012%2C%20galvanised%20steel?unique=fcce60e)
|
Typennummer: ETAV12SST |
13.09 € | |
![[159027] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 14, galvanised steel](/web/image/product.template/214896/image_128/%5B159027%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2014%2C%20galvanised%20steel?unique=cad7bd4)
|
Typennummer: ETAV14SST |
20.13 € | |
![[159028] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 16, galvanised steel](/web/image/product.template/214897/image_128/%5B159028%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2016%2C%20galvanised%20steel?unique=0905efd)
|
Typennummer: ETAV16SST |
19.08 € | |
![[159029] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 20, galvanised steel](/web/image/product.template/214898/image_128/%5B159029%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%2020%2C%20galvanised%20steel?unique=8ba2b65)
|
Typennummer: ETAV20SST |
31.18 € | |
![[159023] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 6, galvanised steel](/web/image/product.template/214892/image_128/%5B159023%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%206%2C%20galvanised%20steel?unique=bc0d317)
|
Typennummer: ETAV6SST |
9.22 € | |
![[159024] RIEGLER Adjustable T screw fitting, Pipe ext. Ø 8, galvanised steel](/web/image/product.template/214893/image_128/%5B159024%5D%20RIEGLER%20Adjustable%20T%20screw%20fitting%2C%20Pipe%20ext.%20%C3%98%208%2C%20galvanised%20steel?unique=0ddf73a)
|
Typennummer: ETAV8SST |
10.13 € | |
