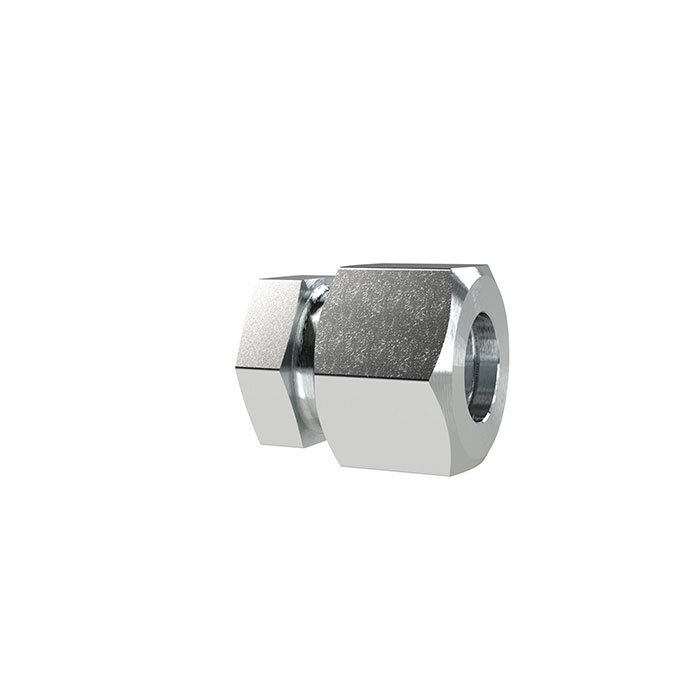

RIEGLER Screw plug, Pipe exterior Ø 12 mm, PN max. 315 bar
Typennummer: VSS12LST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw plug made of galvanized steel (DIN 2353), for pneumatic installation - type VSS12LST
The RIEGLER screw plug, pipe outer Ø 12 mm, PN max. 315 bar is a high-quality accessory from the RIEGLER range. The housing is made of galvanized steel (DIN 2353). Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Material | Galvanized steel (DIN 2353) |
| Tube outer Ø | 12 mm |
| PN | 315 bar |
| L1 | 25 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
