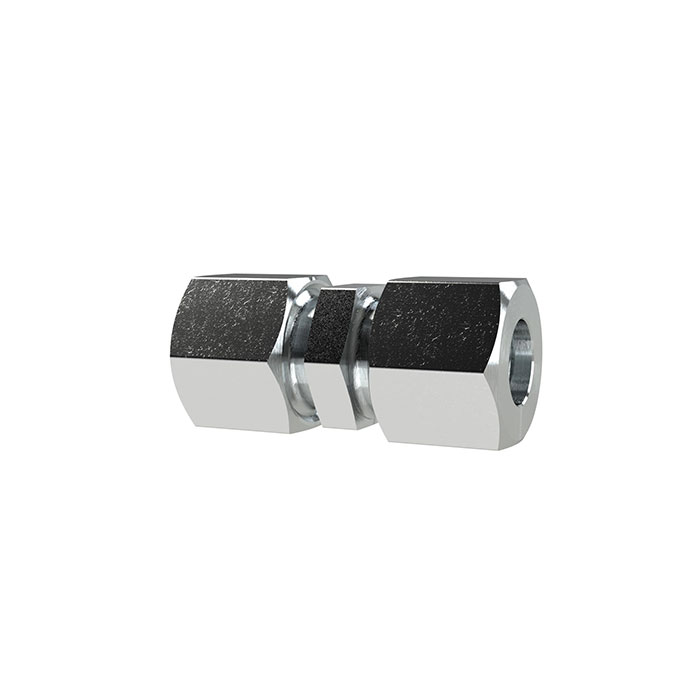

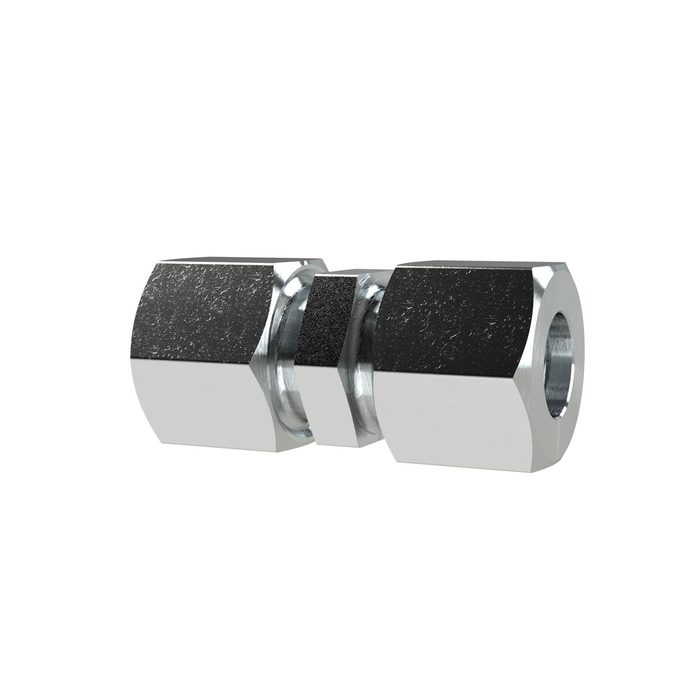

RIEGLER Straight fitting, Pipe ext.Ø10 mm, galvanised steel, PN bar 100
Typennummer: GV10SLST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight screw fitting made of galvanized steel (DIN 2353), for pneumatic installation - type GV10SLST
The RIEGLER straight fitting, pipe outer Ø 10 mm, galvanized steel, PN bar 100 creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 17 mm |
| SW 2 | 14 mm |
| Tube outer Ø | 10 mm |
| PN | 100 bar |
| L1 | 35 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112143] RIEGLER Straight fitting, Pipe exterior Ø 4 mm, galvanised steel](/web/image/product.template/184038/image_128/%5B112143%5D%20RIEGLER%20Straight%20fitting%2C%20Pipe%20exterior%20%C3%98%204%20mm%2C%20galvanised%20steel?unique=9556e97)
|
Type number: V 50 |
1.95 € | |
![[112144] RIEGLER Straight fitting, Pipe exterior Ø 5 mm, galvanised steel](/web/image/product.template/184039/image_128/%5B112144%5D%20RIEGLER%20Straight%20fitting%2C%20Pipe%20exterior%20%C3%98%205%20mm%2C%20galvanised%20steel?unique=65bcab3)
|
Type number: V 51 |
2.43 € | |
![[112145] RIEGLER Straight fitting, Pipe exterior Ø 6 mm, galvanised steel](/web/image/product.template/184040/image_128/%5B112145%5D%20RIEGLER%20Straight%20fitting%2C%20Pipe%20exterior%20%C3%98%206%20mm%2C%20galvanised%20steel?unique=4f5ef63)
|
Type number: V 52 |
2.43 € | |
![[112146] RIEGLER Straight fitting, Pipe exterior Ø 8 mm, galvanised steel](/web/image/product.template/184041/image_128/%5B112146%5D%20RIEGLER%20Straight%20fitting%2C%20Pipe%20exterior%20%C3%98%208%20mm%2C%20galvanised%20steel?unique=ede7f7b)
|
Type number: V 53 |
2.19 € | |
![[159709] RIEGLER Straight fitting, Pipe ext.Ø12 mm, galvanised steel, PN bar 100](/web/image/product.template/216104/image_128/%5B159709%5D%20RIEGLER%20Straight%20fitting%2C%20Pipe%20ext.%C3%9812%20mm%2C%20galvanised%20steel%2C%20PN%20bar%20100?unique=cc90f11)
|
Typennummer: GV12SLST |
3.33 € | |
